5 - 302 WiNG 5.5 Access Point System Reference Guide

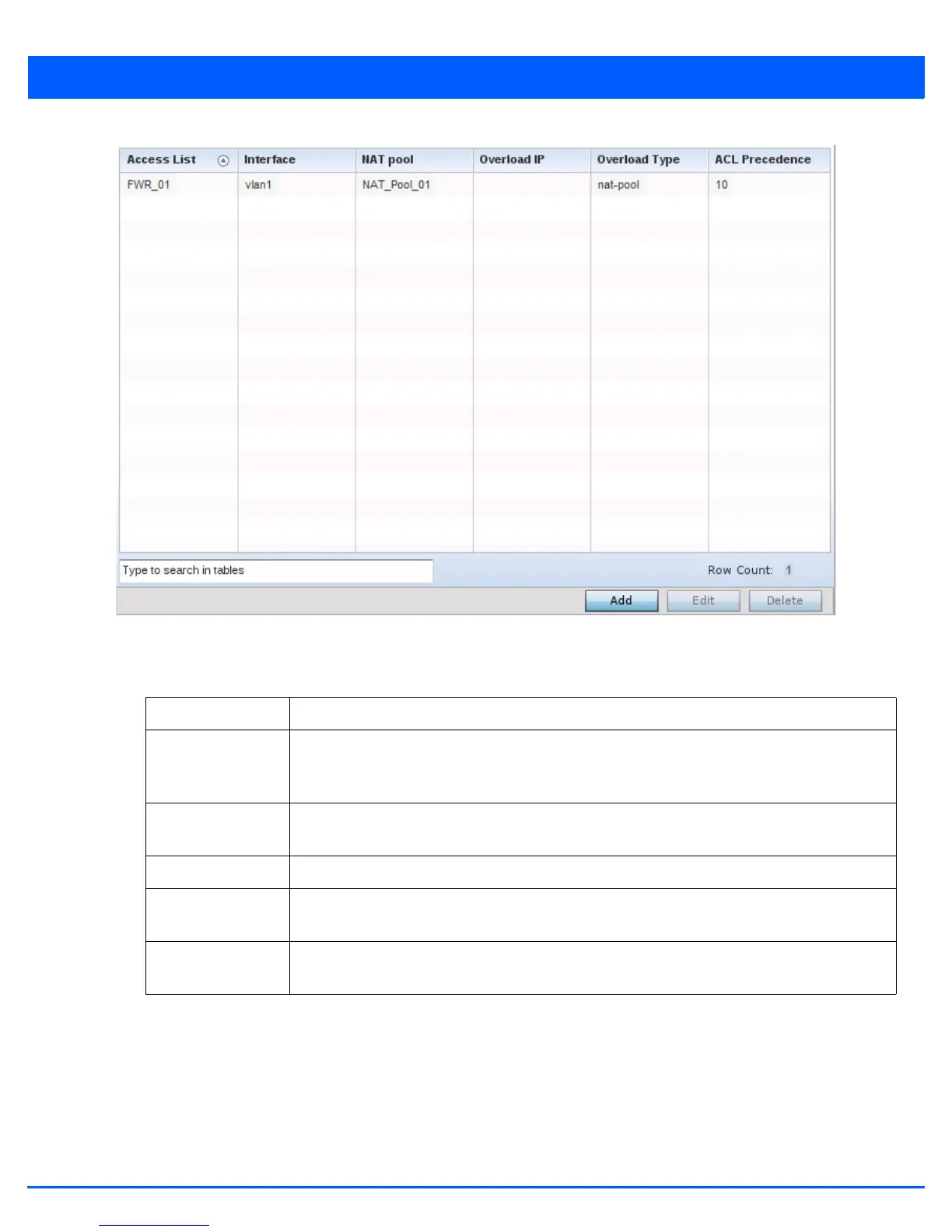

Figure 5-194 Profile Override - Security - Bridge NAT screen
5. Review the following Bridge NAT configurations to determine whether a new Bridge NAT configuration requires creation
or an existing configuration overridden or removed:
6. Select Add to create a new Bridge VLAN configuration, Edit to modify or override an existing configuration or Delete to
remove a configuration.
ACL Lists the ACL applying IP address access/deny permission rules to the Bridge NAT configuration.
Interface Lists the communication medium (outgoing layer 3 interface) between source and destination
points. This is either the access point’s pppoe1 or w wan1 interface or the VLAN used as the
redirection interface between the source and destination.
NAT Pool Lists the names of existing NAT pools used with the Bridge NAT configuration. This displays only
when Overload Type is NAT Pool.
Overload IP Lists the address used globally and collectively for numerous local addresses.
Overload Type Lists the overload type used with the listed IP ACL rule. Set as either NAT Pool, One Global
Address or Interface IP Address.
ACL Precedence Lists the administrator assigned priority set for the ACL. The lower the value listed, the higher
the priority assigned to this ACL.
