8 - 14 WiNG 5.5 Access Point System Reference Guide

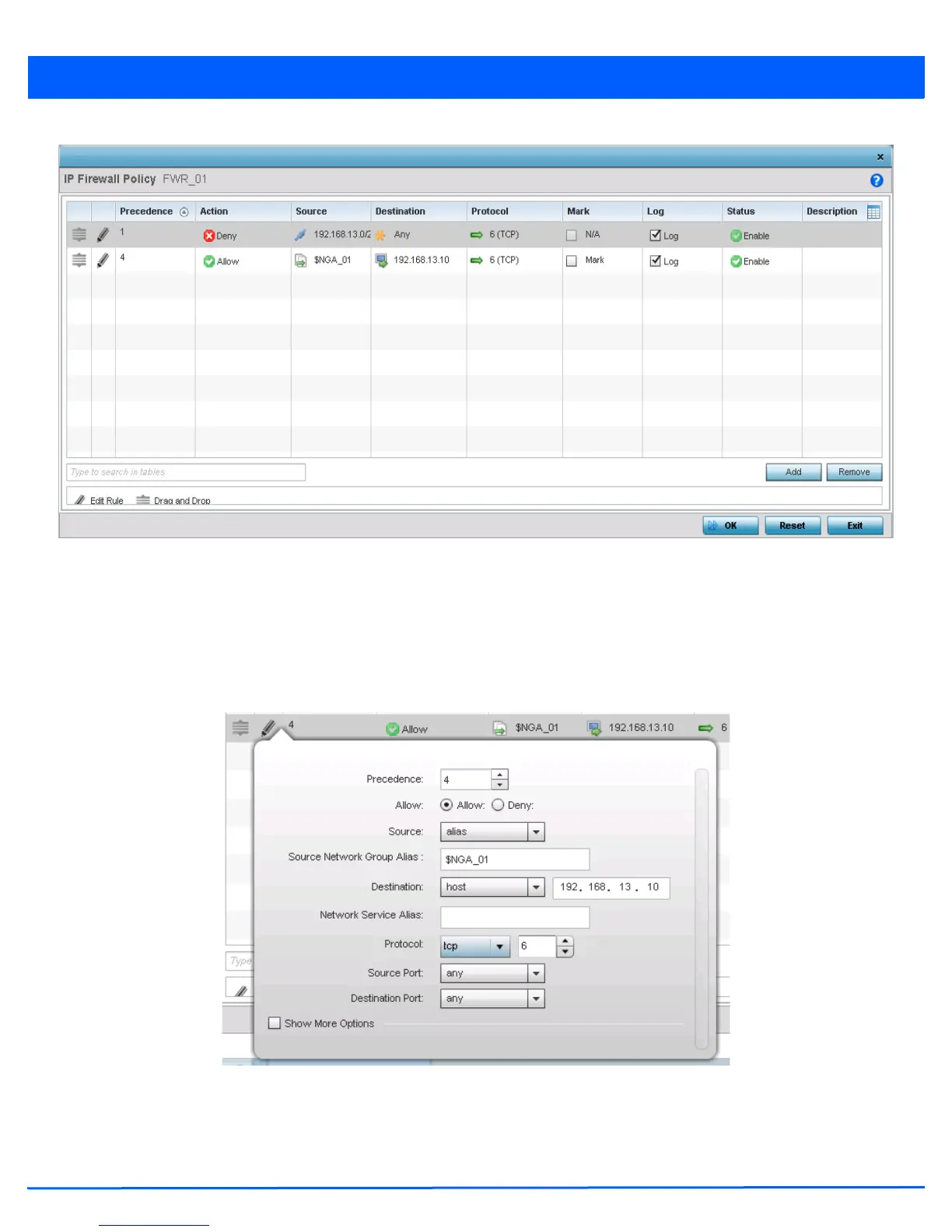

Figure 8-5 IP Firewall Rules screen - Adding a new rule
6. If adding a new rule, enter a name up to 32 characters.
7. Select Add to add a new firewall rule.
8. IP firewall rule configurations can either be modified as a collective group of variables or selected and updated individually
as their filtering attributes require a more refined update.
a. Select the Edit Rule icon to the left of a particular IP firewall rule configuration to update its parameters collectively.
Figure 8-6 WLAN Security - IP Firewall Rules - Edit Rule screen
b. Click the icon within the Description column (top right-hand side of the screen) and select IP filter values as needed
to add criteria into the configuration of the IP ACL.
