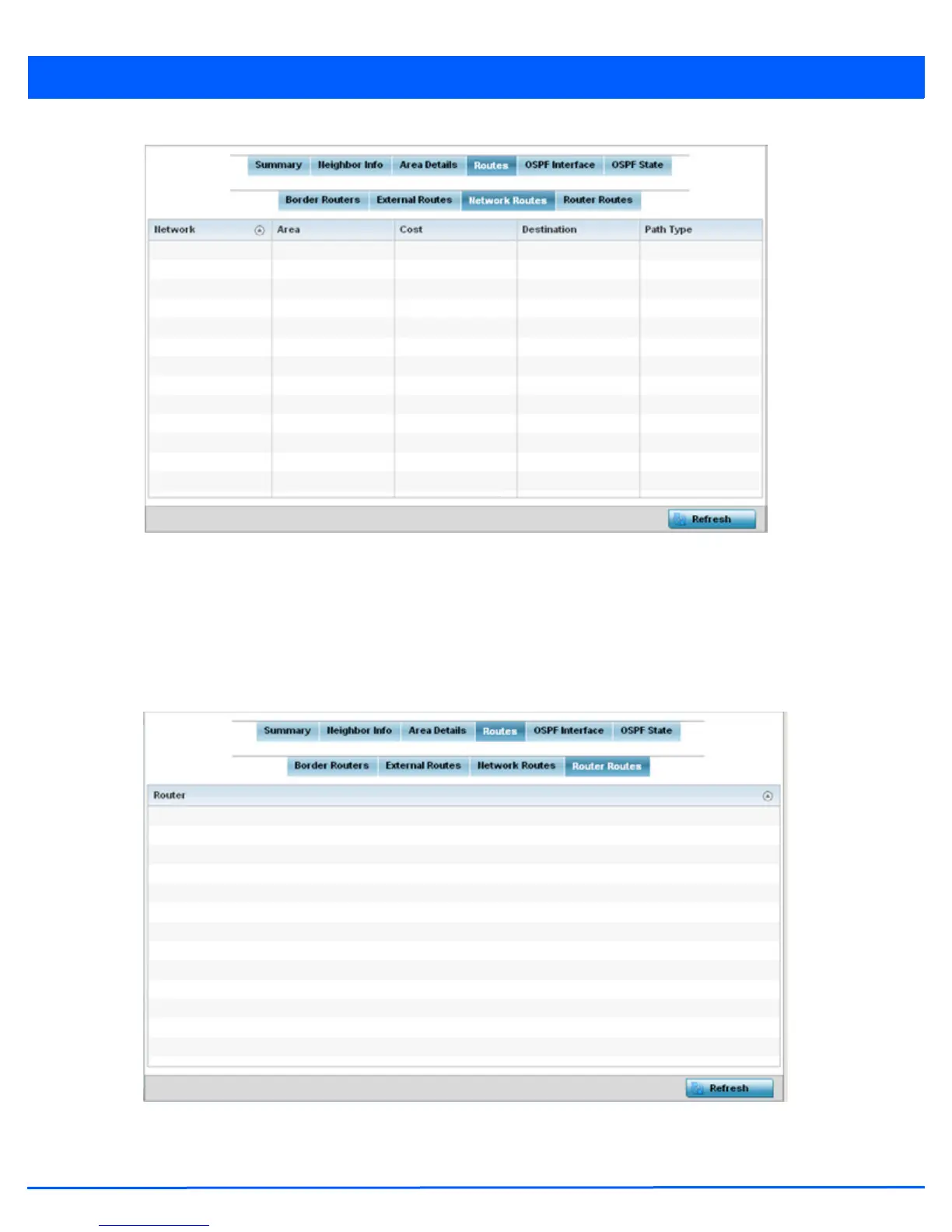

Figure 13-54 Access Point - OSPF Network Routes tab
Network routes support more than two routers, with the capability of addressing a single physical message to all attached
routers (broadcast). Neighboring routers are discovered dynamically using OSPF hello messages. This use of the hello
protocol takes advantage of broadcast capability. An OSPF network route makes further use of multicast capabilities, if they
exist. Each pair of routers on the network is assumed to communicate directly.
The Network Routes tab displays the network name, impacted OSPF area, cost, destination and path type.
7. Select the Router Routes tab.
Figure 13-55 Access Point - OSPF Router Routes tab
An internal (or router) route connects to one single OSPF area. All of its interfaces connect to the area in which it is located
and does not connect to any other area.
