5 Mounting
Maschinenfabrik Reinhausen 201440 3550953/00 ENTAPCON® 230 pro

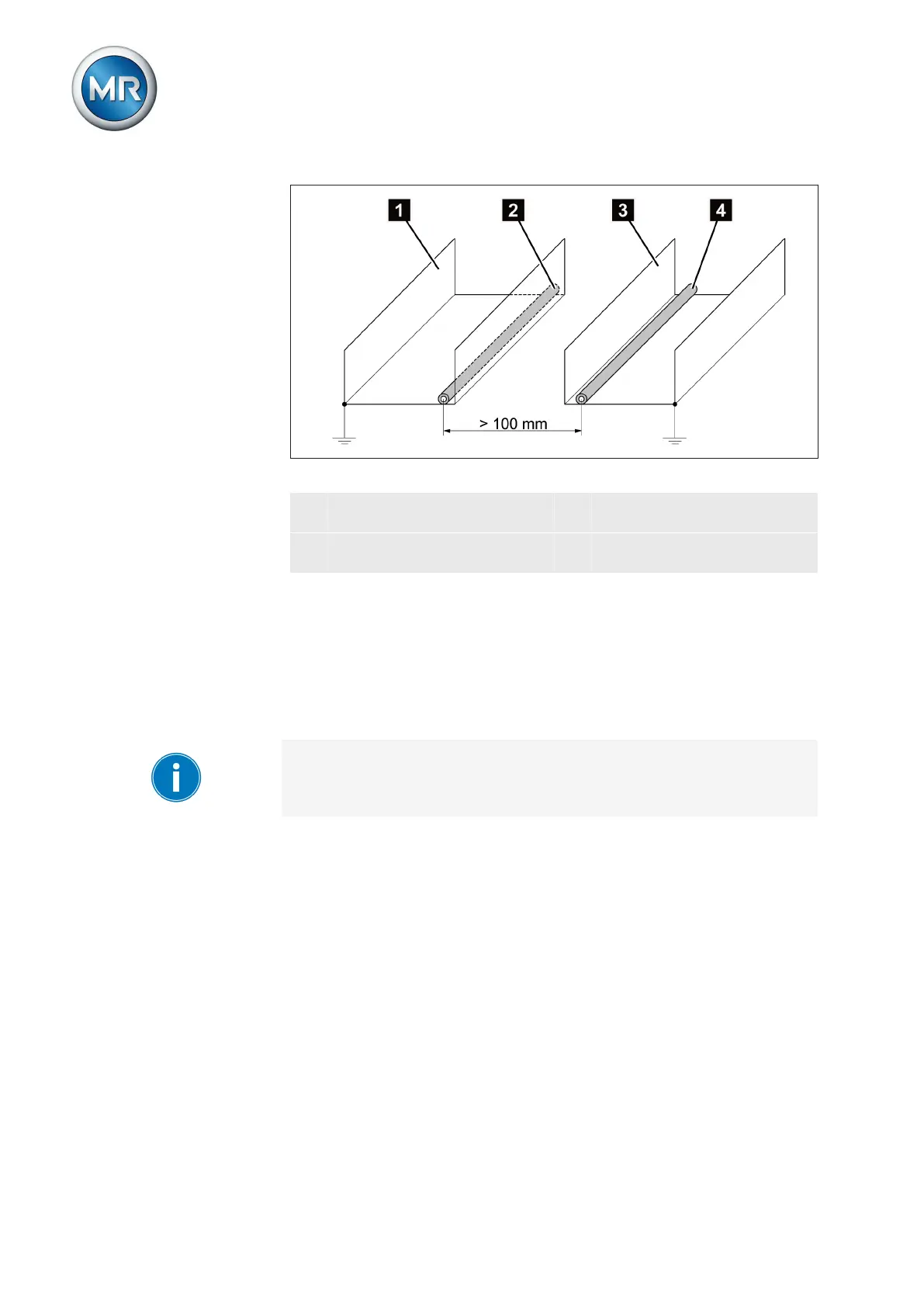

Figure 26: Recommended wiring
1 Cable duct for lines causing
interference
3 Cable duct for lines suscepti-
ble to interference
2 Interference-causing line (e.g.
power line)
4 Line susceptible to interfer-
ence (e.g. signal line)
▪ Short-circuit and ground reserve lines.
▪ The device must never be connected using multi-pin collective cables.
▪ Signal lines must be routed in a shielded cable.
▪ The individual conductors (outgoing conductors/return conductors) in
the cable core must be twisted in pairs.
▪ The shield must be fully (360º) connected to the device or a nearby
ground rail.
Using "pigtails" may limit the effectiveness of the shielding. Connect close-
fitting shield to cover all areas.
