5 Mounting
Maschinenfabrik Reinhausen 201442 3550953/00 ENTAPCON® 230 pro

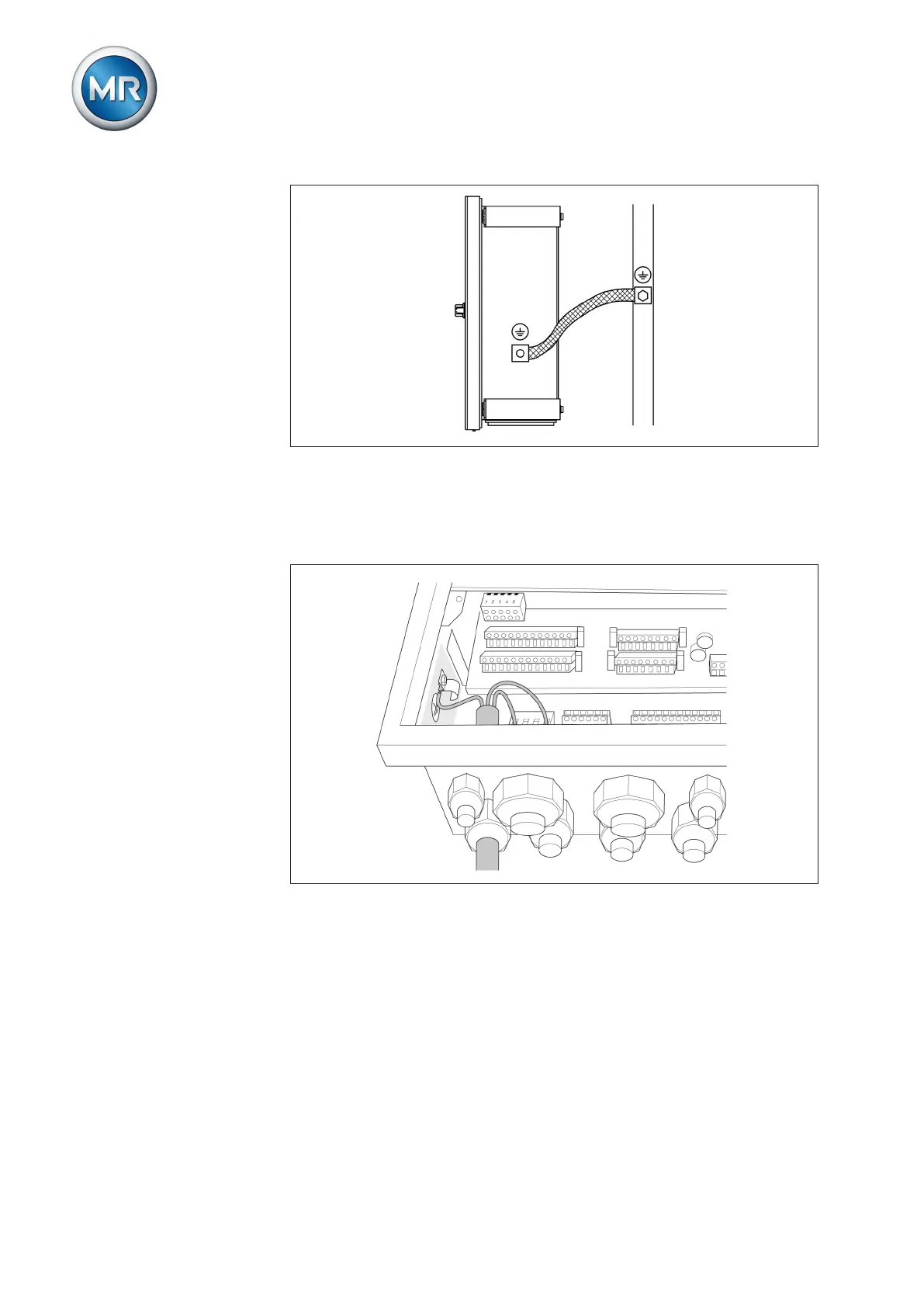

Figure 28: Ground strap connection
Ground connection for wiring inside the device
The diagram below shows the ground connection for wiring inside the de-
vice.
Figure 29: Grounding inside the device
Information about shielding the CAN bus
In order for the CAN bus to operate faultlessly, you have to connect the
shielding using one of the following variants. If neither connection variant is
possible, we would recommend using fiber optic cables. Fiber optic cables
decouple the voltage regulators and are not sensitive to electromagnetic in-
terferences (surge and burst).
5.3.3.4
