7 Functions and settings
Maschinenfabrik Reinhausen 2014 873550953/00 EN TAPCON® 230 pro
To set line drop compensation correctly, you need to calculate the ohmic
and inductive voltage drop in V with reference to the secondary side of the
voltage transformer. You also need to correctly set the transformer circuit
used.

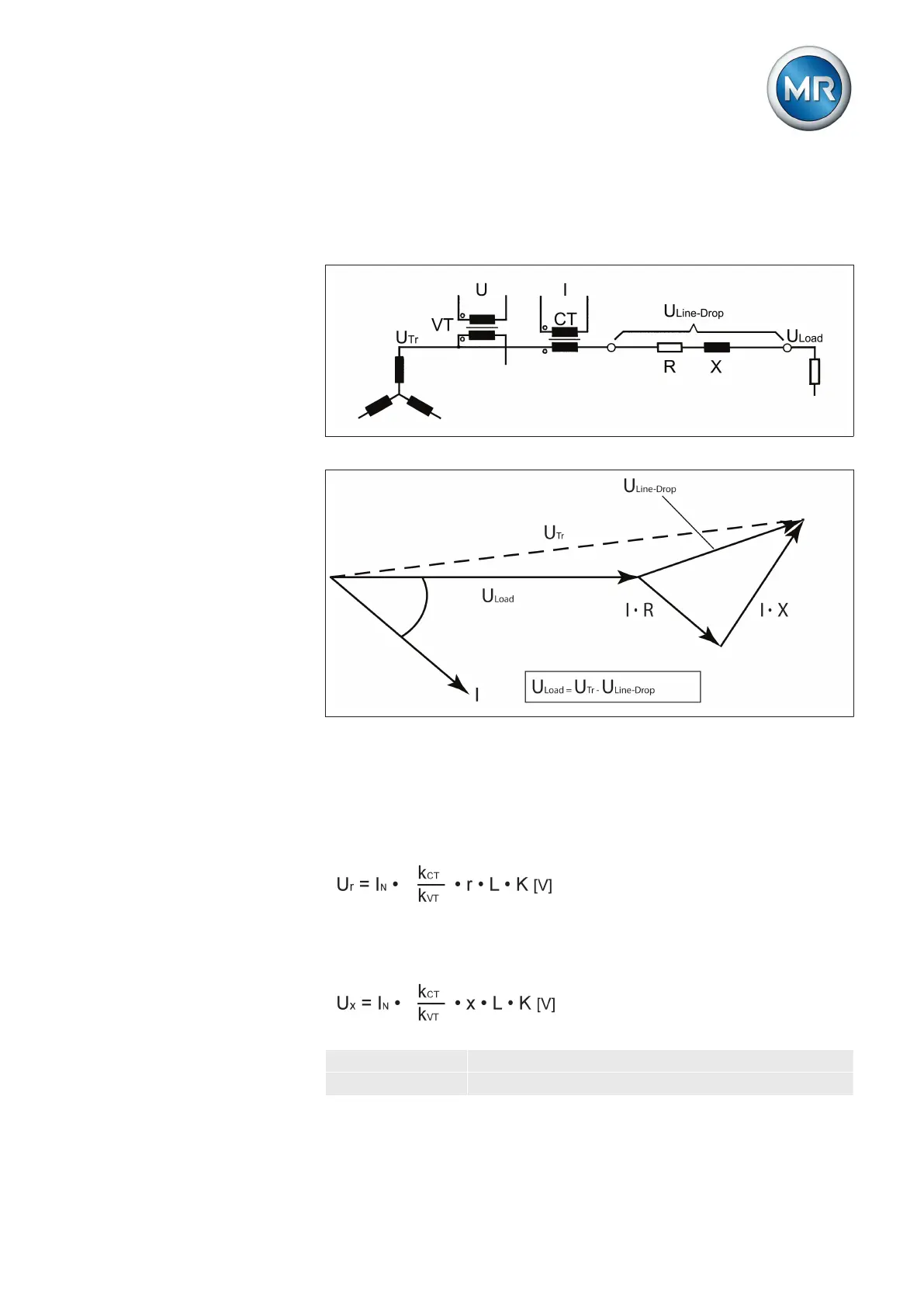

Figure 49: Line drop compensation equivalent circuit
Figure 50: Illustration showing line drop compensation
You can calculate the ohmic and inductive voltage drop using the following
formulas. This voltage drop calculation relates to the relativized voltage on
the secondary side of the voltage transformer.
Formula for calculating the ohmic voltage drop:
Formula for calculating the inductive voltage drop:
U
r
Ohmic line parameter in Ω/km
U
x
Inductive line parameter in Ω/km
