7 Functions and settings
Maschinenfabrik Reinhausen 2014 127222/08 EN TAPCON® 240

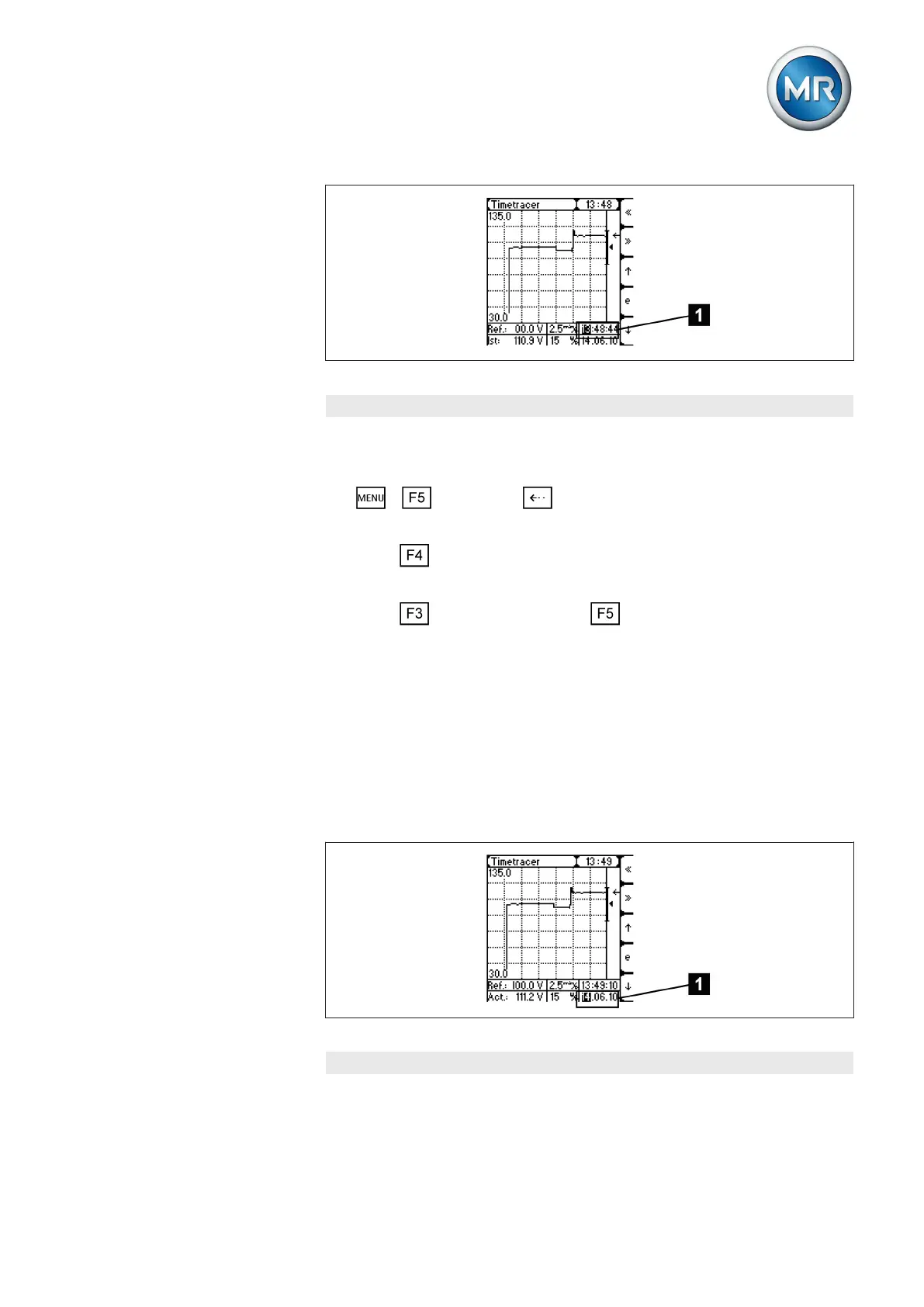

Figure 83: Retrace time
1 Time
To move the sequence to a precise time, proceed as follows:
1. > Info > Press until the desired display appears.
ð Time plotter.
2. Press until the setting box for the retrace time is highlighted.
ð The setting box is now highlighted and the value can be changed.
3. Press to advance the time or to move it back.
ð The retrace time is set. The sequence for the specified time appears in
the display.
Setting retrace date
This function allows you to display the sequences of measured values for a
time or date you have selected in order to trace how voltage has behaved in
the past.
Any date between the present date and the oldest time in the memory can
be set. The date is entered in the following format: DD.MM.YY
Figure 84: Retrace date
1 Date
7.13.5.5
