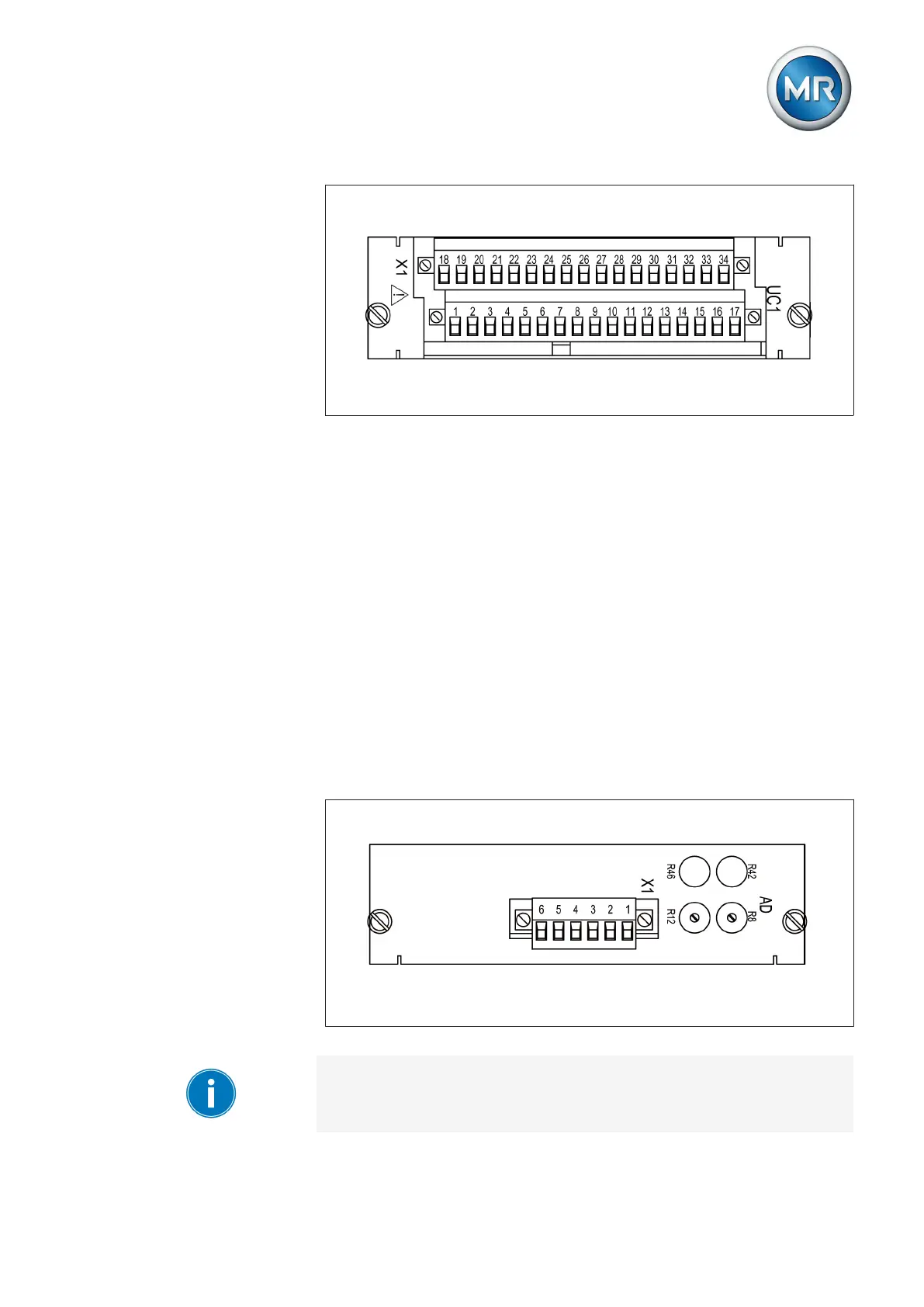

Figure 13: UC1 card
Analog inputs and outputs
To record and output analog signals, the device may be equipped with the
following assemblies:
▪ AD card
▪ AD8 card
▪ AN card
AD card
The analog input card has 1 input or with an extension card 2 inputs that can
record the following analog signals:
▪ 0...±10 V
▪ 0...±10 mA
▪ 0...±20 mA
▪ Resistance measurement (50...2 000 Ω)
Figure 14: AD card
Only use the R8/R12 and R42/R46 rotary potentiometers to calibrate the re-
sistance measurement.
