3 Product description
Maschinenfabrik Reinhausen 201426 222/08 ENTAPCON® 240
AD8 card
The analog input card has 8 inputs that can record the analog signals
(4...20mA).

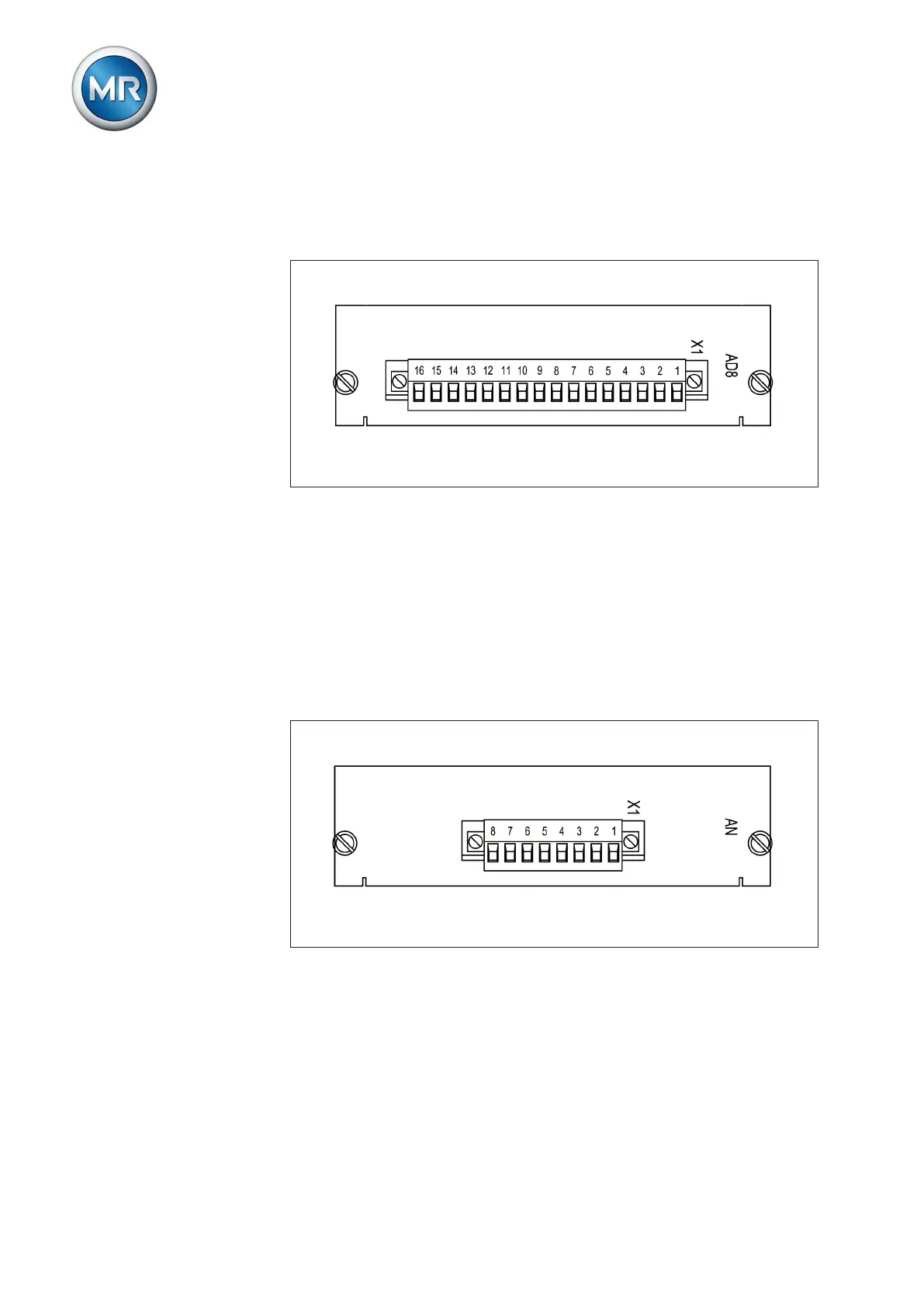

Figure 15: AD8 card
AN card
Depending on configuration, the AN card provides 2 analog outputs or with
an extension module AN1 a total of 4 analog outputs. The following signal
types are supported:
▪ 0...±20mA
▪ 0...±10mA
▪ 0...±1mA
▪ 0...±10V
Figure 16: AN card
Control voltage supply
An additional non-regulated control voltage of 60 V DC can be created with
the AC card if your system does not have external DC voltage as the signal
voltage for the device's digital inputs. Depending on device configuration,
one of the following two variants can be fitted:
▪ AC230: 230 V AC input voltage
3.5.5.5
