3 Product description
Maschinenfabrik Reinhausen 2014 27222/08 EN TAPCON® 240
▪ AC115: 115 V AC input voltage
CAUTION
Risk of injury from increased output voltage
Slight loading of the AC card may result in the output voltage increasing to
up to 85 V DC.
► Only wire card when not energized.
The output performance of the AC card is limited. The generated DC volt-
age can be used only for the control inputs of the device.

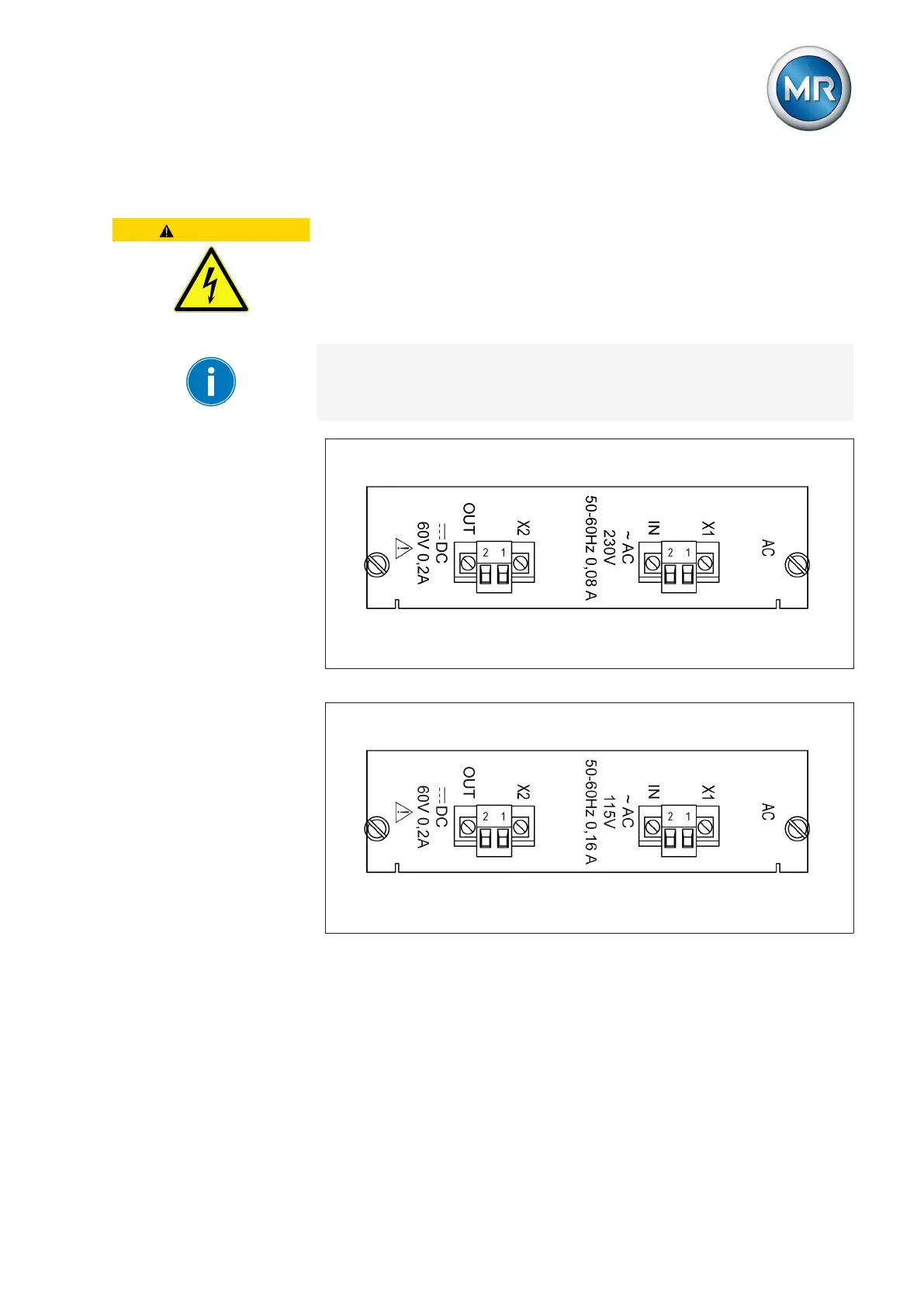

Figure 17: AC230 card
Figure 18: AC115 card
Central processing unit
The CPU card is the device's central computing unit. All internal device func-
tions and the application functions, such as processing measured values,
are controlled and monitored by the CPU card.
3.5.5.6
