7 Functions and settings
Maschinenfabrik Reinhausen 2014 73222/08 EN TAPCON® 240
Parameter Function Settings (see dia-
gram below)
P
max
: Active power at max.
desired value
Set maximum active power value above which
the power-dependent desired value is to attain
the maximum value U
max
.
20.0 MW
P
min
: Active power at min. de-
sired value
Set minimum active power value below which
the power-dependent desired value is to attain
the minimum value U
min
.
-20.0 MW
Table 13: Parameters to be set for active power-dependent adjustment of desired voltage value

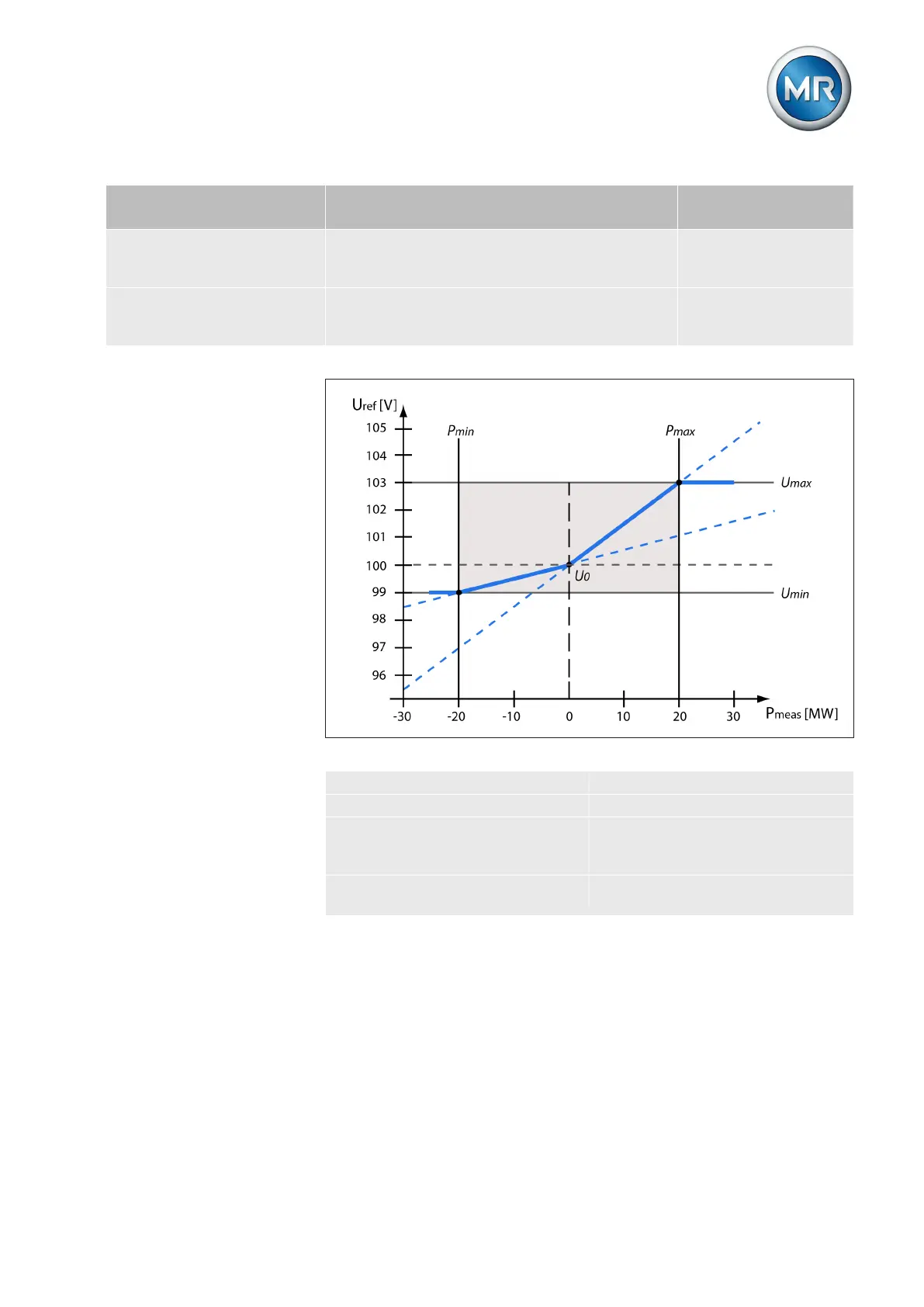

Figure 45: Active power-dependent adjustment of desired voltage value
U
ref
Desired value U
min
Minimum desired value
P
meas
Measured active power U
max
Maximum desired value
P
min
Active power at minimum
desired value
U
0
Set desired value when
measured active power =
0
P
max
Active power at maximum
desired value
Response to active power P
max
being exceeded
If the measured active power P
meas
exceeds the set parameter P
max
, the value
U
max
is adopted as the desired value.
