Appendix
122
Appendix A – DIP Switch Settings
DIP Switch Settings for The MVP Control Module
Located near the center of the rear circuit board on the back side of the MVP Control Module is a four-
position DIP Switch (see Figure 7, page 22). The settings of this switch control two System parameters:
1. Speaker Dropout Delay Timing – (This setting is important for ensuring safe and noise-free audio
demonstrations.) There are eight delay settings to choose from, between .3 seconds (300
milliseconds) and 3.5 seconds. This feature will only be active on Chains that have been set up as
Speaker Chains. (See “DIP Switch Settings for Dual Chain Modules” on following page.) Dropout
should be set for the shortest possible time which still prevents your amps from popping.
Decisions on the setting of these two parameters should be made at the time of installation. However, the
settings can be changed any time by resetting the DIP Switch.

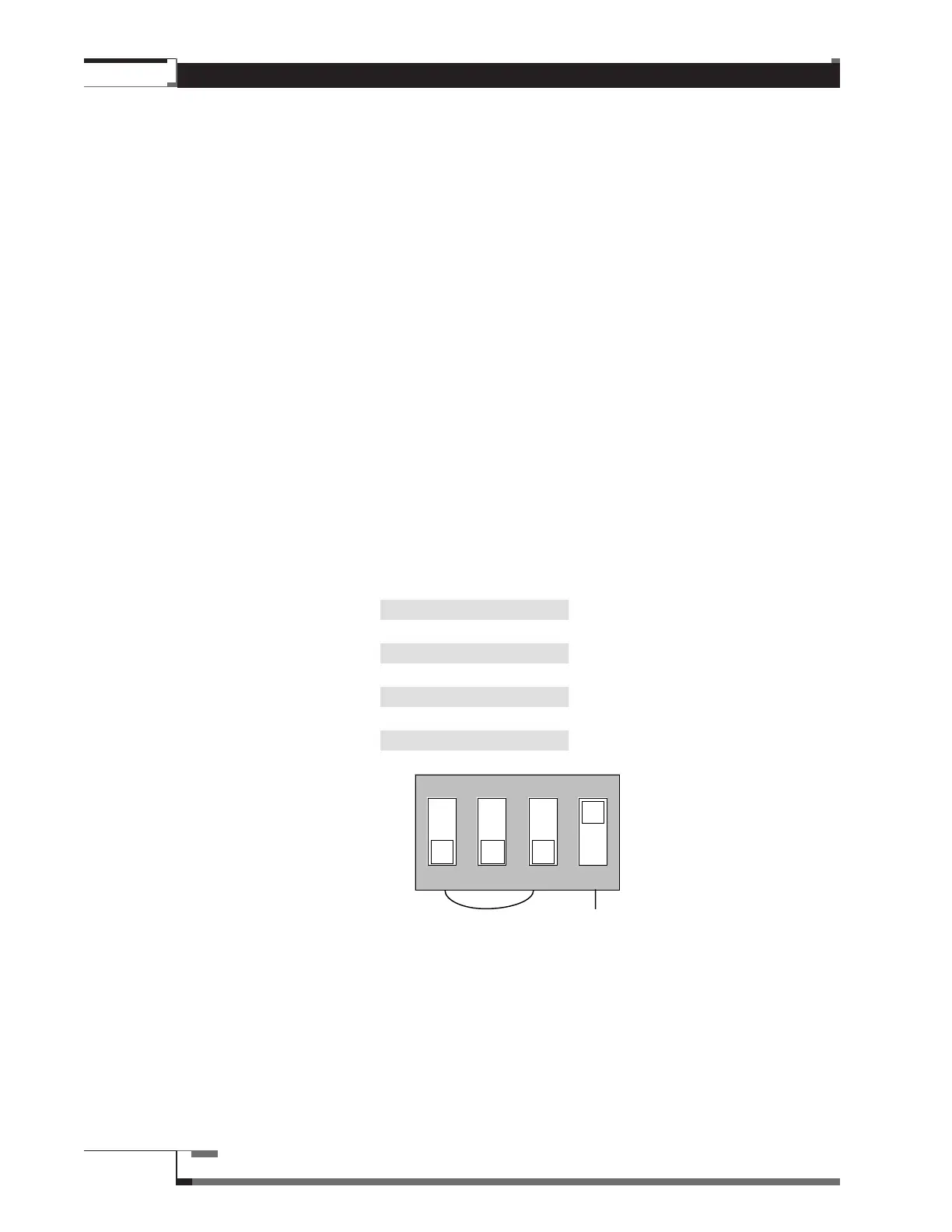

Figure 66 – MVP Control Panel DIP Switch Settings
(Example shows: .3 second Speaker Dropout Delay,
Inactivity – ON)
Delay
Time
(in
seconds)
Auto-Clear Speaker Dropout
Delay Timing
0.3
0.5
1.0
1.5
2.0
2.5
3.0
3.5
123 4
ON
ON
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
Switch
1
Switch
2
Switch
3
To Next Page
