Installation
72

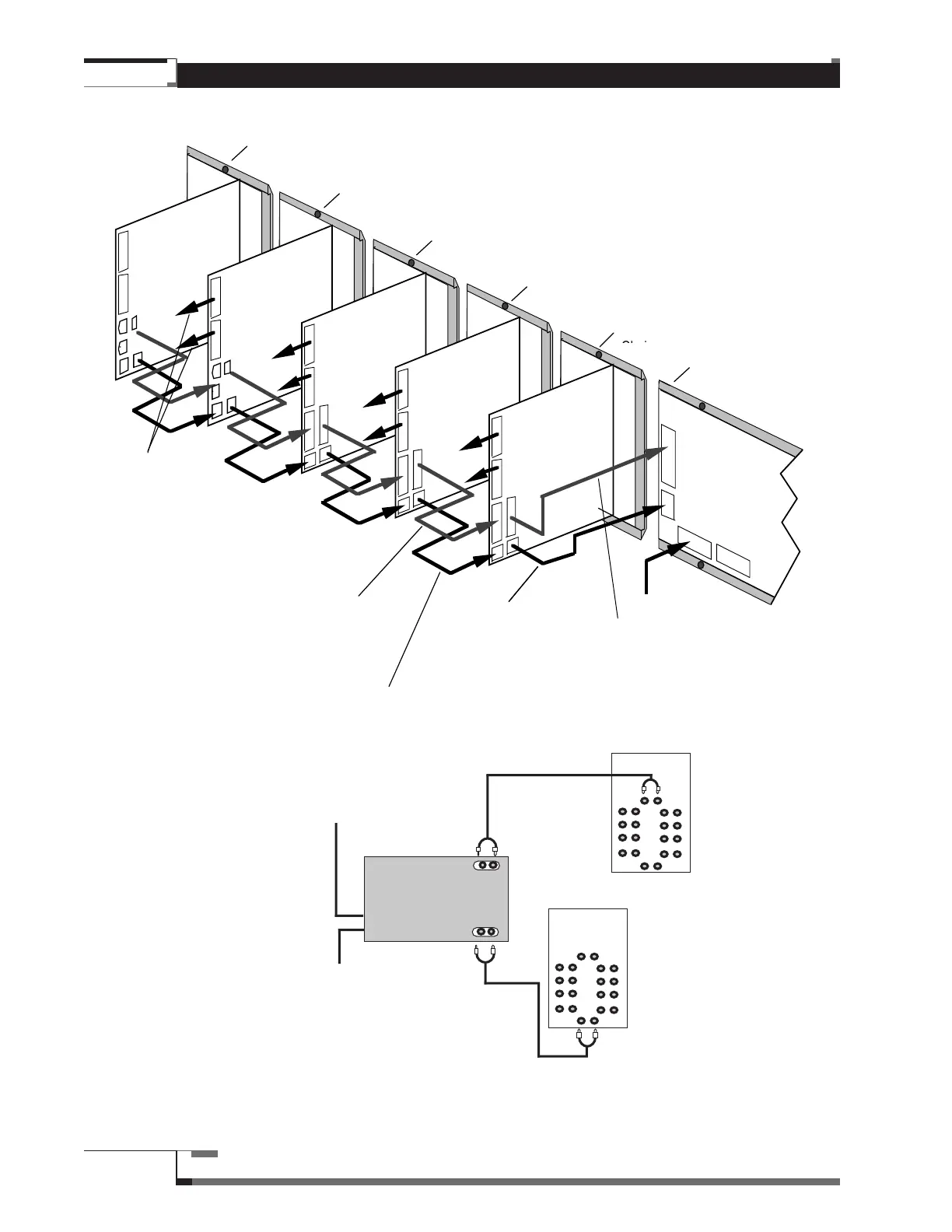

Figure 39 – Installation of MVP Sound Pressure Meter and MVP Speaker Equalizer
4 Conductor Power Cable
from first Dual Chain Module
to Control Module.
Control Module
#1 Dual Chain Module
Source Chain, Amp
Ch i
#2 Dual Chain Module
2 Speaker Chains
4 Conductor Power Cables
from Dual Chain Module
to Dual Chain Module.
Sound Pressure Meter
Speaker Equalizer #1
Speaker Equalizer #2
Multi-Conductor Data
Cables from Dual Chain
Module to Dual Chain
Module.
Multi-Conductor Control
Cables out to Switching
Module Chains.
Power Supply
Multi-Conducter Data Cable
from first Dual Chain Module
to Control Module.
OUT
IN
A udio
control
m odule
Dedicated 16v
Power Supply
Input
Low Level Bus
to input of first
Module switching
Amplifiers
First Amp Chain
Switching Module
Last Source Chain
Switching Module
Low Level
Bus from
output of last
Module in
Source Chain
Output from Speaker
Equalizer (see above)
