MTI Matrix System Series User Manual

Matrix System
®
37
MVP Control Panel Mounting Frames
Two styles of mounting frames are available for securing the MVP Control Panel to a display system. Both
styles are available in sizes ranging from six to 14 inches wide accommodating different quantities and
configurations of MVP Control Panel Modules. Flush-mount and shelf-mount can be used as a hanging
mount.
Flush Mount – A drop-in frame assembly which mounts the MVP Control Panel flush with the
display surface. Matrix configurations utilizing more than four Dual Chain Modules will require a
second frame assembly which can be mounted in over/under or side-by-side fashion. These
are typically mounted either vertically or at a slight angle.
Mounting Frame
Control Module
Dual Chain
Modules
End Caps
(Included with Frame)

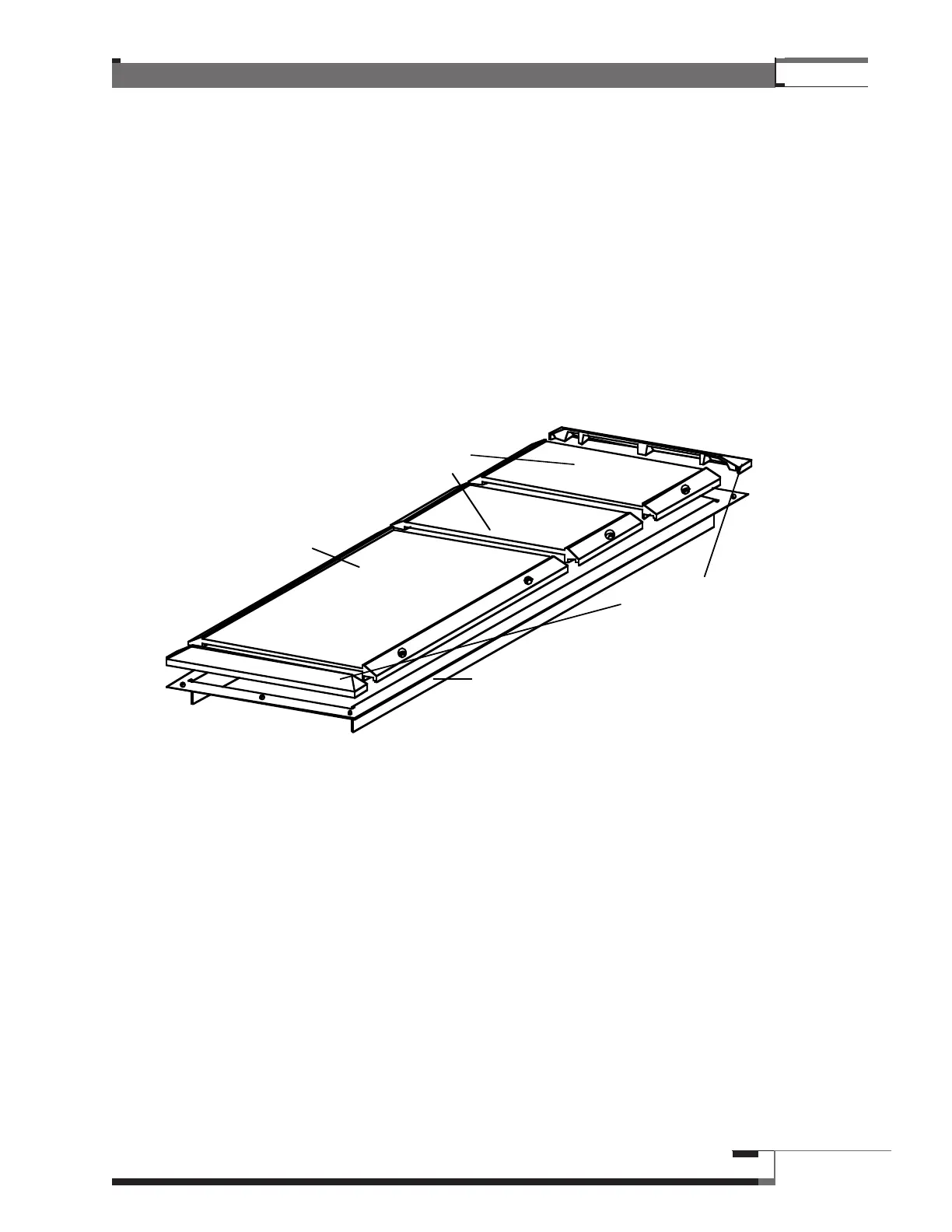

Figure 18 – MVP Control Panel Flush-Mount Mounting Frame
