6. Connect the MVP Control Panel Power Supply
At least one 12V DC power supply is included with each MVP System. It supplies power to the MVP Control
Panel, and, through the Multi-Conductor Control Cables, to the Switching Modules. We do not recommend
that you use the same Power Supply for your components and your MVP Control Panel, since transient
voltages may disrupt MVP Control Panel operation.
Power is supplied to the Dual Chain Modules and Feature Modules by the four-conductor power cable
attached to them. Adjacent to each attached power cable on a DCM or Feature Module is a parallel male
connector for chaining power from Module to Module. Unlike the data cables, power cables can be
connected in any order, so you will not need extension cables to reach Modules on a second level.

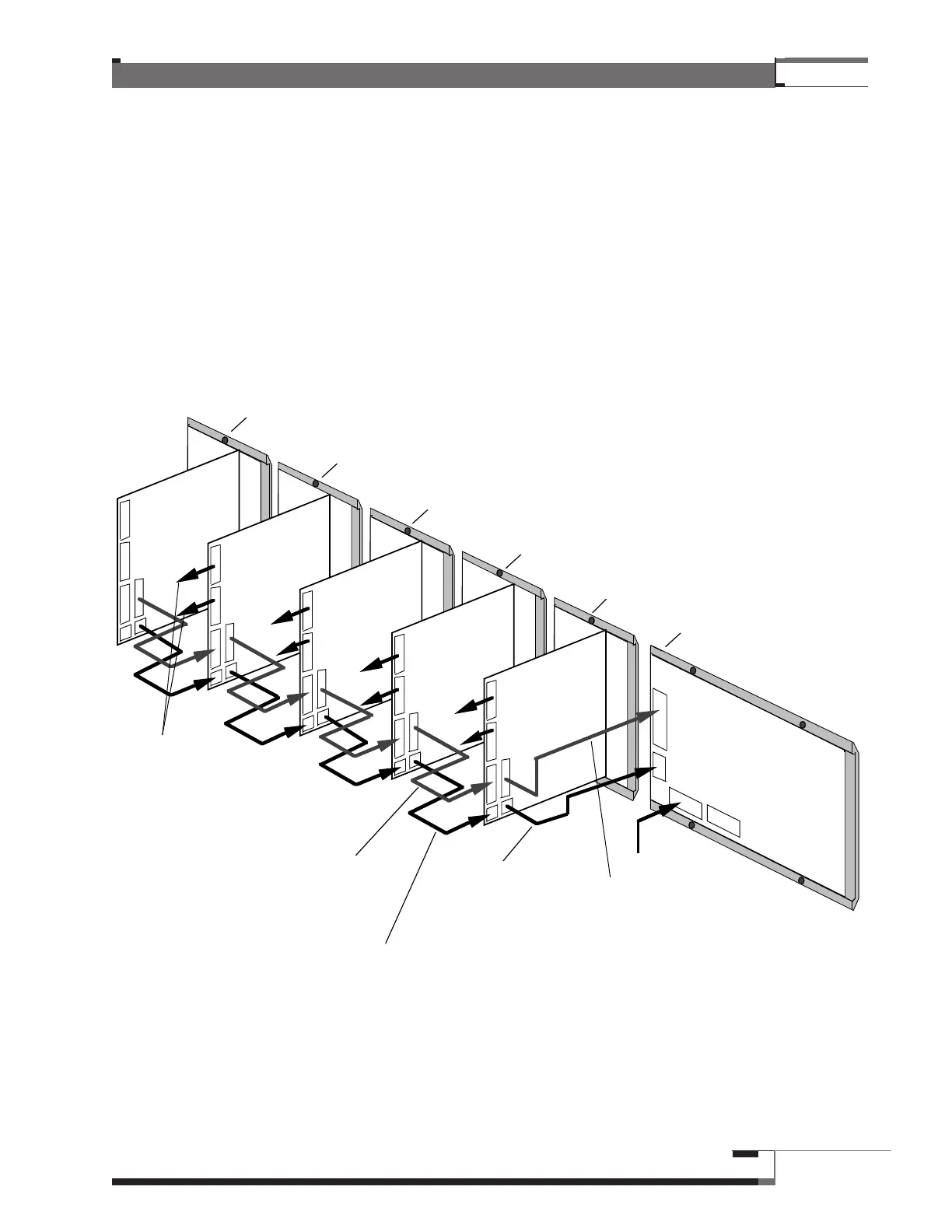

Figure 40 – Connecting Power Supplies to the MVP
Power Supply
4 Conducter Power Cable
from first Dual Chain Module
to Control Module.
Control Module
#1 Dual Chain Module
#2 Dual Chain Module
Multi-Conducter Data Cable
from first Dual Chain Module
to Control Module.
4 Conducter Power Cables
from Dual Chain Module
to Dual Chain Module.
#3 Dual Chain Module
#4 Dual Chain Module
#5 Dual Chain Module
Multi-Conducter Data
Cables from Dual Chain
Module to Dual Chain
Module.
Multi-conducter Control
Cables out to Switching
Module Chains.
