Descriptions
34
Audio MVP Control Module
A. 16v AC Power In – The ACM has its own 16v AC wall-mount transformer and plug,
supplied by MTi. Do not attempt to hook up any other form of power!
B. SE Module Input – A cable runs from the output of the MVP-SE into this terminal.
C. Audio Out – After the ACM has attenuated the audio signal, RCA cables connected to these
terminals carry the attenuated signal to the associated Amplifier Chain’s left and right input.
D. Audio In – The bus from the last source Chain is connected here. When a Speaker on the
Speaker Equalized Chain is selected, the signal is attenuated by the ACM.
INC.
800-426-6844
AUDIO
CONTROL
MODULE
POWER
16V AC
CABLE
TO SE
MODULE
L R
AUDIO OUT
AUDIO IN
L R
A
B
D
C
3 "
3
/
4
5 "
1
/
2

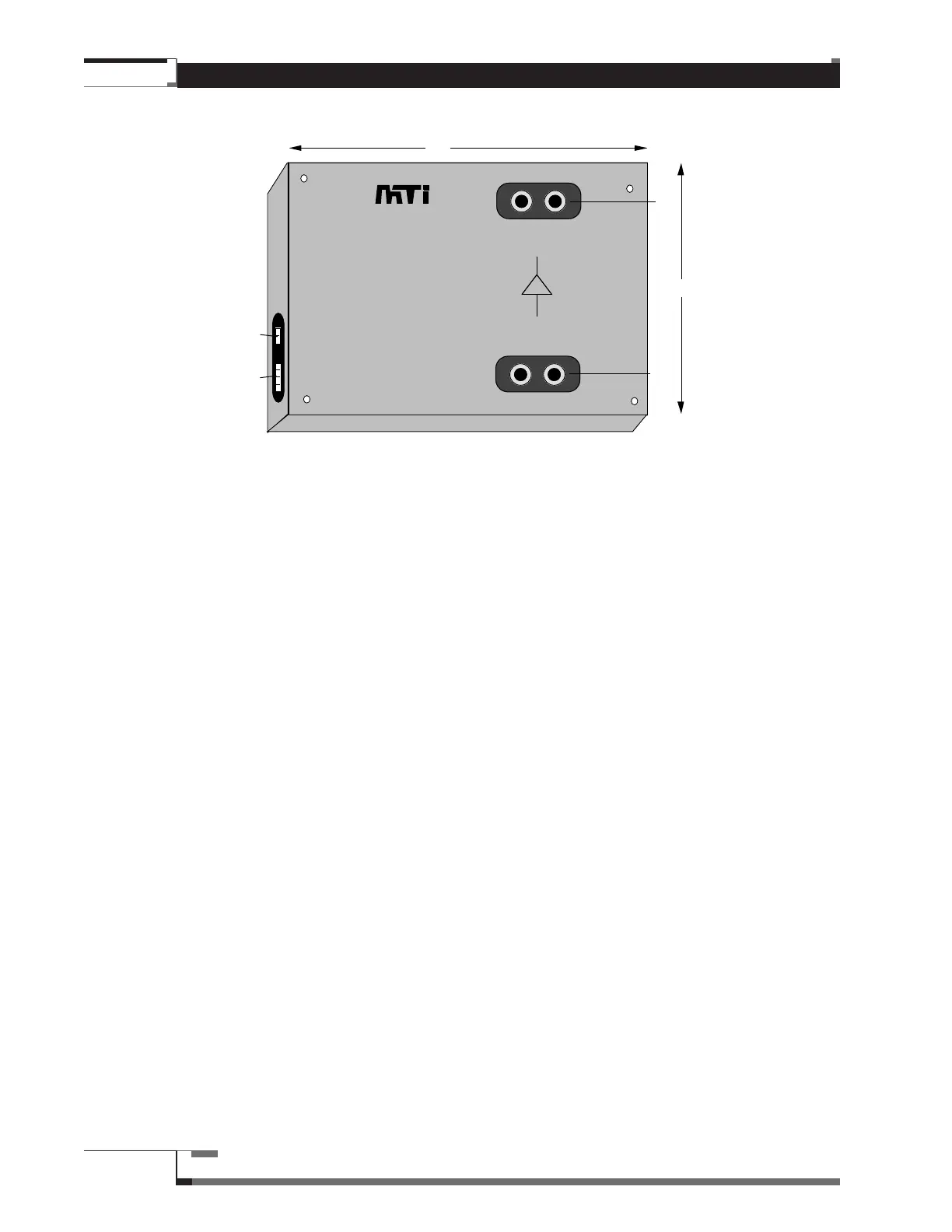

Figure 16 – Audio MVP Control Module
