MTI Matrix System Series - Figure 13 - MVP Sound Pressure Meter, Side View; MVP Sound Pressure Meter, Side View

Descriptions
30
MVP Sound Pressure Meter, Side View
A. Microphone Input Jack –
the microphone which supplies the
MVP-SP with the demonstration
area sound level plugs in here.
See Installation Section for
information on proper
positioning of the microphone.
B. Sound Pressure Output
Connector – connects the
output of the MVP-SP to the
MVP Speaker Equalizer (see
below).
C. Parallel Power Connectors –
like Parallel Power Connectors
on Dual Chain Modules. (see
page 25)
C
A
B
3 "
1
/
2

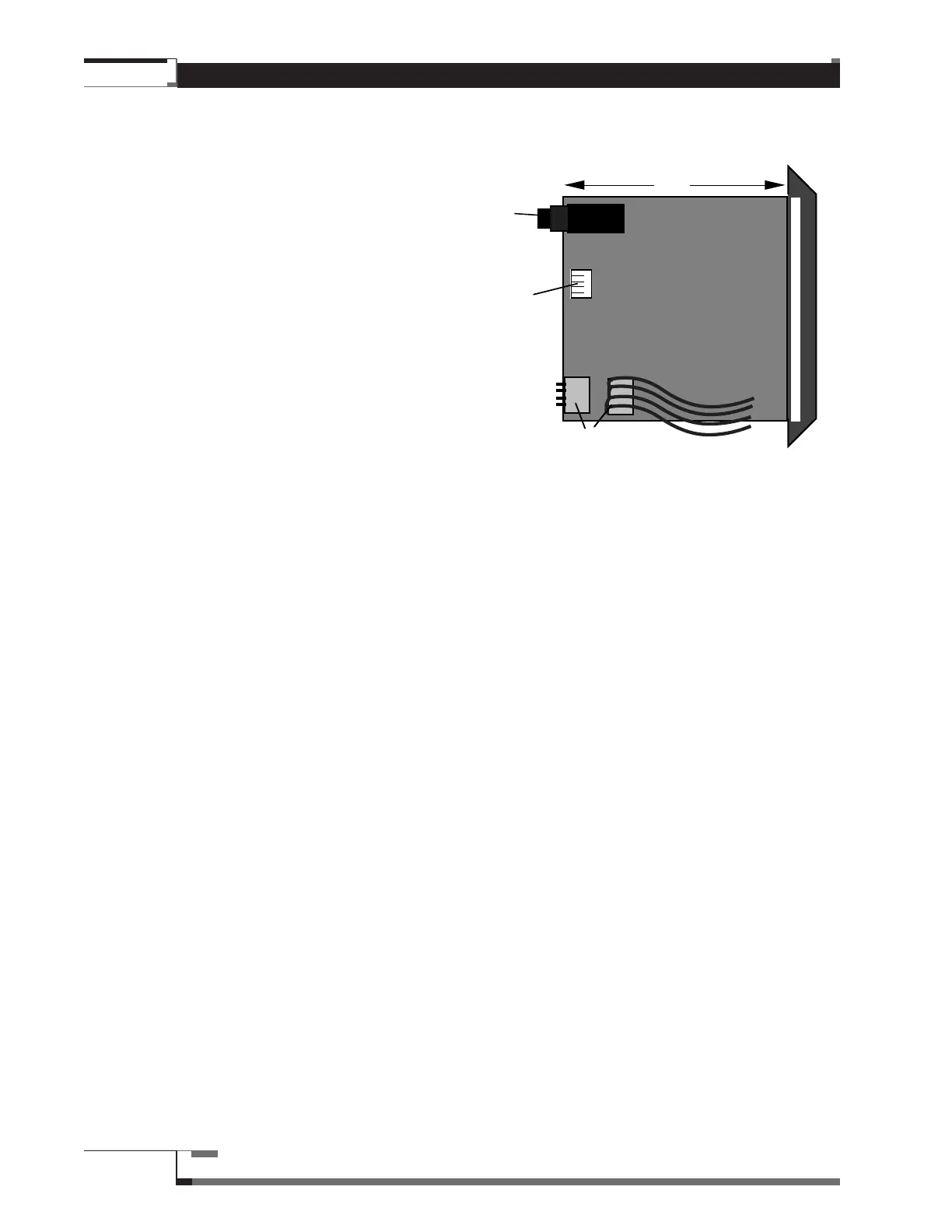

Figure 13 – MVP Sound Pressure
Meter, Side View
