MTI Matrix System Series User Manual

Descriptions
54
Switching Module Applications
Input and/or Output Switching
Each Matrix System Switching Module can handle either input or output signals, and in the case of
Switching Modules with two sides (1310/12, 1320/22), the same Module can sometimes handle both (see
below). For example, the high-level output of a tape deck could be switched with a 1410, and the high-level
input to a Speaker Chain can also be switched with a 1410.
14101410
Out to Processor
or Destination
Chain
In from Source
or Processor Chain
2-Channel
High Level
Output
Tape Deck #1
2-Channel
High Level
Input
Switching Output Switching Input

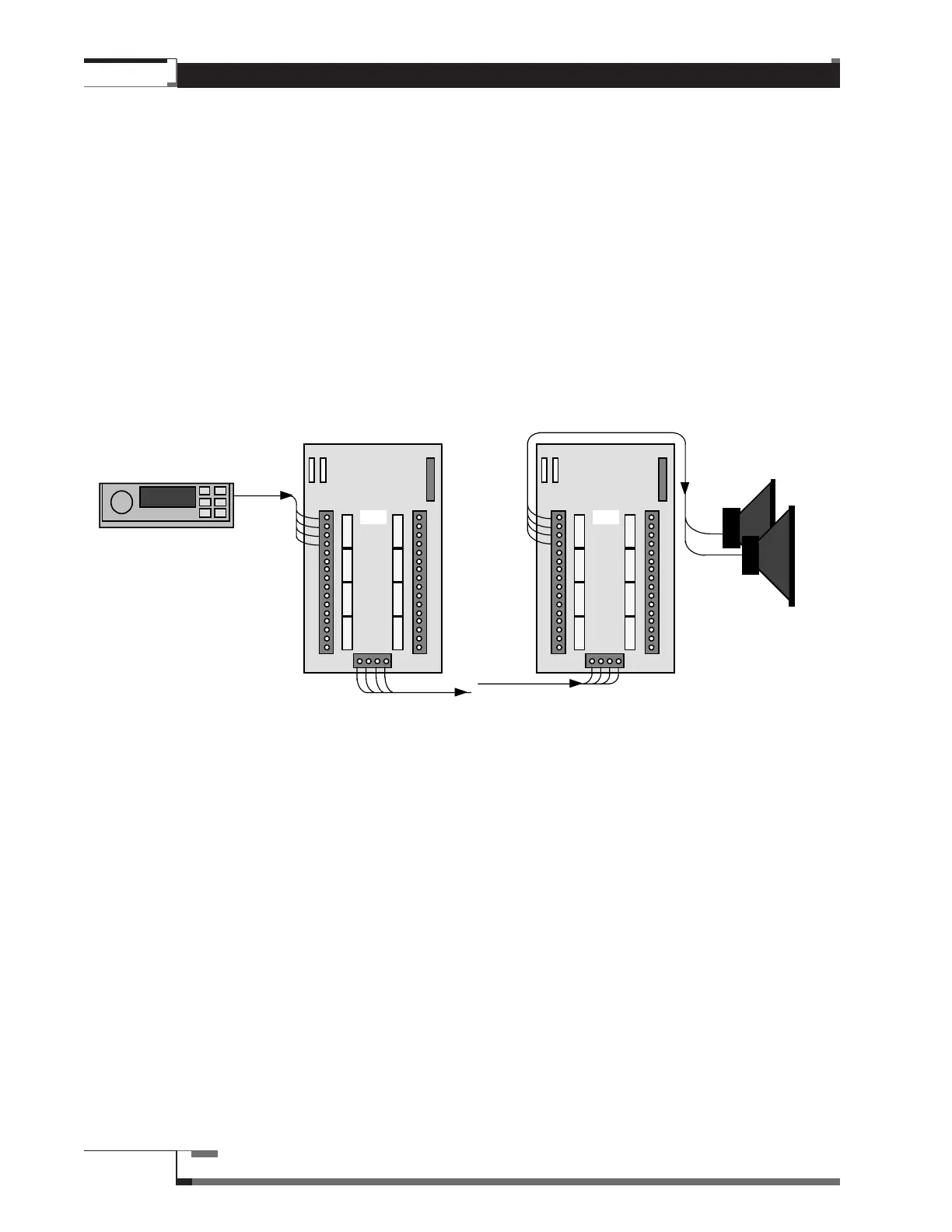

Figure 28 – Input or Output Switching
