Descriptions
46
1320/1322 Switching Modules
The 1320 and 1322 Switching Modules have two low-level sides, each with its own set of Input/Output
terminals, like two 1210/14s joined at the side. These Modules are capable of supporting two 2-Channel
signals for up to eight audio or video components. All low or preamp level signals are linked to these
Modules with RCA connectors.
Like MTi’s other Switching Modules, the 1320 and 1322 have a non-directional signal path and can switch a
signal in either direction. The input stage of a component can be connected to one side of the Module, and
the output stage connected to the corresponding Position on the other. When a component is selected at
the MVP Control Panel, both sides switch the selected Position to its Input/Output terminals simultaneously.
G
B
C
D
E
ON
1 2 3 4
ON
A
B
E
C
D
F
G
H
A
C
G
E
B
E
D
F
H
E
A B C D E F G H LED +
-----------------LEDS---------------
H
J
MATRIX MODEL 132
A
---------TURN-ON RELAYS-----
A B C D E F G H
+12
FF
I
E
E

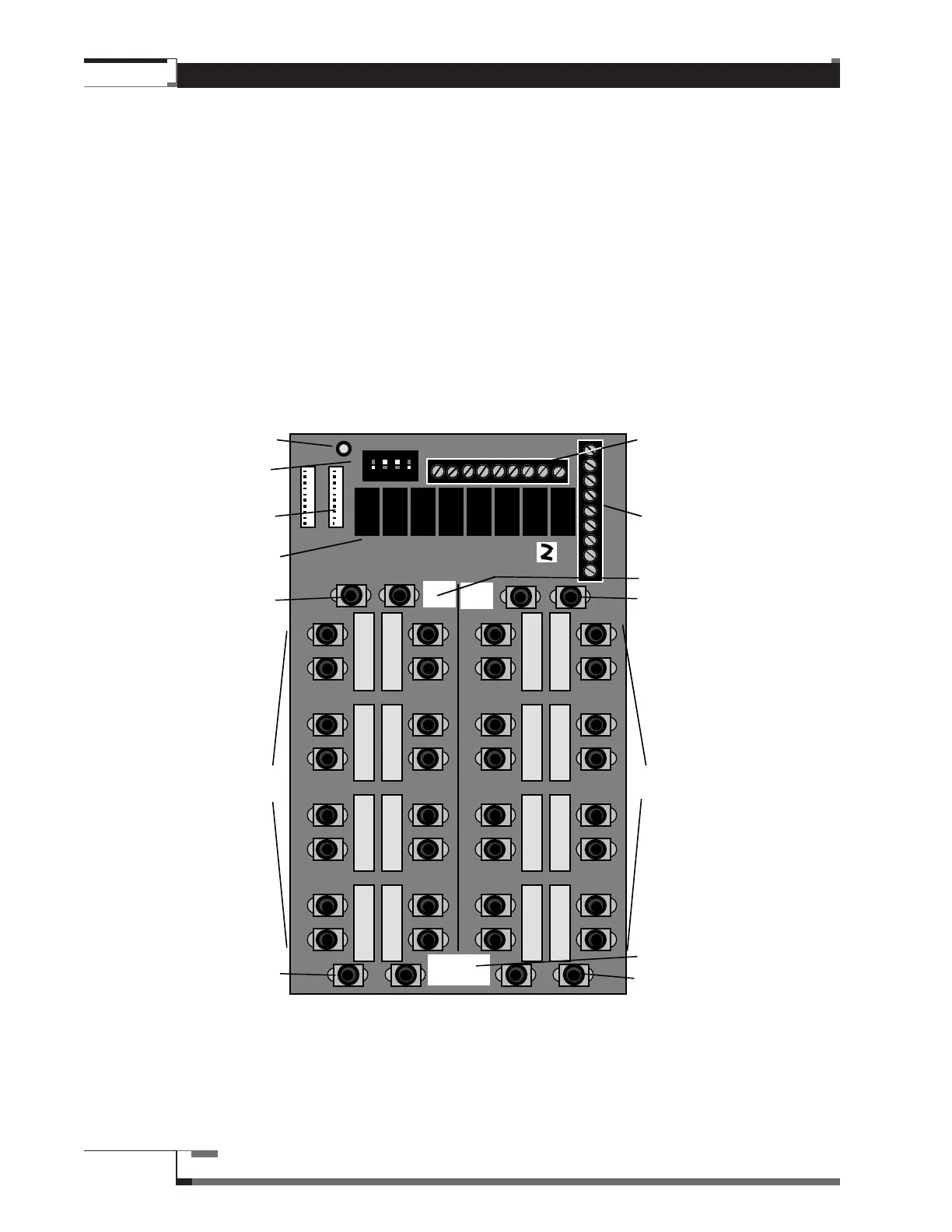

Figure 24 – 1322 Switching Module
