DIP Switch Settings for MVP Dual Chain Modules and Watt Meters
As with the MVP Control Module, the DIP Switch parameters should be considered and set before
assembling and installing the MVP Control Panel. A complete explanation of the DIP Switch options
available on a per Chain basis can be found on page 22. Figure 65 shows the proper settings for each
option.
Regardless of the settings of DIP Switch #2 and #3, setting a Chain for Speaker automatically enables the
Auto-Rotate feature. It also disables the “Bypass” option.
12 3 4
ON
Speaker
Component
Not Used ROTATE Enable BYPASS Enable
Component
Options

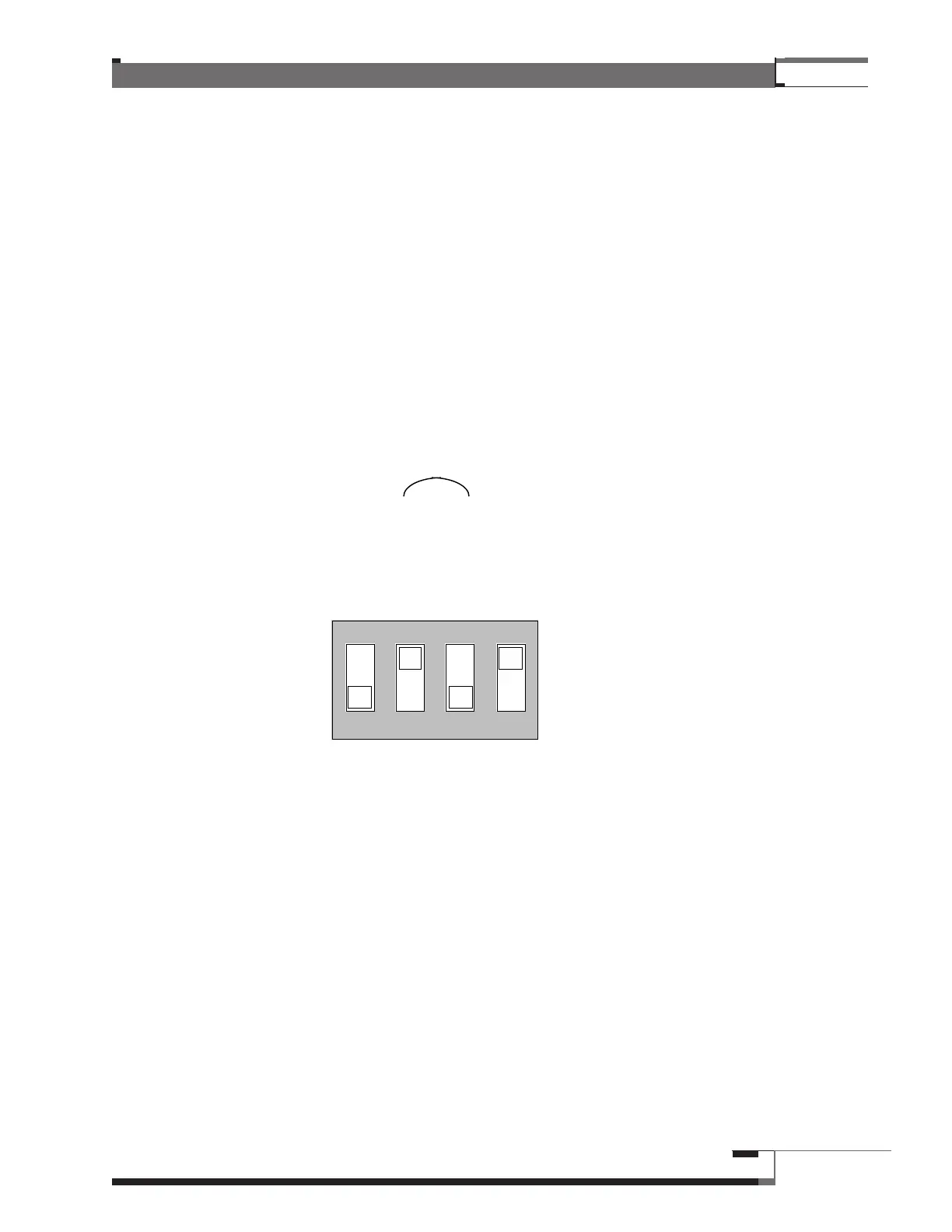

Figure 67 – Dual Chain Module DIP Switch Settings
(Example Shows: Rotate = Enabled; Bypass = Disabled; Speaker)
NOTE: If the Bypass option is not chosen for a Chain, use Figure 63 to determine Switching Module
Position Designations. If Bypass is chosen, use Figure 64.
