Matrix System
®
33
MVP Speaker Equalizer, Side View
A. Speaker Chain Output –
Passes component selection
information from an MVP Chain
Module to the Speaker Chain of
Switching Modules through a
cable connected to the first
Switching Module of the
associated Speaker Chain.
B. Chain Module Input –
Receives component selection
information from the Speaker
Chain Module. This is connected
by cable to the Dual Chain
Module controlling the
associated Speaker Chain.
C. Sound Pressure Meter Bus –
Receives sound pressure
information from the MVP-SP
and passes it along to the next
Speaker Equalizer, if any. This is
connected by cable to the
output of the SP.
D. ACM Output – Passes attenuation level information to the Audio MVP Control Module
(ACM). Also tells the ACM not to equalize (i.e., to bypass) if the SE is off. This is connected
by cable into the SE Module Input plug of the ACM.
E. Parallel Power Connectors – like Parallel Power Connectors on Dual Chain Modules (see
page 25).
A
B
C
D
E
3 "
1
/
2

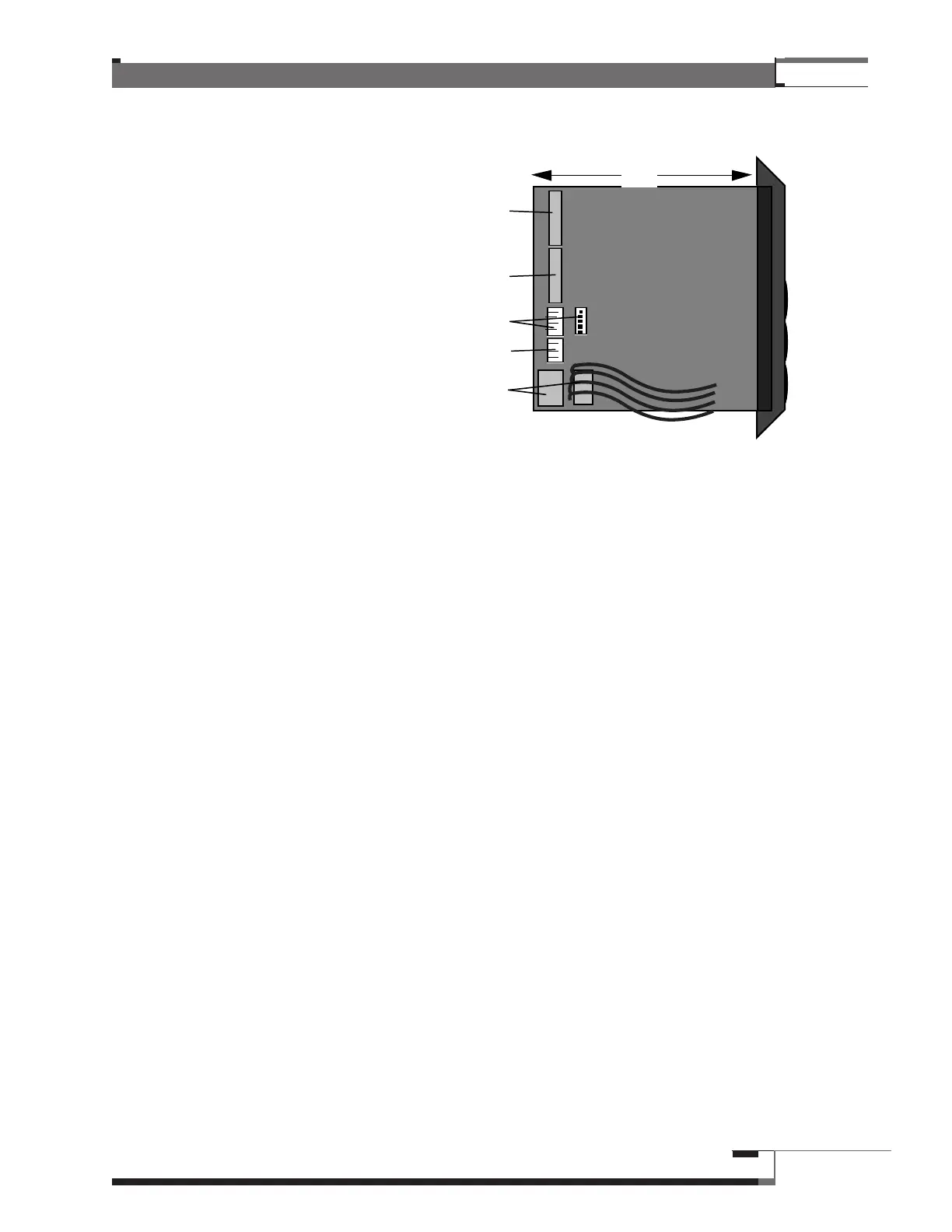

Figure 15 – MVP Speaker Equalizer,
Side View
