Matrix System
®
55
Switching Multi-Channel Components
Many components in both home and car audio have more than one set of inputs and/or outputs. When a
multi-channel component position is selected at the MVP Control Panel, a Switching System must have the
potential to switch any of that component’s inputs or outputs simultaneously. Some Matrix System
Switching Modules (the 1310/12 and the 1320/22) have two sets of relays which can handle the inputs
and/or outputs of such components.
Amplifier #1
Low Level Signal
In from Source Chain
High Level Signal
out to Destination Chain
Low Level Input
High Level Output

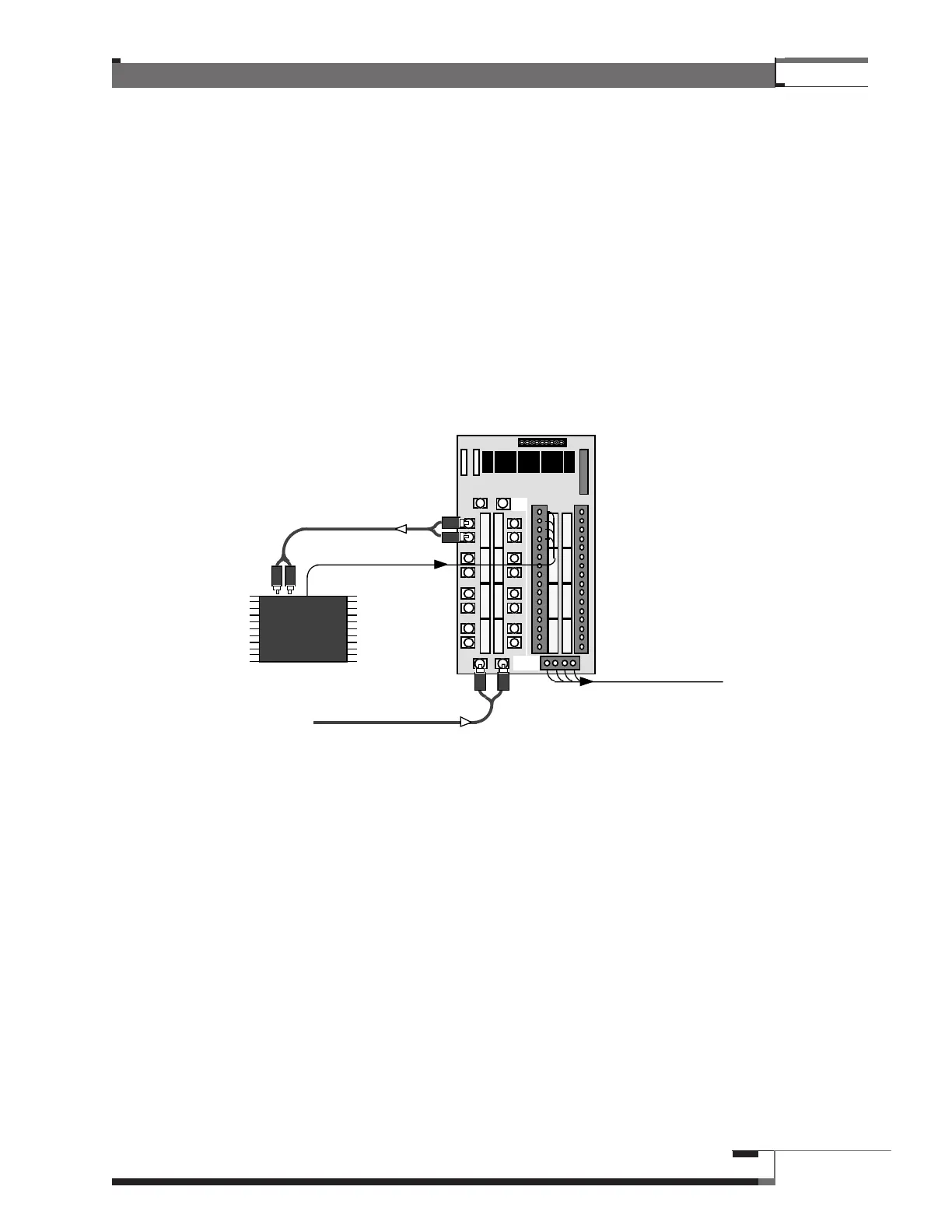

Figure 29 – Input and Output on One Module
