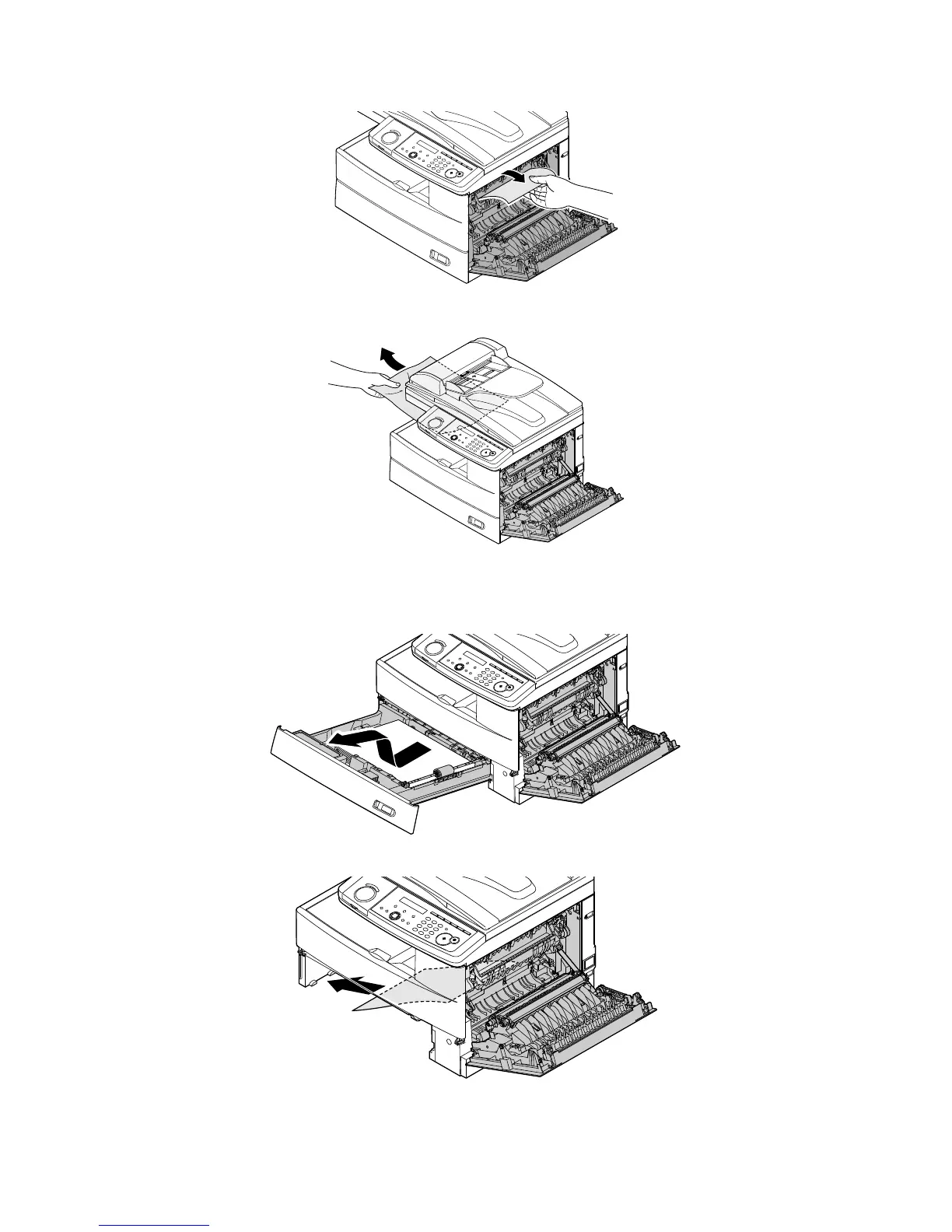

4-9
Jammed in fuser ar
ea
Jammed in paper exit
area
If the jamm
ed paper was fed a litt
le and you cannot seize it easily:
3.
Open the paper cas
sette. After you pull it out c
ompletely, lift the front part of the c
assette slightly
up
to release the cas
sette from the machine.
4.
Carefully remov
e the jammed paper.
193
195
Table of Contents
Default Chapter
2
Safety Information
2
Table of Contents
3
Section 1 General Description
7
Product Description
7
Specifications
8
Section2 Machine Composition
11
Interconnect Block Diagram (1/2)
11
Main Control PCB
13
Network Control Unit (NCU) PCB
14
Power Supply Unit (PSU)
15
Sensors
16
Sensor Locations
16
Sensor Descriptions
17
Document Scanning Sequence
18
ADF Detection
18
FBS Section (MFX-1950 Only)
19
Recording Section
21
Recording Paper Feed Path
21
Image Processing
22
Drum Charge
22
Drum Exposure
22
Development
23
Image Transfer
23
Erasing
24
Cleaning
24
Fusing
25
Fusing Temperature Control Circuit
26
Section3 Adjustment Procedures
27
Field Service Program Modes
27
Machine Parameter Adjustment
29
Setting the Machine Parameters
29
Clearing the Machine Parameters
29
Memory Switch Adjustment
86
Setting the Memory Switches
86
Clearing the Memory Switches
86
Clear Programmed Data / User Settings
109
All RAM Clear
110
Setting Individual Autodialer Attributes
110
Unique Switch Adjustment
115
Setting the Unique Switches
115
Clearing the Unique Switches
115
Monitor
136
Print T.30 Monitor
136
Multi T.30 Monitor
136
How to See the Print out
137
Printer Maintenance Mode
141
Service Report Printing
142
Printing the Service Report
142
Contents of the Service Report
142
Monitor Speaker
152
Test Modes
152
Life Monitor
153
Printer Test
154
Feeder Test
155
Port Status
155
Set Background Level
155
Print Machine Parameters, Memory Switch and Unique Switch Settings
156
Factory Functions
156
Function List
156
LED Test
156
LCD Test
157
Key Panel Test
157
SRAM Check
158
DRAM Check
158
RTC (Real Time Clock) Test
159
Page Memory Check
159
Generate Bell Test
159
Line Tests
160
Relay Test
160
Tonal Signal Test
160
DTMF Output Test
162
Mirror Carriage Transfer Mode
163
Consumable Order Sheet
164
Set Consumable Order Sheet
165
Clear Consumable Order Sheet
166
Print Consumable Order Sheet
166
DRAM Clear
167
Clear Life Monitor
167
Clear Optional Data
168
Set Service Code
168
Life Monitor Maintenance
169
Sensor Input Test
170
Printer Diagnostic Mode
171
Network Service Mode
171
Display the Server Sum-Check
171
Clear the Administrator's Information
171
All Clear the Registered Parameters of the Network Board
171
Multi Line Settings
172
Flash Rom Sum Check
173
Set Service Report
174
Set the Service Report
174
Clear Service Report
175
Printing the Service Report
175
Printer Registration Adjustment
176
Quick Initial Settings
177
Update the Software
178
Install the Update Application on PC
178
Installing the USB Driver on the PC
179
Updating the Software Using the PC
182
Error Code
184
Convert Dialing Characters in E-Mail Gateway Functions
185
Section4 Troubleshooting Procedures
186
Troubleshooting Outline
186
Recording Paper Jam
187
Document Feeder Jam
187
Document Feeder Multi-Feeding or Skew
188
Mirror Carriage Error (MFX-1950)
188
Transmit Error
188
Transmit Black Lines
188
Cannot Transmit
189
Receive Errors
189
Will Not Auto-Answer
189
Clearing Jammed Paper
190
If the Original Document Jams
190
To Remove the Document
191
If a Printout Jams Inside Your Machine
193
The Image Quality Problems
196
Blank
196
Black
196
Printout too Light
197
Printout too Dark
197
Blurred Background
197
Uneven Print Density
198
Irregularities
198
White (Black) Line
199
Toner Smudges
199
LCD Error Messages
200
LCD Error Messages (Alphabetic List)
200
Error Codes
204
Dialing Errors
204
Reception Errors
204
Transmission Errors
205
Communication Error Messages
206
Service Call Error
207
Call for Service
207
Please Call Service
207
LCD Failure
210
General Power Failure
210
Cleaning the Unit
211
Curing Frequent Jams in the ADF
211
Cleaning the Document Glass, ADF Glass and Document Pad
212
Cleaning the Drum Charge Wire and LED Print Head
212
Section5 Maintenance & Adjustment
213
Section5 Maintenance & Adjustment
214
Maintenance Schedule
214
Re/Disassemble
215
Covers
217
Tray Document
218
Cover Connect
218
Cover Platen (Mfx-1950 Only)
219
Cover Adf Base (F-315 Only)
219
Cover Tx Side B (Mfx)
220
Cover Tx Side B (F)
221
Cover Tx Side F (Mfx)
222
Cover Tx Side F (F)
223
Cover Front
224
Tray Exit Paper
224
Cover Panel (F)
225
Tray a Mp/Pad Flapper Mp
226
Pcbs
227
Pcb Panel
228
Pcb Inverter (Mfx)
229
Pcb Inverter (F)
230
Lamp (F)
231
Pcb Main
232
Pcb Connect B
233
Pcb Connect a / Power-Supply
233
Pcb Psu / Pcb Ncu
234
Pcb Connect C
235
Scanning Section
236
Frame Scanner (Mfx)
240
Frame Scanner (F)
241
Home Sensor (Hs) (Mfx-1950 Only)
243
Chassis Fbs
244
Adf Motor
245
Sensor Txil
246
Guide Inner a
247
Guide Outer
247
Adf Drive Gears
249
Adf Permit Sensor (Aps)
250
Sensor Ds1/Ds
251
Fbs Motor (Mfx-1950 Only)
252
Assembling the Fbs Motor (Mfx-1950 Only)
253
Printer Section
254
Clutch (Mg)
254
Rx Motor
255
Motor Duplex
255
Spring Clutch
256
Frame Drive Gears
257
Sensor Trays
261
Sensor Pss
263
Roller Pickup Mp / Pad Pressure Mp
263
Roller Pick up (1St Cst) / (2Nd Cst)
266
Pad Pressure (1St Cst) / (2Nd Cst)
266
Piece Cover Cst (1St Cst Paper Dust)
267
Plate Frame B (2Nd Cst)
269
Plate Frame B Gears (2Nd Cst)
270
Spring Clutch (2Nd Cst)
271
Solenoid (2Nd Cst)
271
Roller Feed Duplex a
273
Toner Sensor 1, 2 (Ts1, Ts)
275
Adjustment
281
Outline of Printer Registration Adjustment
281
Printer Registration Mode
281
Adjustment Procedure
282
Zoom Adjustment
284
Registration
288
Separation Pressure Adjustment
292
Cleaning the Mirror A, B and C
293
Applying the Sheet Document Press (MFX-1950 Only)
294
Section 6 Options
295
Memory Upgrade
295
Packaging Contents
295
Installation
295
Second Paper Cassette
297
Packaging Contents
297
Installation
297
Page Counter
299
Packaging Contents
299
Installation
299
PCL Printer Controller
301
Packaging Contents
301
Installation
301
Network Interface Board
302
Packaging Contents
302
Installation
302
Second Phone Line Kit
306
Packaging Contents
306
Installation
306
Officebridge Expansion Kit (MFX-1950 Only)
309
Packaging Contents
309
Installation
309
Setup the Officebridge
311
Other manuals for Muratec F-315
User Guide
198 pages
Specifications
2 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Muratec F-315 and is the answer not in the manual?
Ask a question
