Muratec F-315 Field Engineering Manual

5-39 5-39

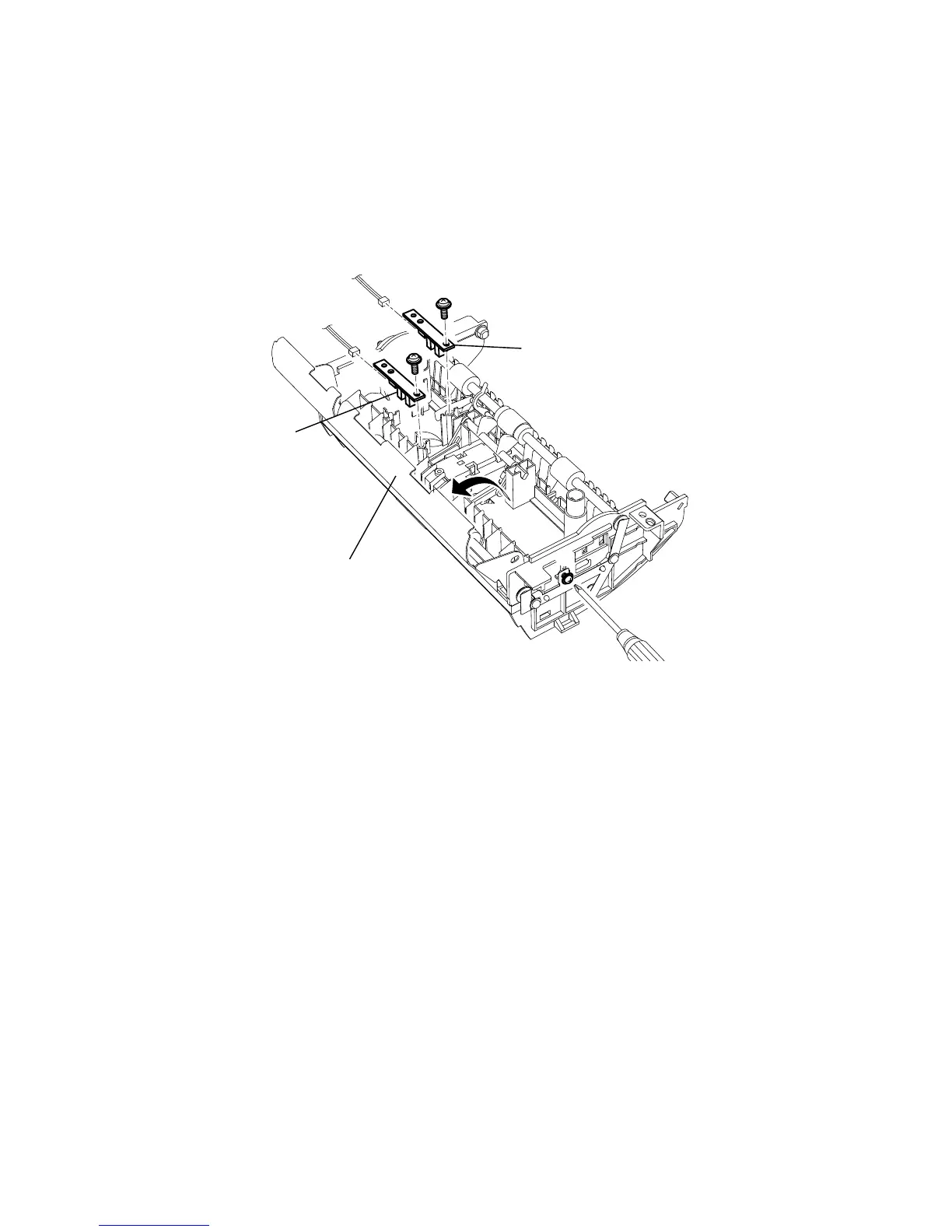

SENSOR DS1/DS2
1. Remove the Guide inner A. (See page 5-35)
2. Loosen the Guide inner B mounting screw (A) and open the Guide inner B.
3. Remove the DS1 mounting screw and disconnect the connector on the DS1, then remove the DS1.
4. Remove the DS2 mounting screw and disconnect the connector on the DS2, then remove the DS2.
Note: When reattaching the parts, close the Guide inner B first and then tighten up the mounting screw
(A).
Guide inner B
DS2
DS1
(A)
