5-16 5-16
PCB PANEL 1

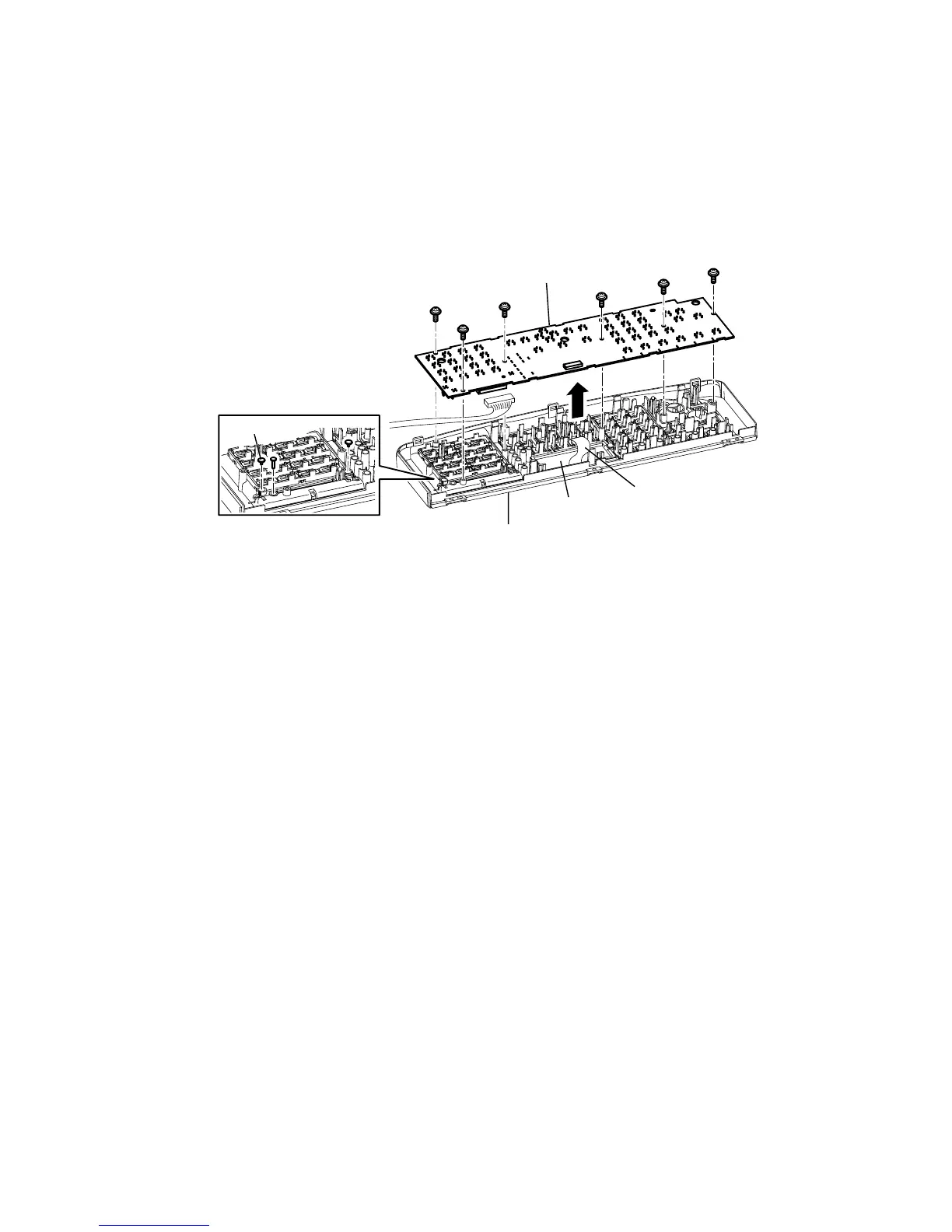

1. Remove the Cover platen (MFX-1950) or Cover ADF base (F-315). (See page 5-7)
2. Remove the Cover panel. (See page 5-13)
3. Remove six PCB PANEL 1 mounting screws, and then release eight locking tabs.
4. Disconnect the connector on the PCB PANEL 1.
5. Disconnect the Film harness of the LCD, and then remove the PCB PANEL 1.
Note: After removing the PCB PANEL 1, do not turn over the Cover panel. Otherwise the Pin sensor may fall off.
PCB PANEL 1
Cover panel
Film harness
LCD
P50
Pin sensor
To Next Page
