5-7 5-7

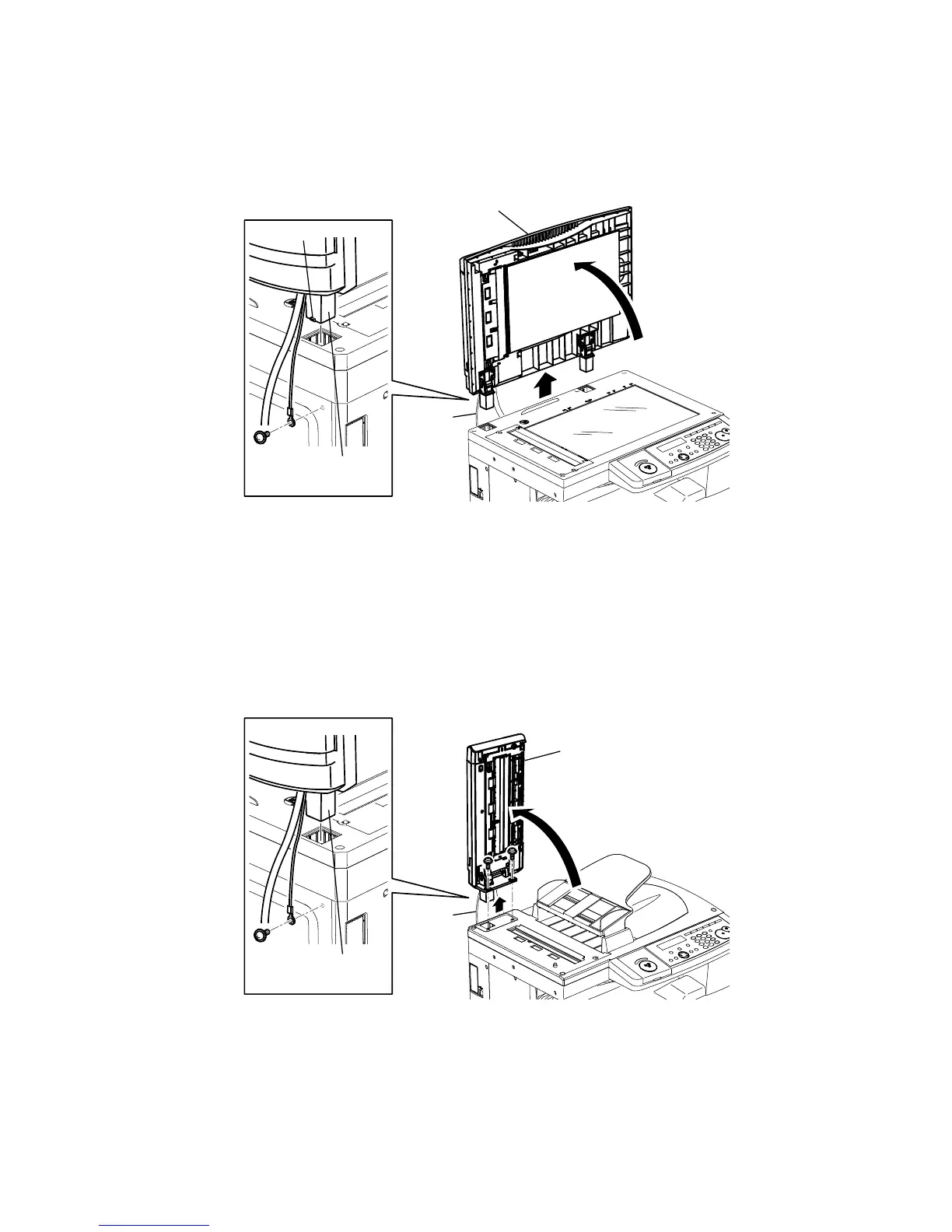

COVER PLATEN (MFX-1950 only)
1. Remove the Cover connect. (See page 5-6)
2. Open the Cover platen.
3. Remove the Ground wire, and then raise the Cover platen.
4. Release the locking tab, and then remove the COVER PLATEN.
Cover platen
Ground
wire
Platen hinge
Tab
COVER ADF BASE (F-315 only)
1. Remove the Cover connect. (See page 5-6)
2. Open the Cover ADF base.
3. Remove the Ground wire, and then remove two Hinge mounting screws.
4. Remove the COVER ADF BASE.
Cover ADF base
Ground
wire
Hinge
To Next Page
