6-12

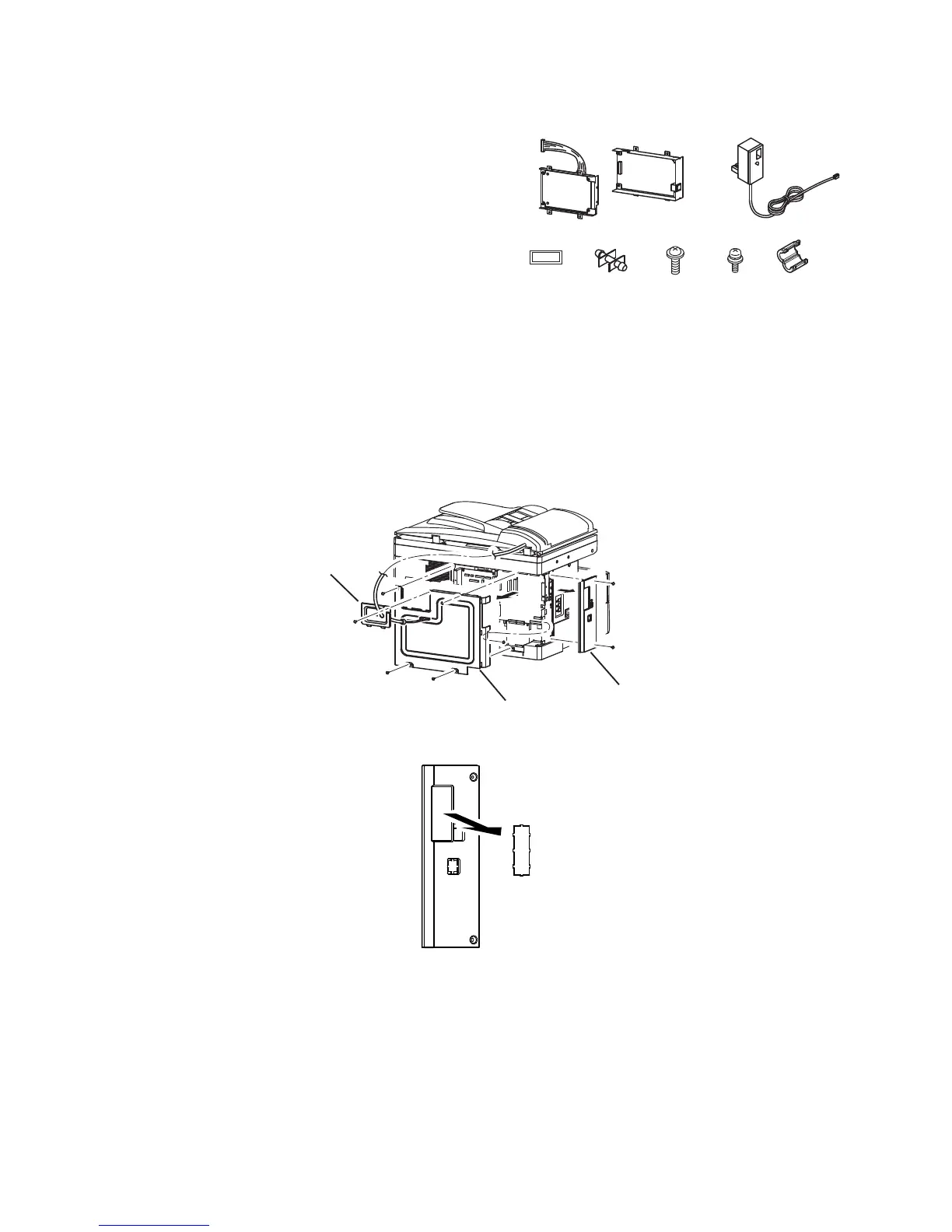

6.6 Second phone line kit

Packaging contents:

1. Modem PCB .....................................................1

2. NCU PCB .........................................................1

3. Telephone line cable.........................................1

4. Label ................................................................4

5. Spacers ............................................................2

6. Screw A ...........................................................2

7. Screw B ...........................................................4

8. Ferrite core .......................................................1

9. Operation manual .............................................1

Note: The inclusion of the telephone line cable varies according to countries.

Installation

1. Turn the power off and unplug the power cord.

2. Remove the covers.

1) Remove the connect cover screw and the cover.

2) Unplug the harness that is going through the connect cover.

3) Remove the two screws and the option cover.

4) Remove the five screws and the shield cover.

Connect cover

Shield cover

Option cover

3.Use the nippers to carefully punch out the panel on the option cover.

(1) (2) (3)

(5) (7) (8)(6)(4)

LINE2
