Muratec F-315 Field Engineering Manual

5-21 5-21

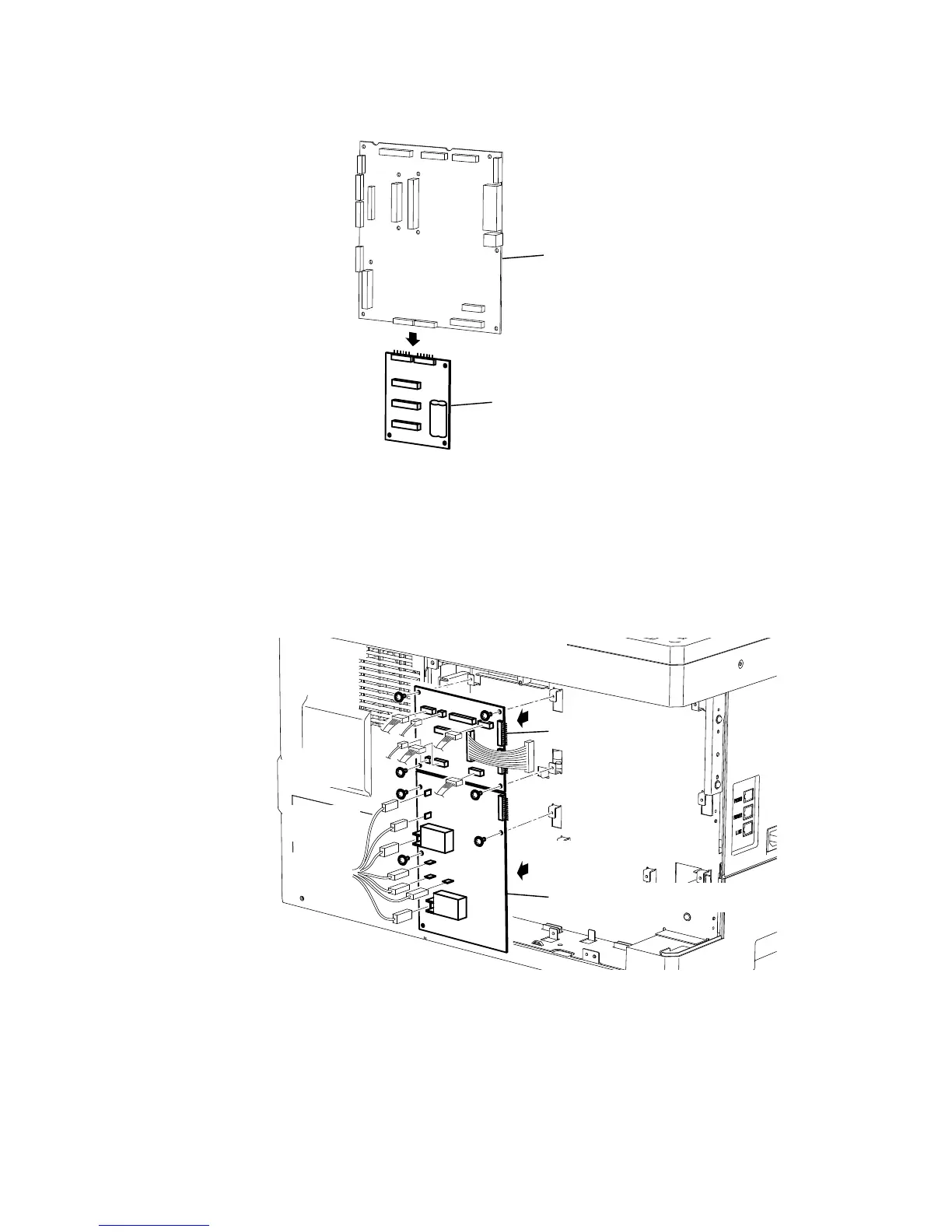

PCB CONNECT B
1. Remove the PCB MAIN. (See page 5-20)
2. Separate the PCB CONNECT B.
PCB MAIN
PCB CONNECT B
PCB CONNECT A / POWER-SUPPLY
1. Remove the PCB MAIN. (See page 5-20)
2. Disconnect seven connectors on the PCB CONNECT A.
3. Remove four PCB CONNECT A mounting screws, and then remove the PCB CONNECT A.
4. Disconnect seven connectors on the POWER-SUPPLY.
5. Remove three POWER-SUPPLY mounting screw, and then remove the POWER-SUPPLY.
PCB CONNECT A
POWER-SUPPLY
