Muratec F-315 Field Engineering Manual

5-38 5-38

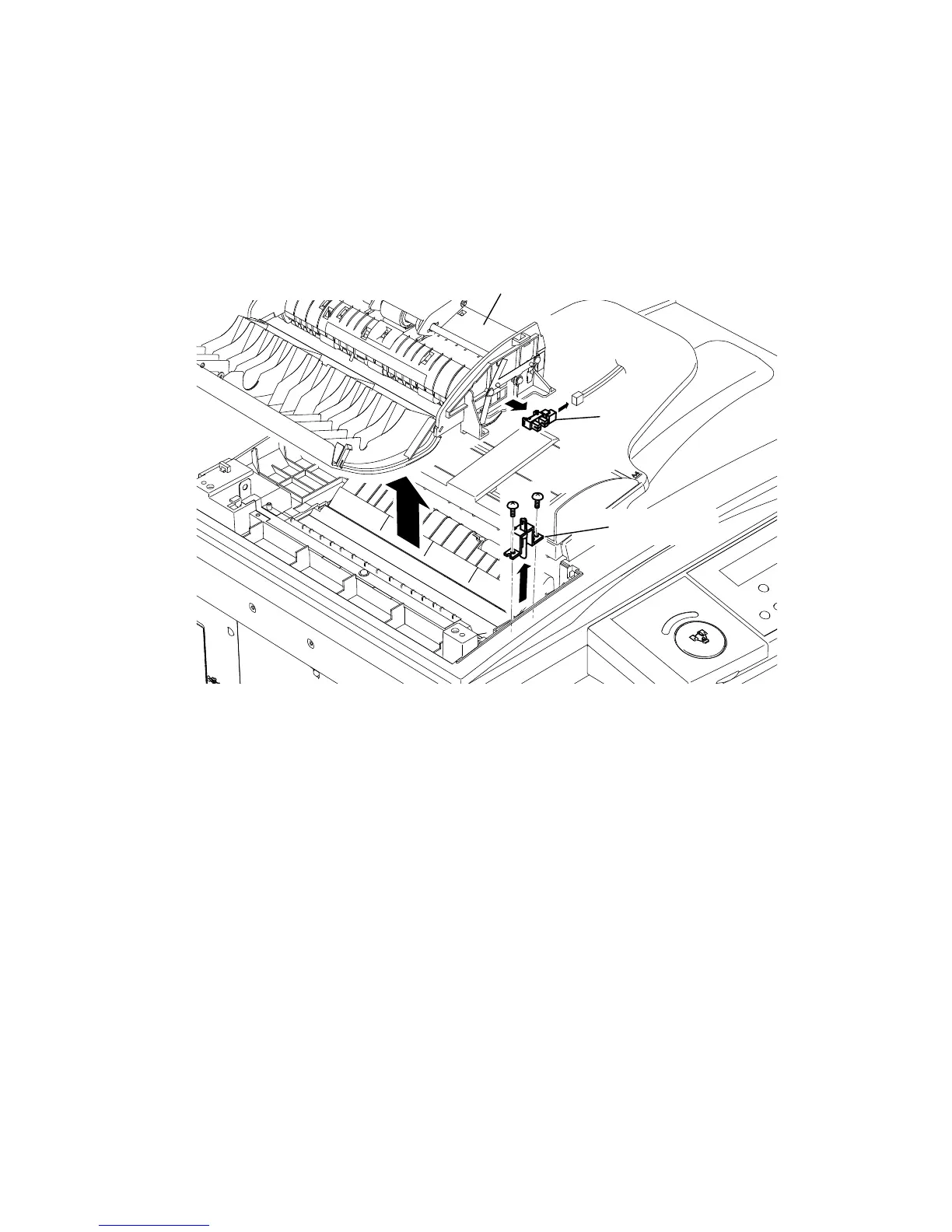

ADF PERMIT SENSOR (APS)
1. Remove the Cover TX side F. (See pages 5-10, 5-11)
2. Remove the Cover TX side B. (See pages 5-8, 5-9)
3. Remove the Bracket motor ADF mounting screw. (See page 5-33)
4. Remove two APS bracket mounting screws, and then remove the APS bracket.
5. Remove the Guide inner A. (See page 5-35)
6. Disconnect the connector on the APS and remove the SENSOR (APS).
APS bracket
Guide inner A
APS
