PLATE FRAME B GEARS (2nd CST)
1. Separate the Chassis cassette 2nd from the Main frame.
2. Pull out the Cassette 2nd.
3. Remove the Roller feed 2nd. (See page 5-56)
4. Remove the Plate frame B. (See page 5-57)
5. Remove one E-ring.
6. Remove the Spring C tracking.
7. Remove the Plate tracking.
8. Remove the Gear 48.
9. Remove one E-ring and remove the Shaft tracking, and then remove the Gear 34-0.8B.
10. Remove one E-ring, and then remove Gear 34-0.8C.

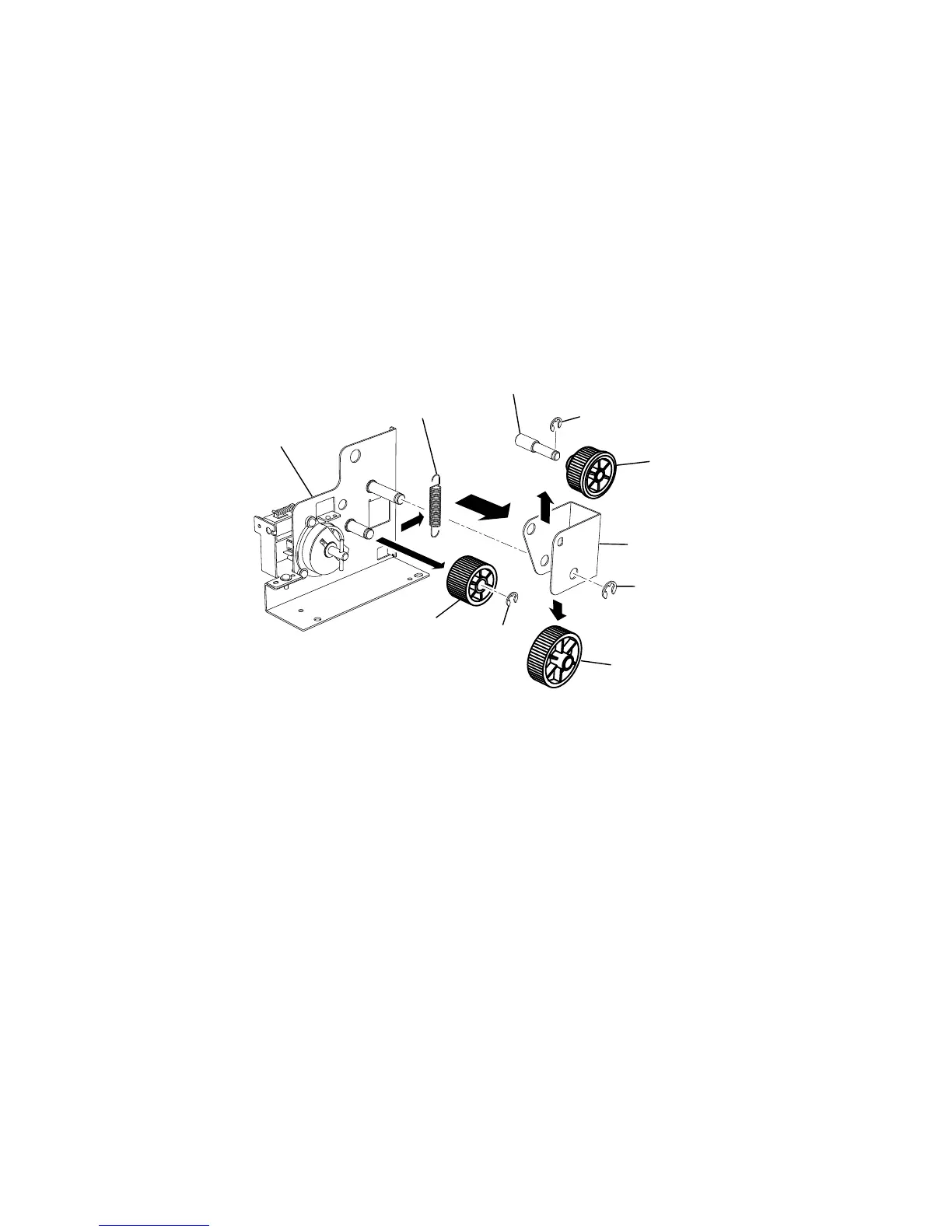

Gear 48
Gear 34-0.8C
Gear 34-0.8B
Shaft tracking
Plate frame B
Spring C tracking
Plate tracking
E-ring
E-ring
E-ring
