Muratec F-315 Field Engineering Manual

5-35 5-35

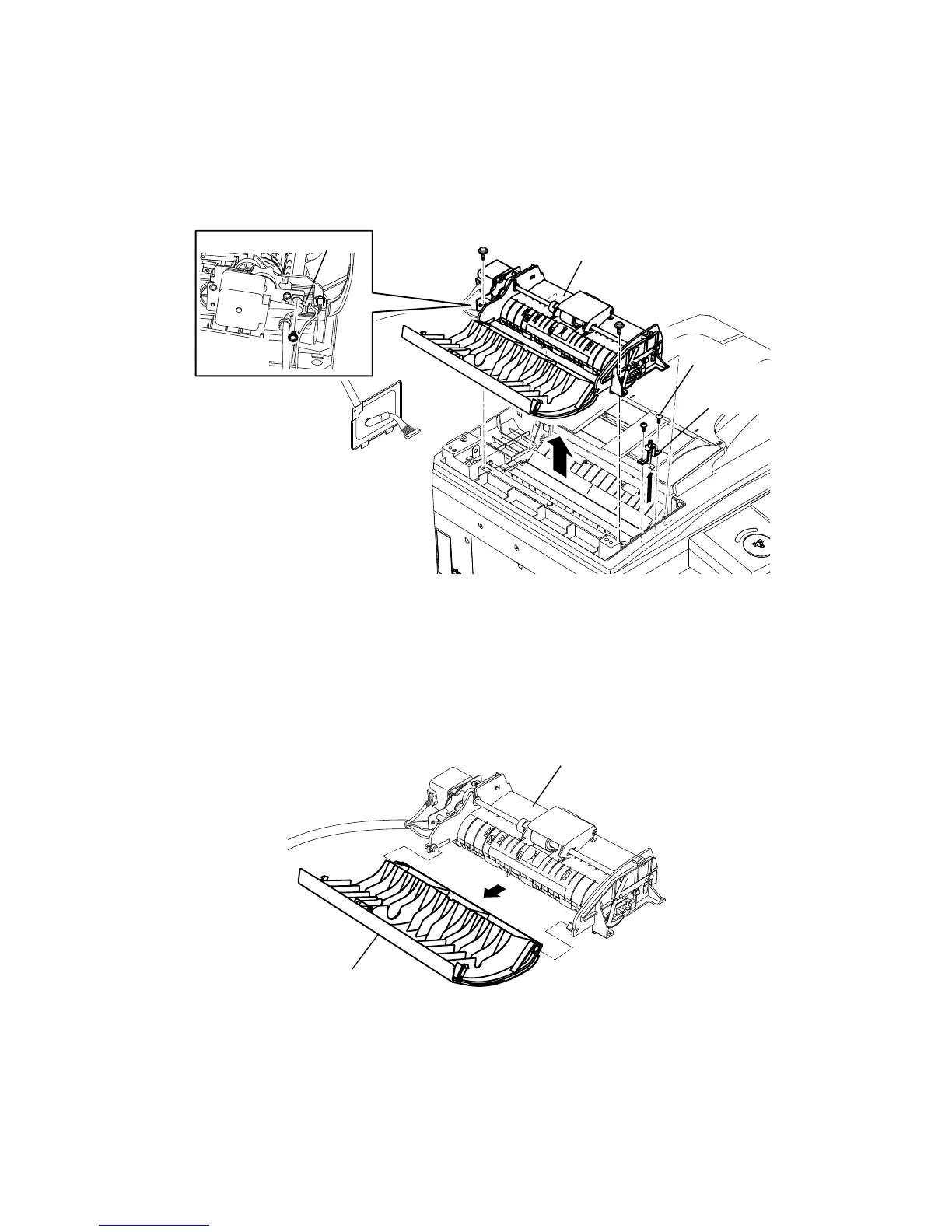

GUIDE INNER A
1. Remove the Cover TX side F. (See page 5-10, 5-11)
2. Remove the Cover TX side B. (See page 5-8, 5-9)
3. Remove the Ground wire as shown below.
4. Remove two APS bracket mounting screw and then remove the APS bracket.
5. Remove two Guide inner A mounting screw and the tab, and then remove the GUIDE INNER A.
Guide inner A
Ground wire
APS bracket
GUIDE OUTER
1. Remove the Cover TX side F. (See page 5-10, 5-11)
2. Remove the Cover TX side B. (See page 5-85-7, 5-9)
3. Remove the Guide inner A.
4. Remove the GUIDE OUTER.
Guide outer
Guide inner A
