Muratec F-315 Field Engineering Manual

5-19 5-19

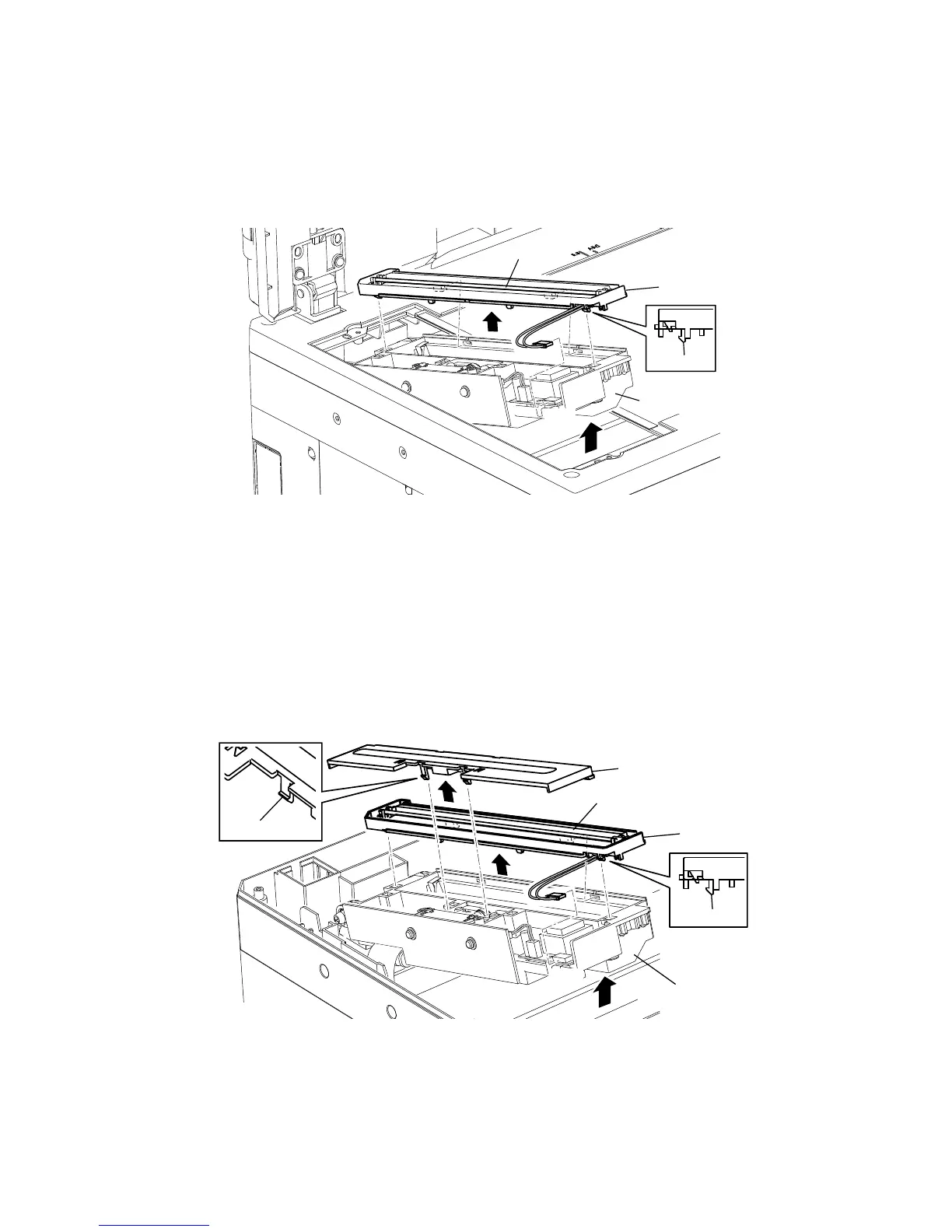

LAMP (MFX-1950)
1. Remove the Cover contact. (See page 5-17)
2. Remove the Cover lens. (See page 5-19)
3. Lift the front of the Frame scanner.
4. Disconnect the connector for the Lamp on the PCB INVERTER.
5. Release two locking tabs and two snap fits, and then remove the LAMP.
Case lamp
CN2
Lamp
Frame scanner
Snap fit
LAMP (F-315)
1. Remove the Cover ADF base. (See page 5-7)
2. Remove the Cover top PPF. (See page 5-13)
3. Remove the Cover lens.
4. Lift the front of the Frame scanner.
5. Disconnect the connector for the Lamp on the PCB INVERTER.
6. Release two locking tabs and two snap fits, and then remove the LAMP.
Frame scanner
Case lamp
Lamp
CN2
Sna
p
fit
Cover lens
Snap fit
