Muratec F-315 - Sensor Pss; Roller Pickup Mp; Pad Pressure Mp

5-51 5-51

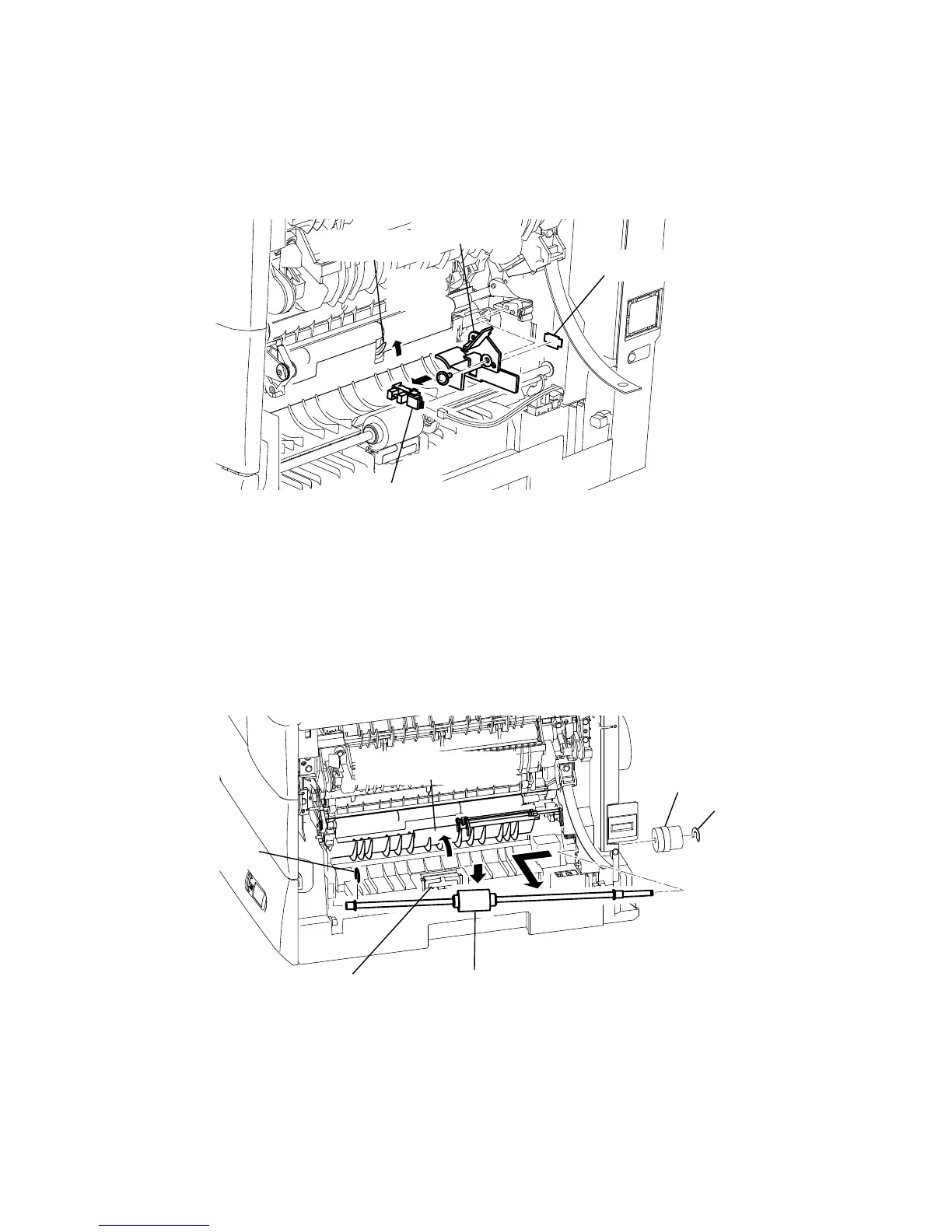

SENSOR PSS
1. Remove the Cover jam access.
2. Remove the Guide press B mounting screw, and then remove Guide press B while pulling up the Feeler
PSS.
3. Release the tab, and then remove the SENSOR PSS.
Feeler PSS
Guide press B
Sensor PSS
Sensor stopper
ROLLER PICKUP MP / PAD PRESSURE MP
1. Remove the Clutch (MG) (See page 5-42)
2. Remove the Cover jam access.
3. Remove two E-rings.
4. Lift the Guide paper MPDUP and press down the MP pressure.
5. Slide the ROLLER PICKUP MP to the left and remove.
Clutch(MG)
E-ring
E-ring
Roller pickup MP
MP pressure
Guide paper MPDUP
