5-70 5-70

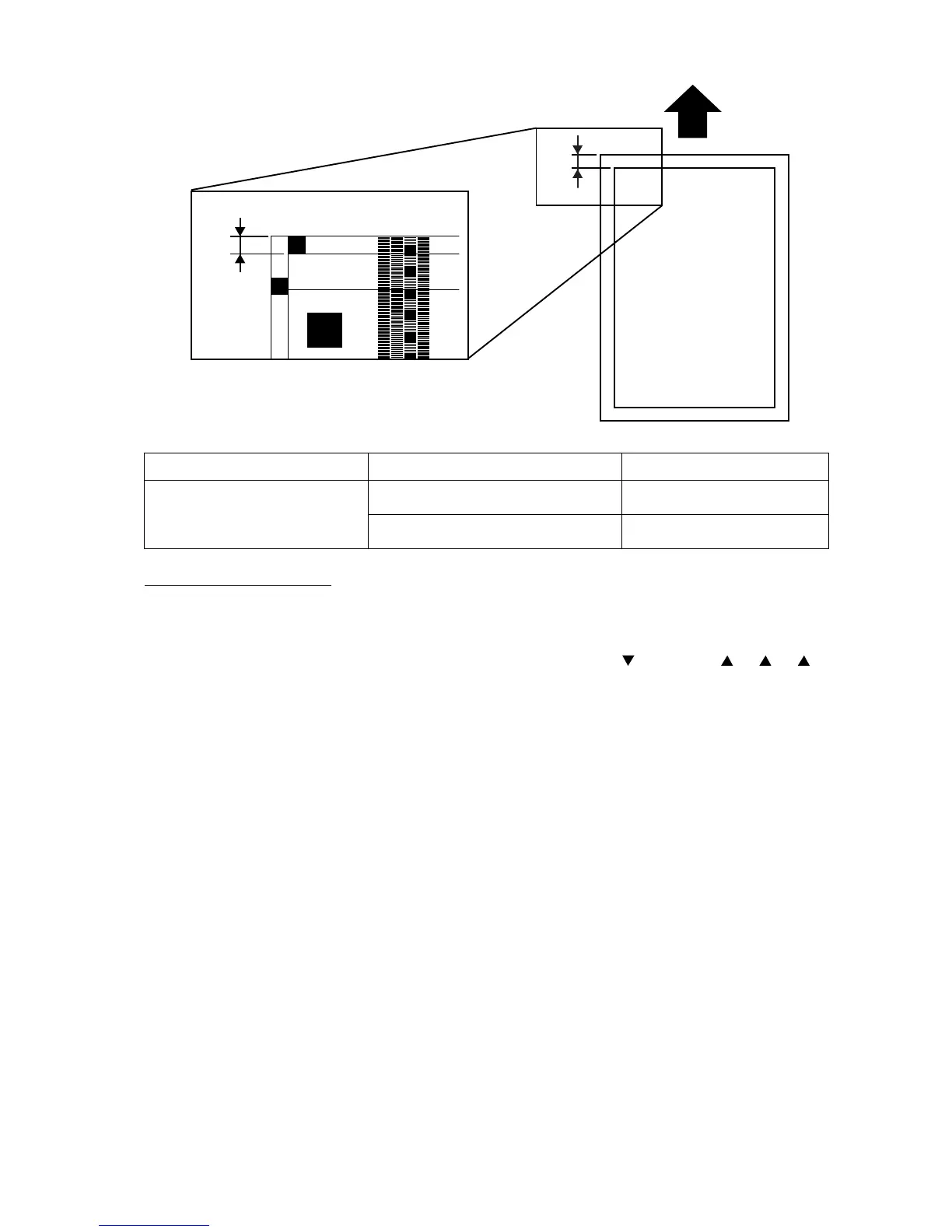

Printer registration (top)
A
A
Test pattern H
Adjust so that width A on the test pattern Checkered output falls within the following range.
Standard
Adjustment Tool Setting Range
Machine parameter: 180, 220
0 to 12.7 (mm)
(0.1 mm step)
10 ± 1.5 (mm)
Machine parameter: 240
-12.8 to 12.7 (mm)
(0.1 mm step)
Adjustment procedure
1. Load legal (for US version) or A4 (for European version) size paper to the cassette or tray you want to
adjust.
2. Use the Unique Switch 52 to adjust the printing margin to 0 mm. (bit 0, 1´0)
3. Printout the test pattern H : Ladder. (Press <Menu>, <*>, <0>, <9>, <
>, <Enter>, < >, < >, < > ,
<Enter>)
4. Check width A on the test pattern H: Ladder meets the specifications.
If width A falls outside the specified range, perform following steps to make the adjustment.
5. To use the “Printer registration mode,” press <Menu>, <*>, <4>, <3> and then select the cassette.
6. Select “Vertical Regi ”, and then adjust the “Vertical Registration”.
If the width A is shorter than the standard, increase value.
If the width A is longer than the standard, decrease value.
7. After you have finished the adjustment, you must reenter the setting of Unique Switch 52, you
changed in step 1.
Important: The setting you have entered in Printer registration mode is reflected in the following
Machine parameters.
Cassette 1: Machine parameter 180, 220, 240
Cassette 2: Machine parameter 181, 221, 241
Bypass Tray: Machine parameter 187, 227, 247
Duplex Unit: Machine parameter 188, 228, 248
Machine Parameter 180 to 188 –– Adjust the start point to printing. (Vertical)
Machine Parameter 220 to 228 –– Adjust the top margin.
Machine Parameter 240 to 248 –– Adjust the bottom margin
To Next Page
