FBS MOTOR (MFX-1950 only)
1. Remove the Cover platen. (See page 5-7)
2. Remove the Cover top. (See page 5-13)

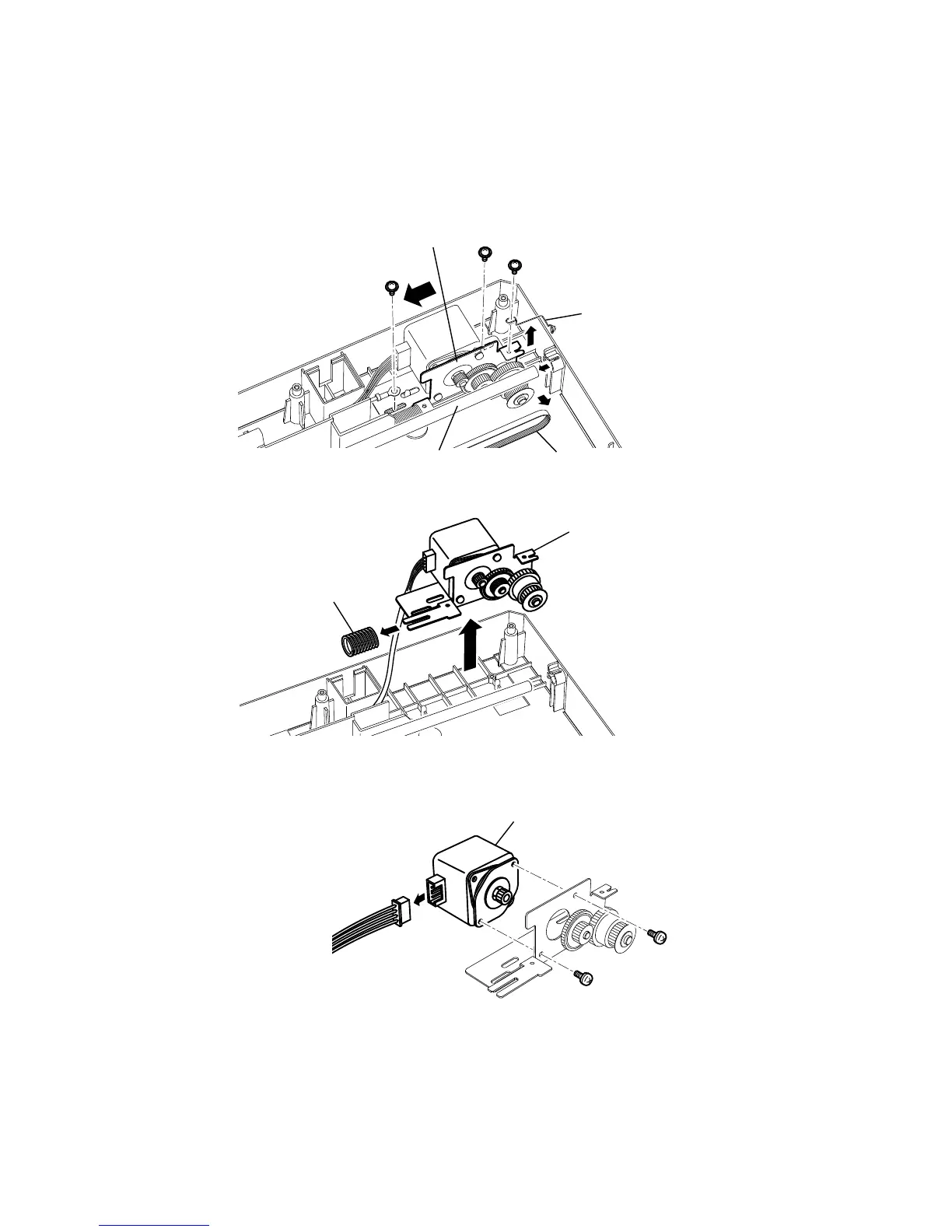

3. Remove three Bracket motor FBS mounting screws.
4. Remove the Shaft guide, and then remove the spring C FG.
5. Slide the Bracket motor FBS, and then remove the belt.
BeltShaft guide
Bracket motor FBS
Spring C FG
6. Remove the Spring C tension, and then remove the Bracket motor FBS.
Spring C Tension
Bracket motor FBS
7. Remove two FBS motor mounting screw and disconnect the harness, and then remove the FBS
MOTOR.
FBS Motor
