Muratec F-315 Field Engineering Manual

5-27 5-27

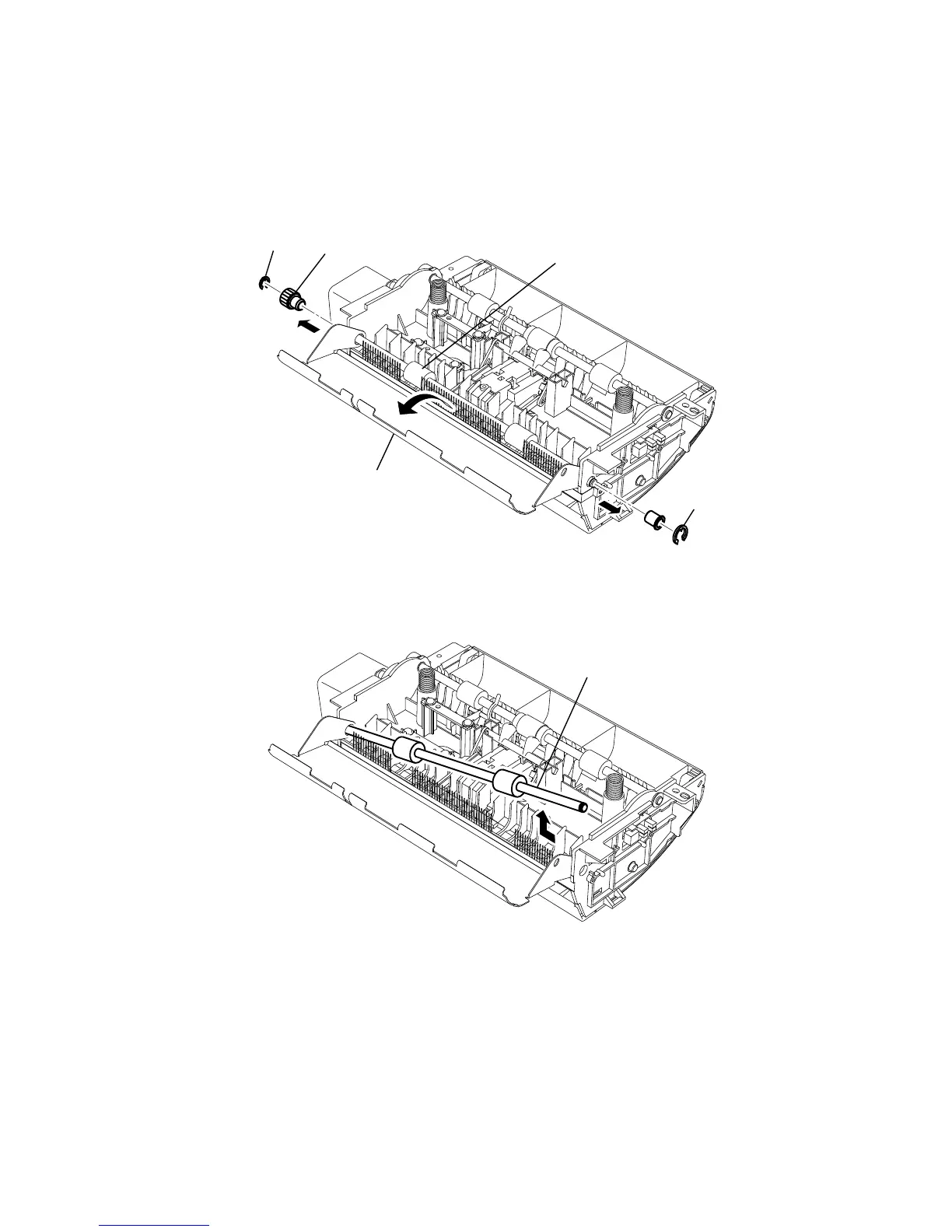

ROLLER EXIT
1. Remove the Guide inner A. (See page 5-35)
2 Remove the Spring P earth. (See page 5-255-25)
3. Open the Guide inner B.
4. Remove two E-rings and then remove the Gear 27 0.5 ONE WAY and one bearing.
E-ring
E-ring
Guide inner B
Roller exit
Gear 27 0.5 ONE WAY
5. Slide out the ROLLER EXIT.
Roller exit
