5-79 5-79

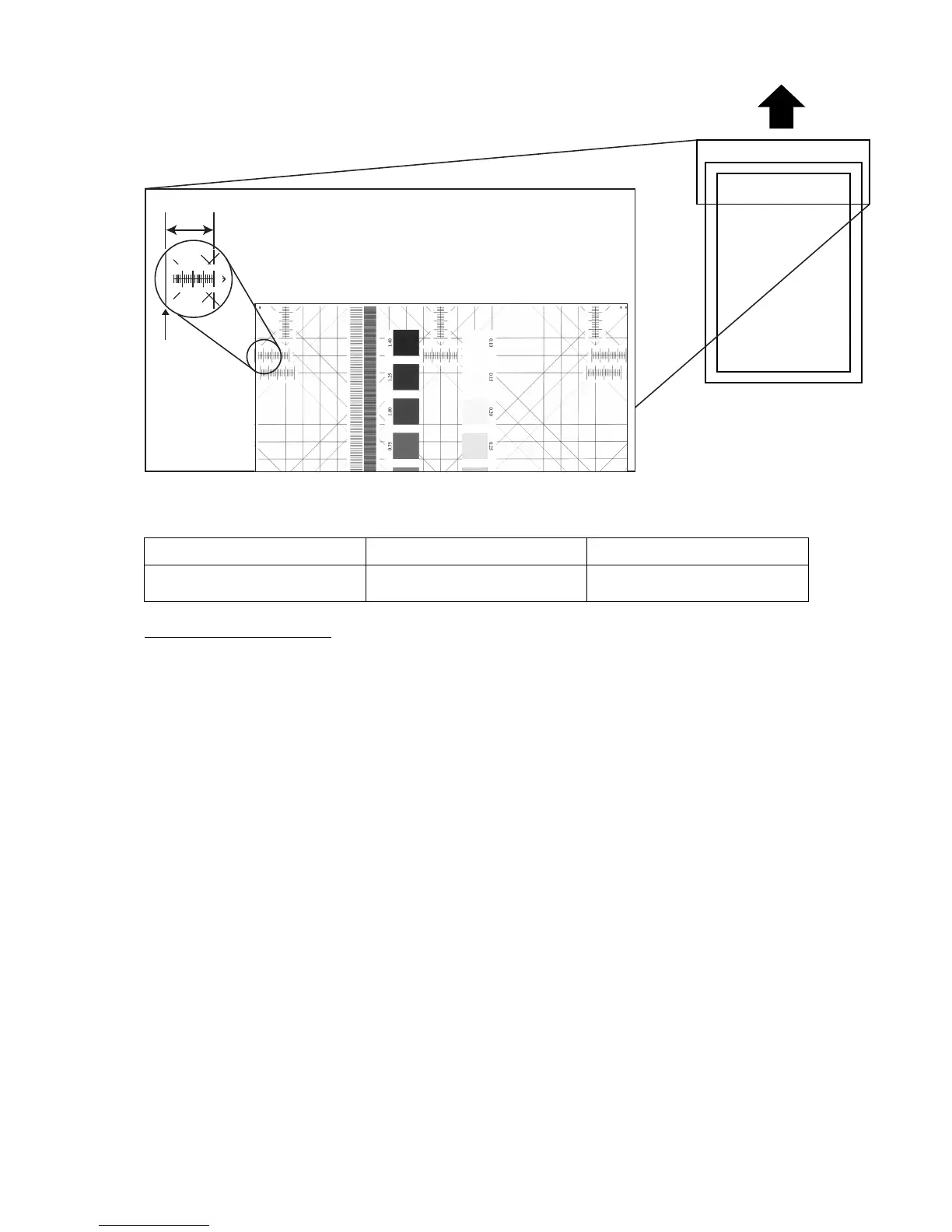

ADF registration (side)
Test Chart
No.2003-01
A
Edge of
the paper
Note: This adjustment must be made after the adjustments of printer registration (top and side) of the 1st cassette
and ADF zoom adjustments (vertical and horizontal) have been made.
Standard
Adjustment Tool Setting Range
0 ± 2.9 (mm) Machine parameter:010
– 10.76 〜 10.76 (mm)
(0.0847 mm step)
Adjustment procedure
1. Load legal (for US version) or A4 (for European version) size paper to the 1st cassette.
2. Place a Test Chart on the ADF.
3. Make a copy of it in the 1st cassette with 100 % magnification.
4. Check that the difference of width A and the copy of A (A’) meets the specifications.
If the difference falls outside the specified range, perform the following steps to make the adjustment.
5. Enter Machine Parameter mode. (Press <Menu>, <*>, <0>, <0>)
6. Adjust the setting of Machine Parameter 010 to meet the specification.
If the width A is shorter than the standard, decrease value.
If the width A is longer than the standard, increase value.
To Next Page
