RJ-900X series
OPERA
TION MANUAL
T
roubleshooting
6-19

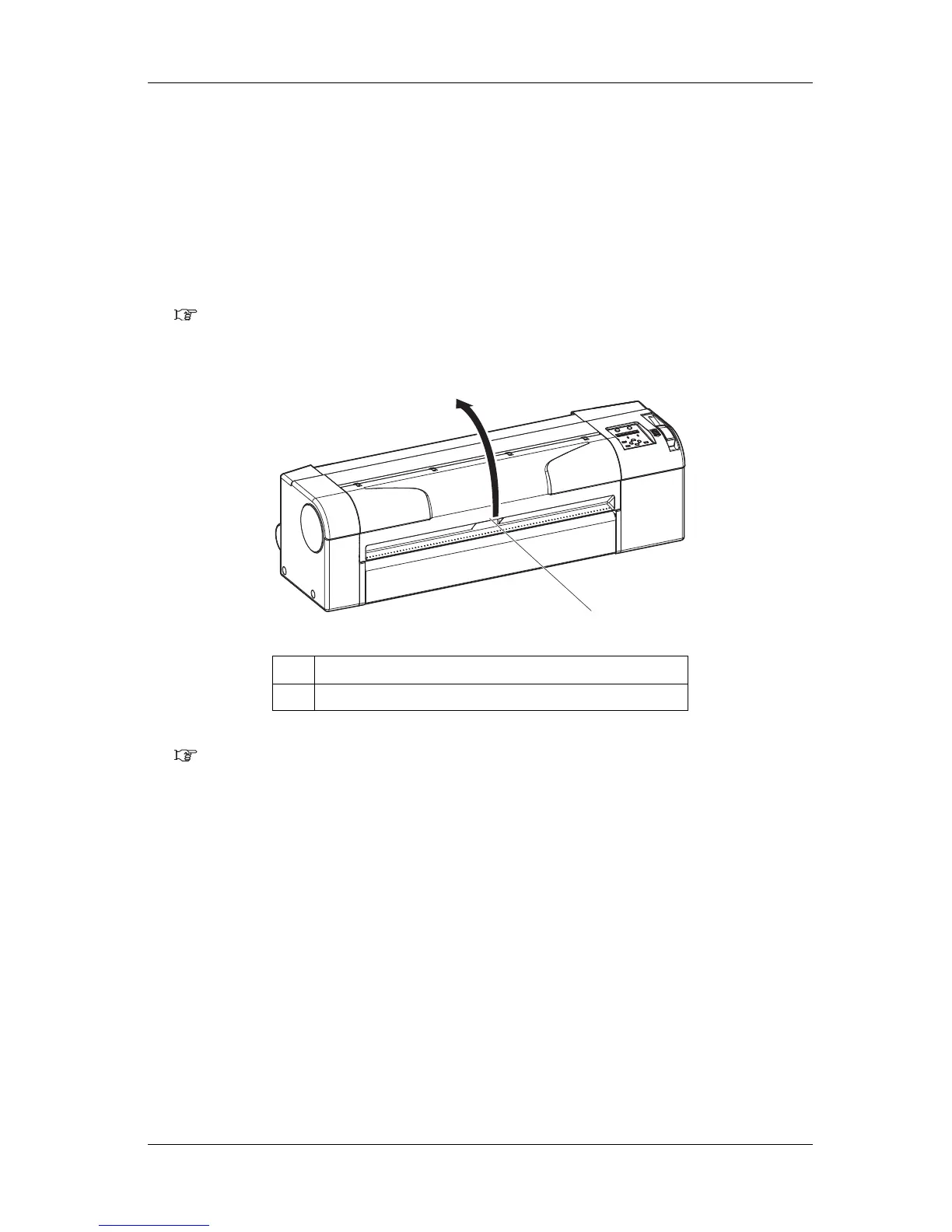

6.3
The media is jammed
When the set media is jammed, remove it
according to the following procedure.
6.3.1
Roll media
1.
T
urn OFF the power of the printer
.
3.2.2
T
urning the power OFF
2.
Open the fro
nt cover
.
3.
Change the head
height to
“
High
”
.
4.2.5
Head height adjustment
No.
Name
1
Front cover
1
220
222
Table of Contents
Default Chapter
3
Important Notice
3
Warranty Limitations
5
About this Manual
6
Contents of the Manual
6
Manual Configuration
6
Table of Contents
9
1 Safety Instructions
13
Warnings, Cautions and Notes
14
Important Safety Instructions
15
Warning Labels
18
Handling the Operation Procedure Labels
18
Locations and Types of Warning Labels
18
Operation Procedure Labels
19
Handling the Operation Procedure Labels
19
Locations and Types of Warning Labels
19
2 Product Overview
21
Features
22
Name of the Parts and Functions
23
Front Section (RJ-901X)
23
Front Section(RJ-900X)
24
Rear Section (RJ-901X)
25
Rear Section (RJ-900X)
26
Operation Panel
27
Indicator Display
30
Contents of Indicator Display
31
Printer Status
32
Normal
32
Setup Menu Display
32
Changing Printer Status
32
3 Before Using
35
Power Cable Connection
36
Turning the Power ON/OFF
39
Turning the Power on
39
Turning the Power off
40
Installing Ink Cartridges
42
Media Handling
45
Roll Media Loading
45
Loading Roll Media
49
Loading Sheet Media
54
Releasing the Partial Function of Pressure Arms
59
Setting Media Type
60
Testprint
63
Setup Print
65
Nozzlecheck
66
Palette Print
67
Maintenance
68
Connecting the Printer to PC
69
System Requirements
69
Selecting Cables
69
Connecting Network Interface Cable
70
Connecting the USB Cable
71
Setting IP Address
73
Installing/Unistalling Printer Driver
75
Printer Driver
75
Installing the Printer Driver (for Network Connection)
75
Installing the Printer Driver (for USB Connection)
84
Uninstalling the Software
90
Changing the Rated Value of Print Settings
94
Prioritized Driver Settings
96
Creating LPR Port
98
4 Handling the Printer
105
Print Flow Chart
106
Media
107
Cautions on Handling Media
108
Precaution on Storing Media
108
Printing Area
109
Head Height Adjustment
110
Media Eject Tray Setting
112
Setting the Printer Driver
113
Printer Driver Setup Procedure
113
Printer Driver Setup Items
113
Basic Setup Menu
114
Advanced Setup Menu
115
Option Menu
116
Environment Setting Menu
117
Utility Menu
118
Menu Setup on the Operation Panel
119
Setup Menu Items
119
Mediaset Menu
120
Testprint Menu
120
When Dedicated Media Is Set in Media Item
123
When "User1 to User4" Is Set in Media Item
125
Media Feed Compensation Menu
127
Adjust Print
133
Initializing Adjust Print
138
Command Menu
141
Pensetup Menu
142
When "Panel" Is Set in the Penprior. Item
143
Layout Menu
144
Function Menu
146
Network Menu
147
Utility Menu
148
Idle Auto Cleaning
151
Pre-Feed Amount Menu
151
When "Yes" Is Set at the Initial Item
151
Cleaning Types
152
Pre-Printing Mode Auto Cleaning
152
Printing Mode Auto Cleaning
152
Consumption Menu
153
Spitting Pass Count Menu
153
4.5.1.10 Cleaning Menu
154
Menu Setup Procedure
155
Operating from the Operation Panel
158
Media Feed
158
Stopping Printing Operation
159
Cut Media
159
Print Mode Selection
161
Changing Media Feed Compensation
162
Pausing Printing
164
5 Maintenance
165
Replacing Consumable Components
166
Replacing Ink Cartridges
166
Replacing Roll Media
169
Replacing Razor Blade
174
Replacing Waste Fluid Box
180
Replacing Flushing Box Sponges
183
Cleaning the Printer
188
Cleaning the Outer Case
188
Cleaning Inside the Printer
189
Head Cleaning
191
Cleaning Cleaning Wiper
192
Transfer and Transportation
197
Transferring the Printer
197
Transporting the Printer
200
6 Troubleshooting
203
Mulfunction and Failure of the Product
204
Problem at Installation and Introduction
204
If You Have Connected Using the USB Cable before Installing the Driver
206
Cannot Generate Graphics at All
209
Media-Related Troubleshooting
211
Printing-Related Troubleshooting
214
Error Messages
216
Status Messages
216
Error Message Display and Remedies
217
Data Error Display and Remedies
218
Command Error Display and Remedies
219
Error Requiring a Restart
220
The Media Is Jammed
221
Roll Media
221
Sheet Media
224
7 Appendix
227
Product Specifications
228
Printer Specifications
228
Printing Operation Specifications
230
Interface Specification
233
USB Interface Specification
233
Network Interface Specification
234
Options/Supply List
235
