2.2 Name of the parts and functions
Names and functions of each part are explained.

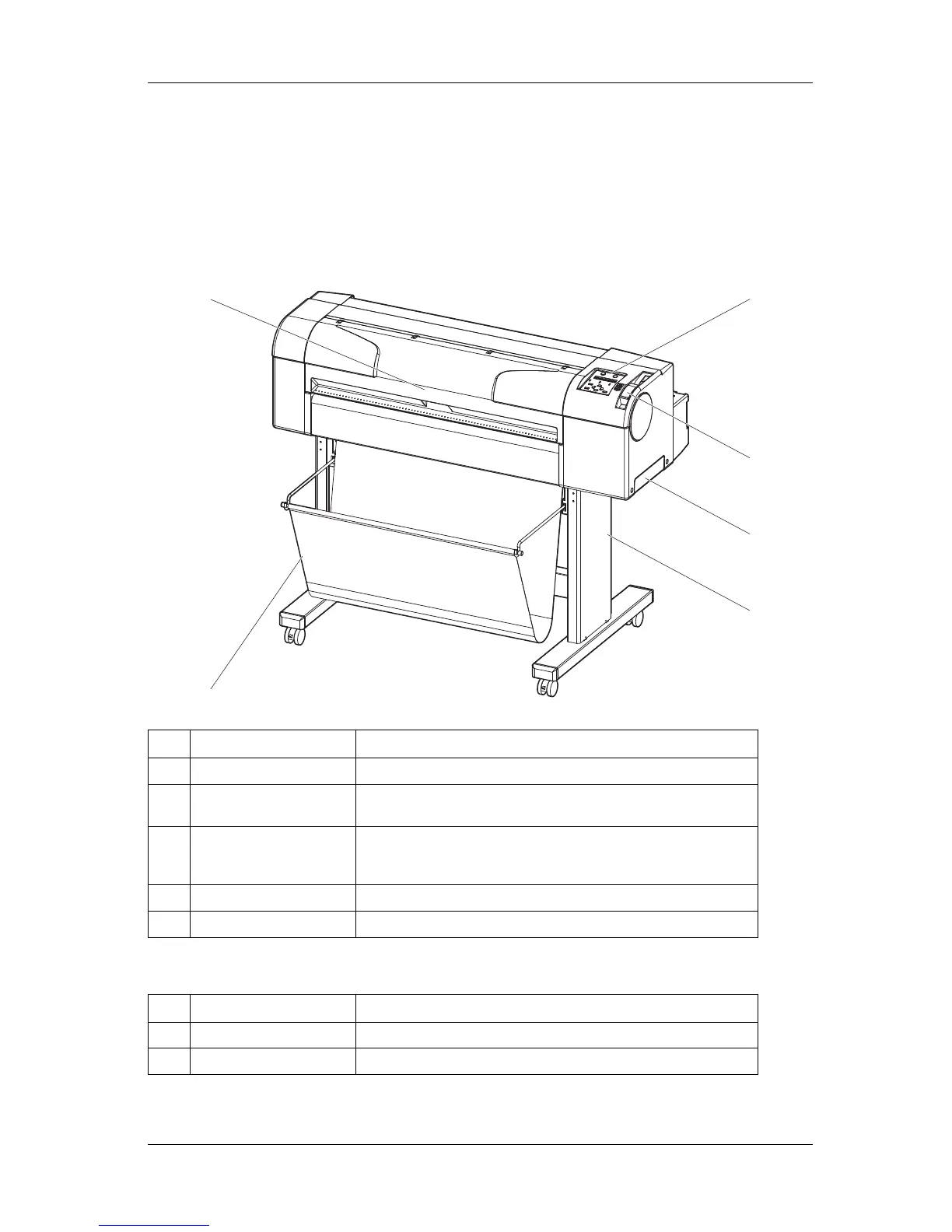

2.2.1 Front section (RJ-901X)
Option parts
No. Name Function
1
Media loading lever It is the lever for fixing or releasing the media.
2
Operation panel Operation condition setting, printer display and various function setting are
performed.
3
Front cover It is the cover for protecting user from coming in contact with the driving
mechanism during the printer operation. It is opened and closed during
Razor blade replacement and paper jam. It is normally closed.
4
Waste fluid box It is the box for collecting waste ink discharged from the printer.
5
Media eject tray It is a part of the stand. It holds the output media.
No. Name Function
6
Stand It is used when installing the printer on leveled floor.
7
Media eject tray It is a part of the stand. It holds the output media.
