82 3.5 Loading media

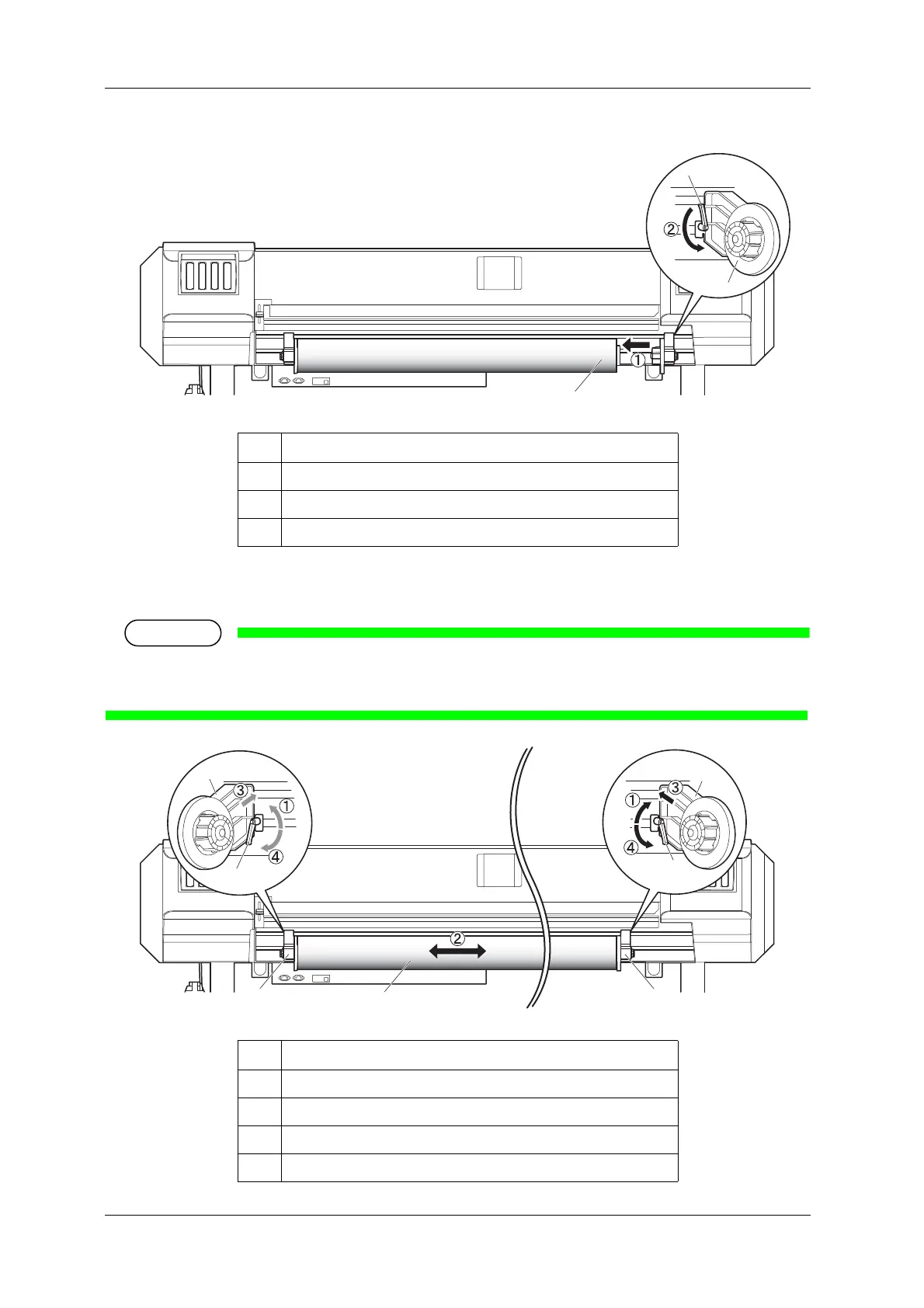

4. Attach Roll media holder (Right) to the roll media() and tighten Fixing lever().
5. Loosen the fixing levers of the right and left roll media holders (), move the roll media to the center
(), press Roll media holder toward the printer () and fix the levers ().
• When tightening Fixing lever, press Roll media holder toward the printer. If you do not press Roll
media holder, Fixing lever may not be completely locked because of the weight of the roll media.
No. Name
1 Roll media holder (Right)
2 Roll media
3 Fixing lever
No. Name
1 Roll media holder (Left)
2 Roll media holder (Right)
3 Roll media
4 Fixing lever
To Next Page
