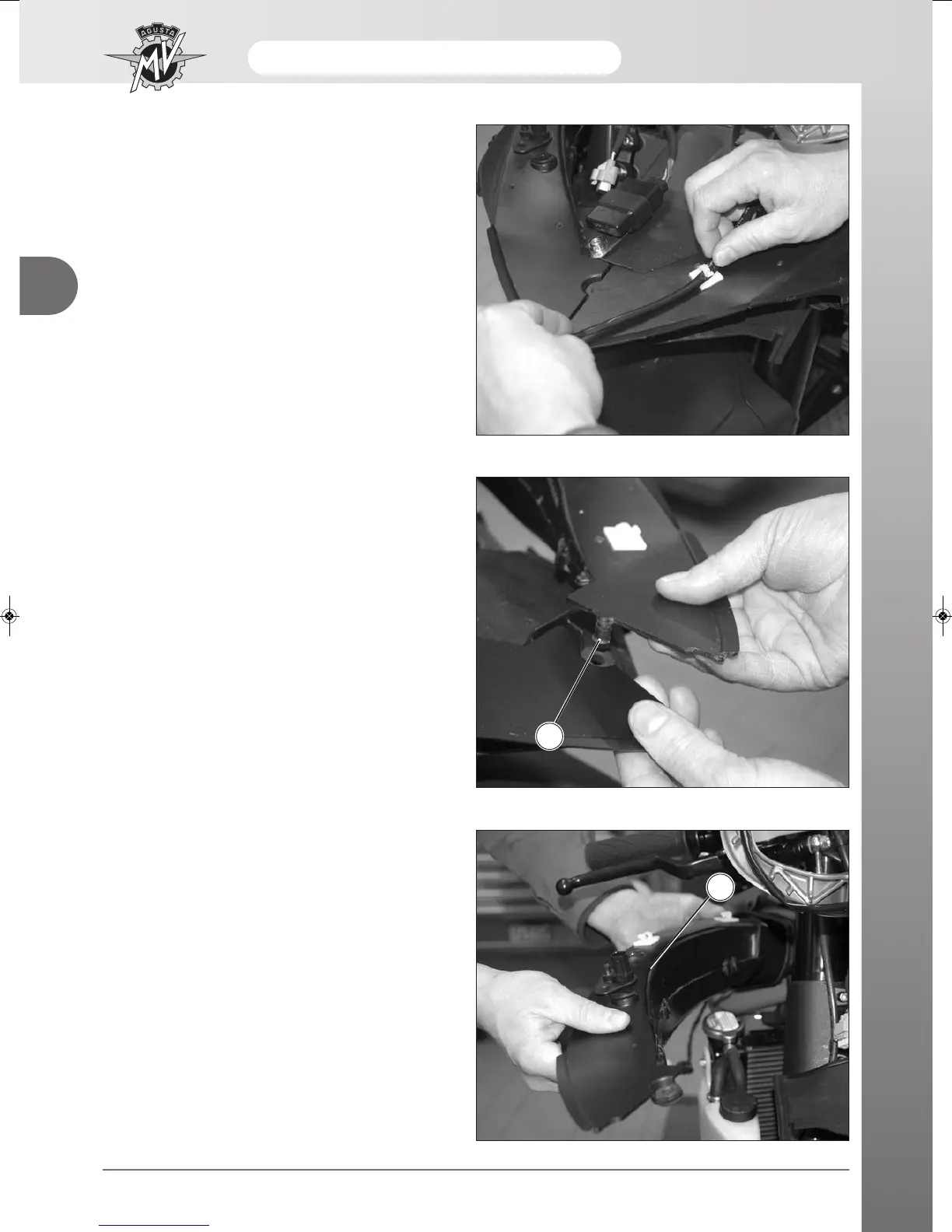

From the left duct, remove the left direction indicator
light electrical cable from the guides.
Left and right air intake conduit removal
Unhook the connector pin (1) on the ducts.
Remove the right air intake conduit.
Proceed with disassembly of the right air duct (2), turn-
ing the front part outward.
Repeat operations for the left duct.
- 18 -
