Suspension and wheels

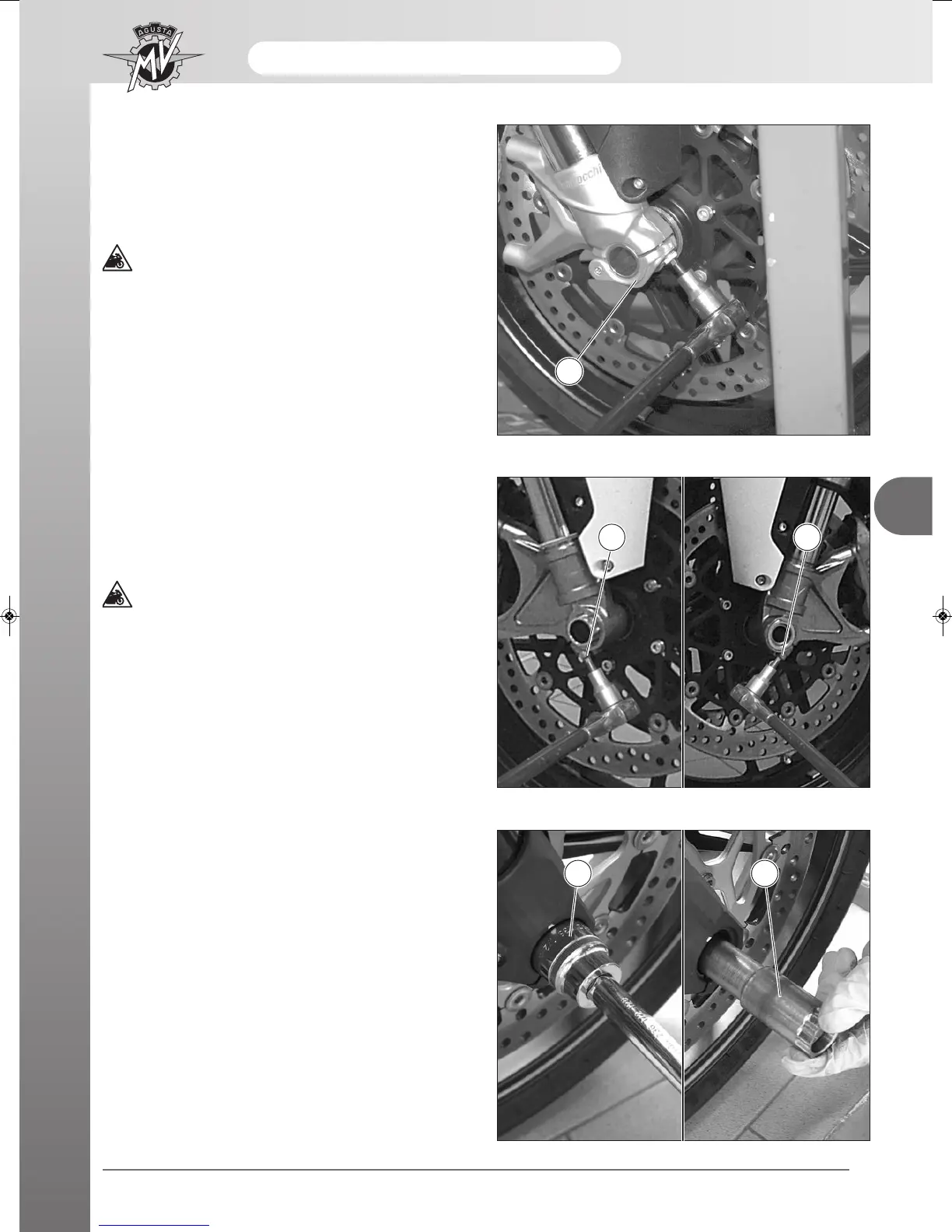

Front wheel removal
(F4 S - F4 FT - F4 MY13 - F4 R)
Remove the screw on both front wheel/fork attach-
ments.
During this operation, it is necessary to
support the wheel.
Open the terminals (1) and remove the wheel with its
spindle.
1
1 2
Front wheel removal (F4 RR)
Loosen the two screws (1) on the fork foot on the right
side of the vehicle.
During this operation, it is necessary to
support the wheel.
Loosen the two screws (2) on the fork foot on the left
side of the vehicle. Leave the screws partly tightened
to facilitate the removal and tthe subsequent refitting of
the axle.
Loosen the pin (3) with the Ø 26 bushing and remove
the wheel spindle (4).
Remove the wheel.
4 3
