Suspension and wheels

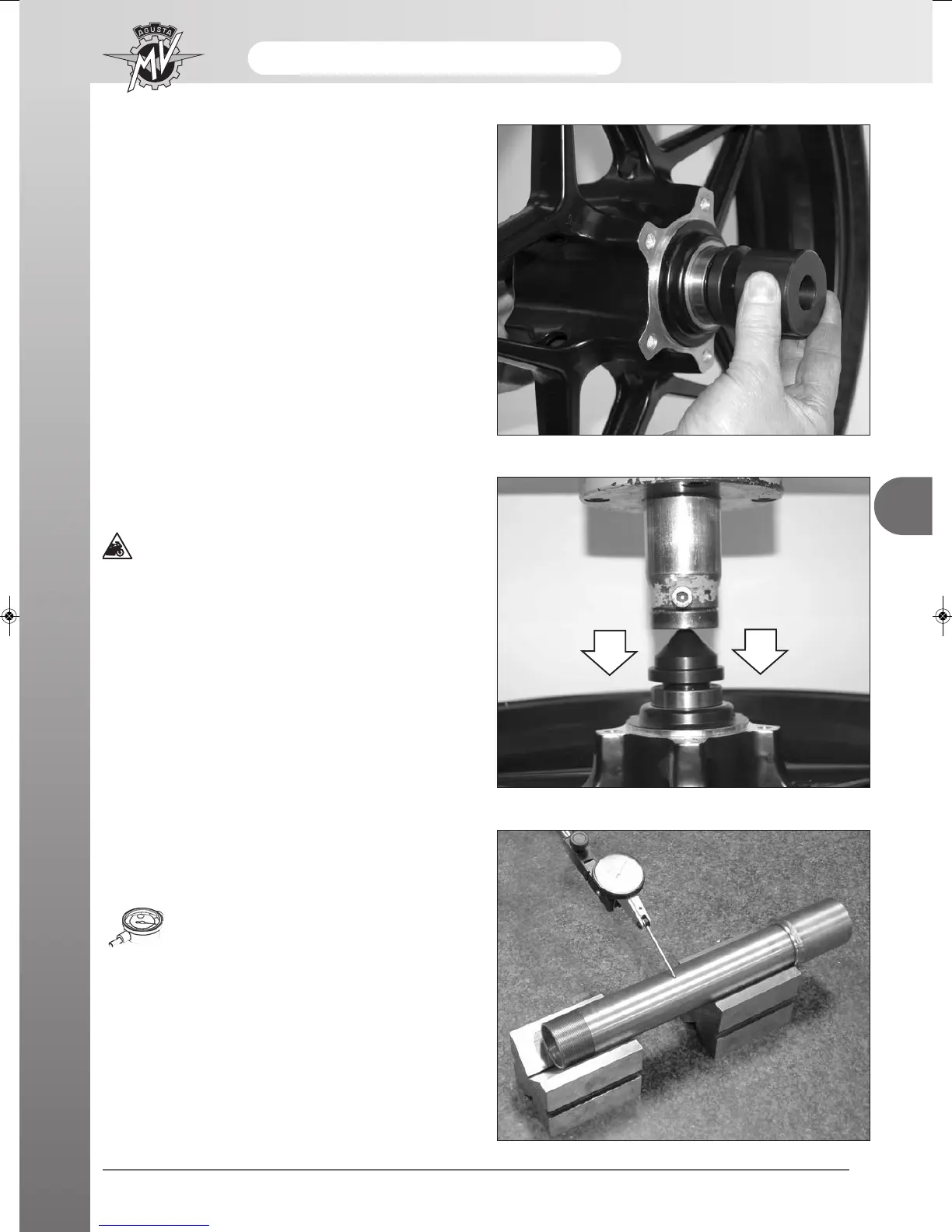

Insert the guide spacer and utilising a press, squeeze
down the bearings.
Proceed as illustrated in the figure.
Attention: the wheel bearings should be
mounted with little interference but should
the action of the press be blocked in any way,
release the press.
Having completed the assembly, check that the alu-
minium spacer does not have axial play.
Assemble the wheel spindle and carry out again the
rolling check by rotating the wheel.
Wheel spindle check
Place the wheel spindle on two v-prisms on a flat sur-
face.
Utilising a dial gauge, check that the eccen-
tricity in the central part does not exceed
0.05 mm.
