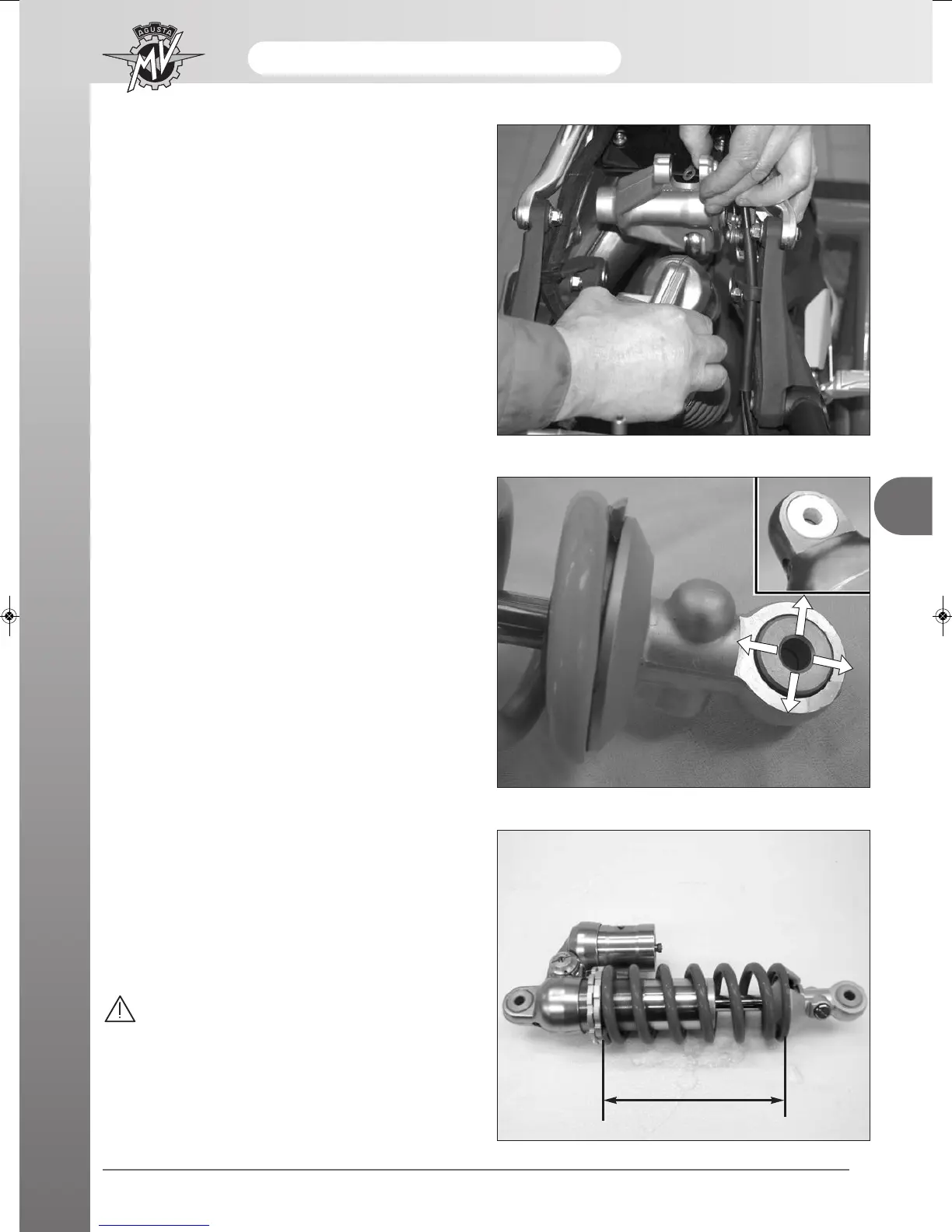

Rear shock absorber test
Check that the lower and upper bolt holes do not have
axial (A) and radial (B) play.
A
B
Lift the rocker and extract at the same time as the com-
plete shock absorber.
Check the length of the rear shock absorber spring.
Standard spring adjustment (A):
- F4 S - FT - F4 R MY12 - F4 MY13: A = 170,5 mm
- F4 R MY13 - F4 RR: A = 161 mm
Check the functioning of the adjusters.
The shock absorber contains high-pressure
gas. Do not touch the valve of the shock
absorber tank. Do not try to disassemble the
shock absorber.
