Suspension and wheels
F
- 66 -

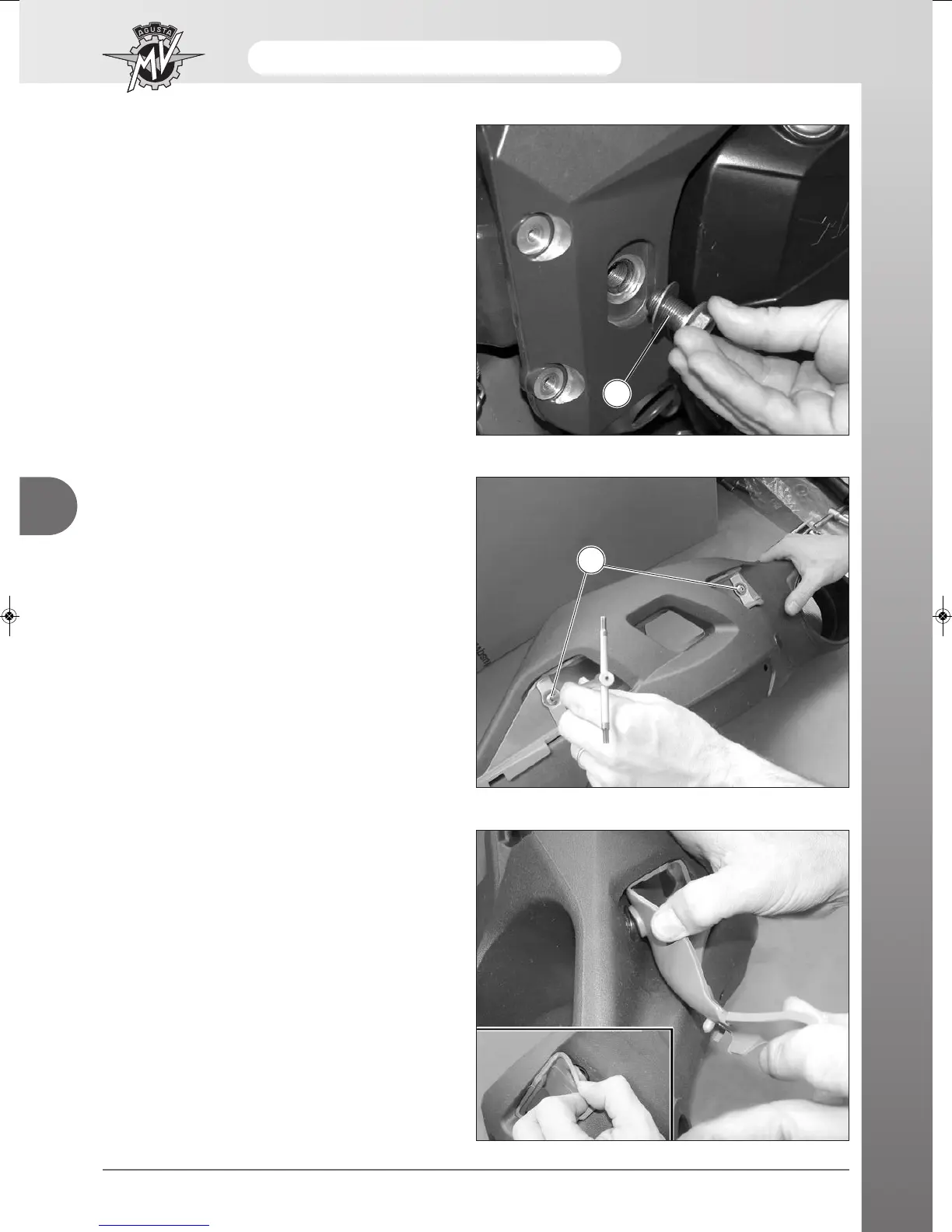

Swingarm axle removal
Before removing the swingarm axle, loosen the sus-
pension rocker pin and the two engine pins.
Remove the screw (1) on the left side of the vehicle.
Remove the washer and push out the axle manually.
Support the swingarm so that it does not drop to the
ground.
1
Upper chain guide removal
Remove the two screws (1) and the relative plates.
Lift up the front part of the chain guide to remove it
from the swingarm (see figure).
Repeat the operation on the rear part, where the screw
seat is situated in the swingarm.
1
