Suspension and wheels
F
- 67 -

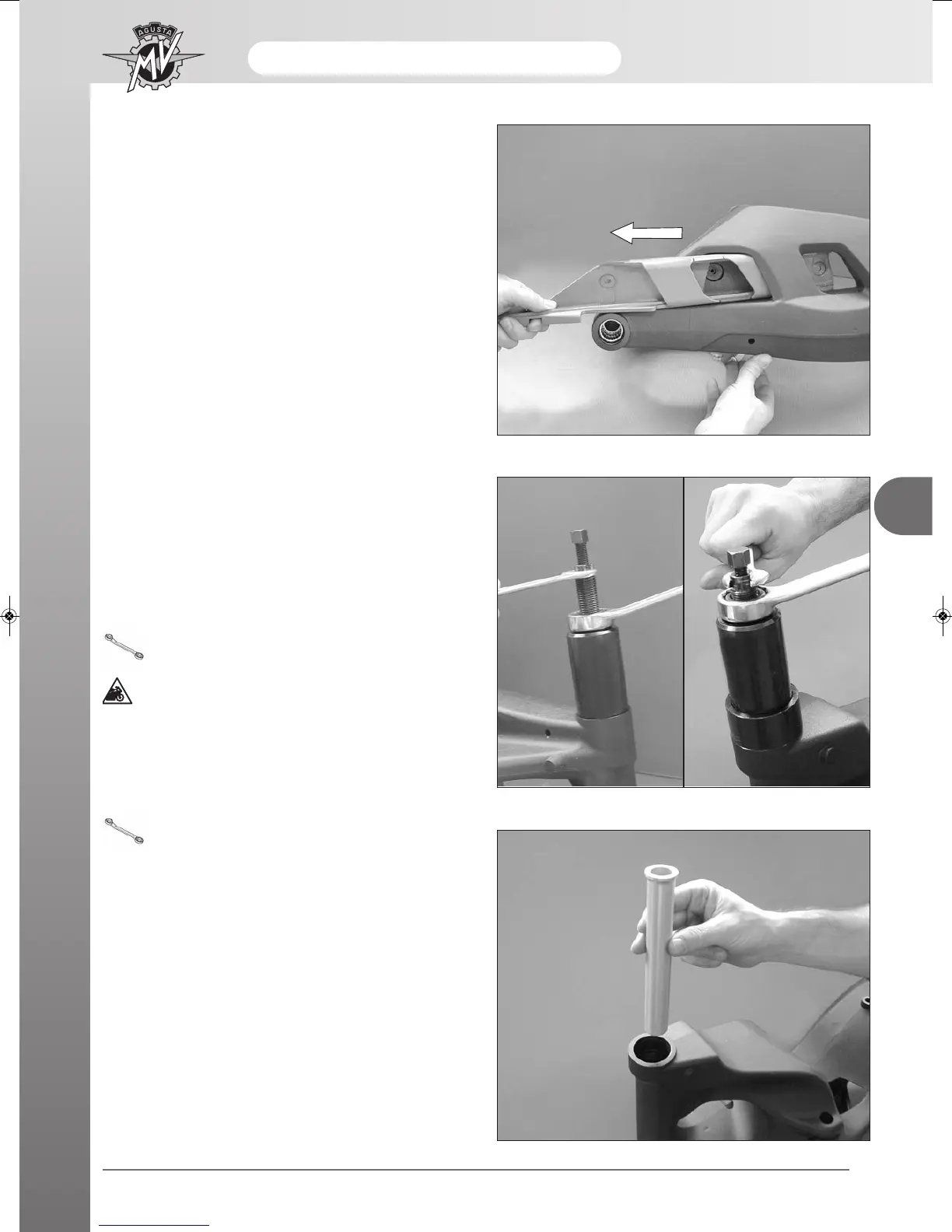

Slide out in a forward position as shown in the figure.
When reassembling, proceed in the reverse order of
removal ensuring the correct positioning of the front
reference peg.
Bearings overhaul
If it is necessary to substitute the bearings of the swin-
garm because of excessive play, operate as follows:
Remove the right and left spacer.
Remove the Seeger retaining ring on the right side of
the swingarm.
Remove the anti-dust seal on the left side.
Utilising the special tool, remove the two roller bearing
units.
Special tool N. 800092860 LEFT SIDE
Mount the tool so that both roller bearings are
removed.
Utilising the special tool press on both ball bearings
and extract them.
Operate in the same way for the bearings on the left
side.
Special tool N. 800092860 RIGHT SIDE
Extract the spacer from the right side.
Check the condition of both bearing seats and the seat
of the spacer.
If the spacer is in good condition, reinsert it onto the
fork from the right side.
