Suspension and wheels
F
- 68 -

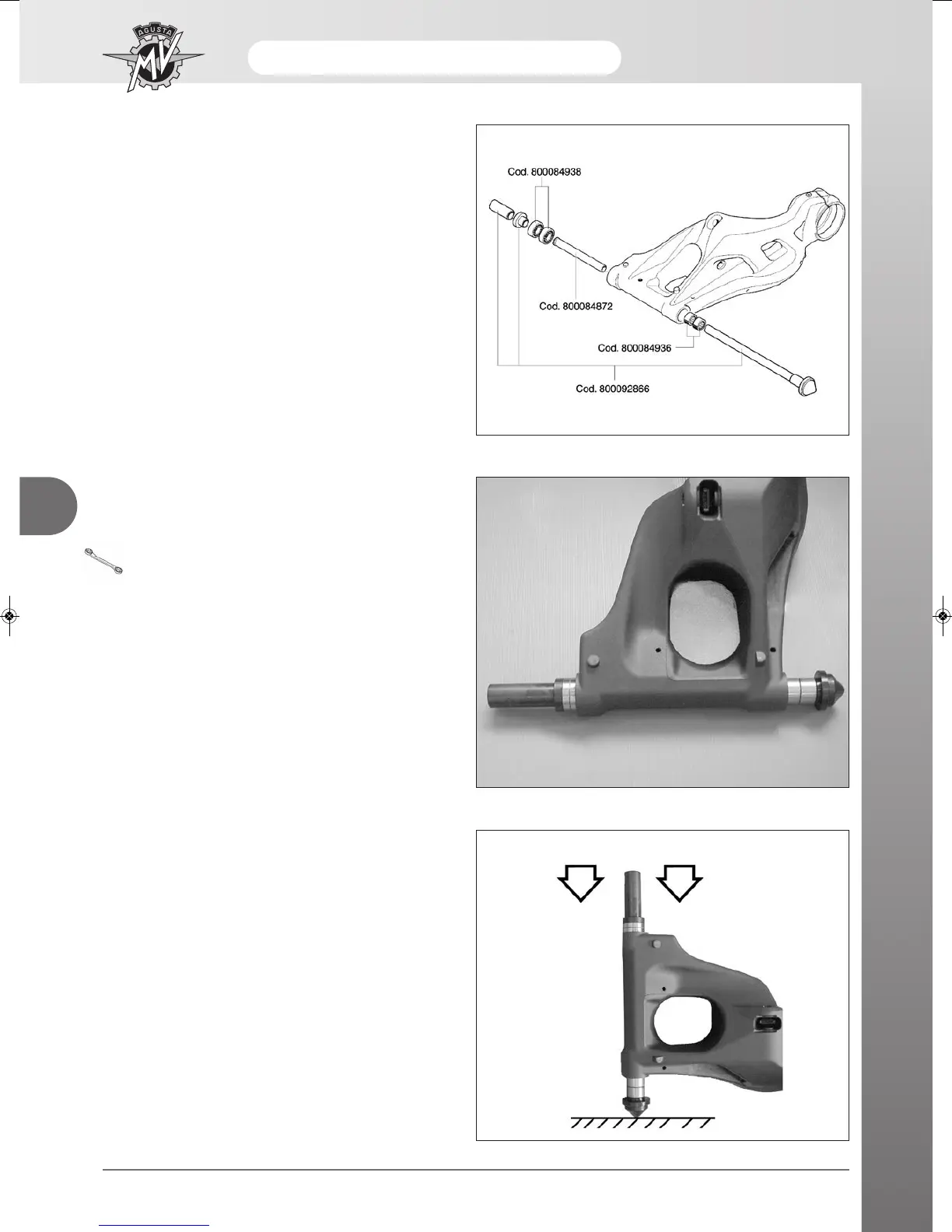

Fitting the bearings and the roller cases on the rear
swingarm.
Take two new roller cases (Part No. 800084936) and
two new ball bearings (Part No. 800084938).
Preassemble the 2 roller cases (Part No. 800084936)
on specific tool Part No. 800092866 (see figure).
Fit the assembly to the left side of the swingarm.
Assembly the inner bearing spacer (Part No.
800084872) and the two ball bearings (Part No.
800084938) on the tool Part No. 800092866 on the
right side of the swingarm (see figure).
Complete the assembly by fitting the two bushings
relating to the tool Part No. 800092866 on the right
side of the swingarm.
Special tool no. 800092866
Utilising a press fit the bearings and the roller bearing
units (see figure).
