Cooling system
- 7 -
L

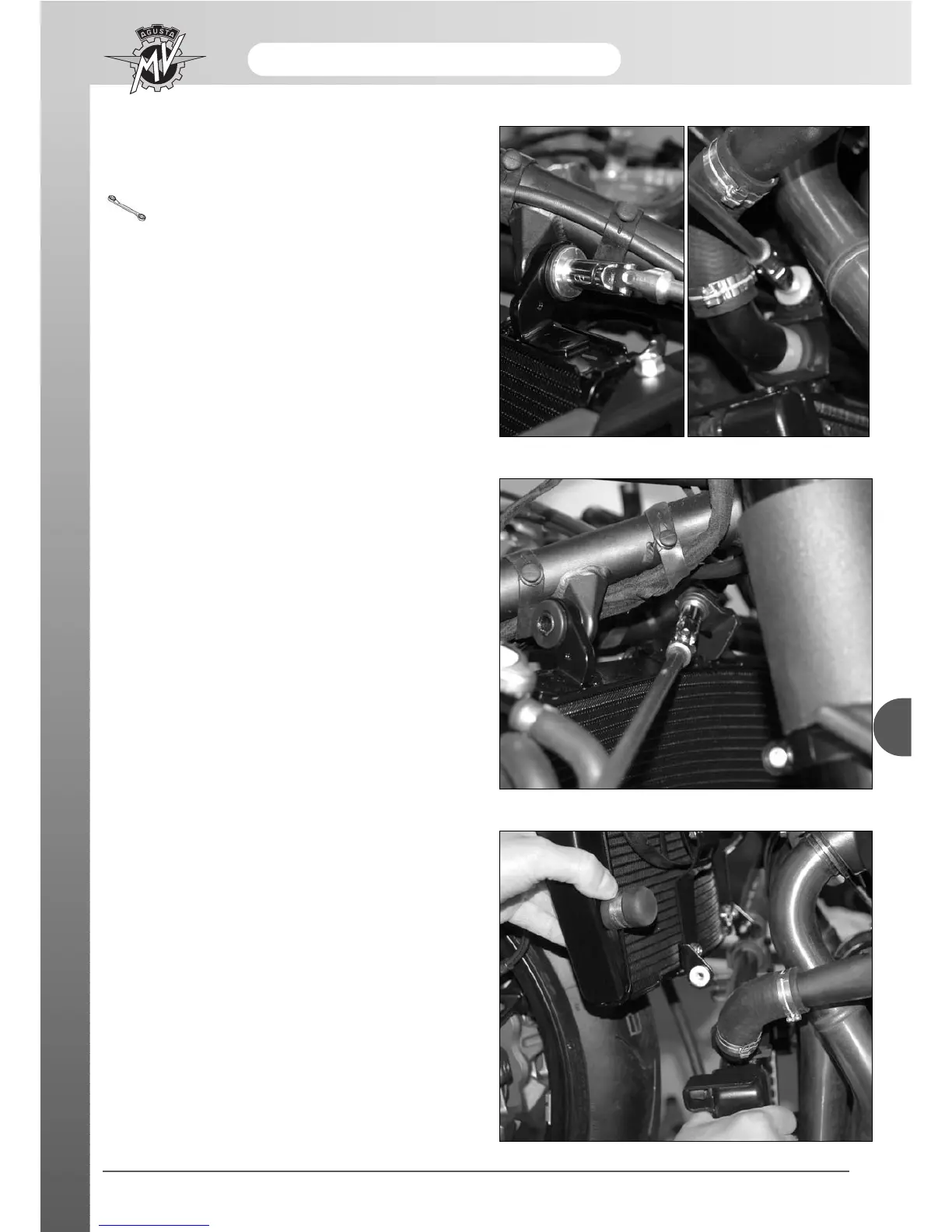

Remove the upper central radiator fixing screw.
Remove the upper and lower fixing screws of the radia-
tor from the left side.
Special tool: CLIC 205 pincers
Holding the upper radiator (water), push the lower
radiator (oil) toward the right to remove the connector
pin.
