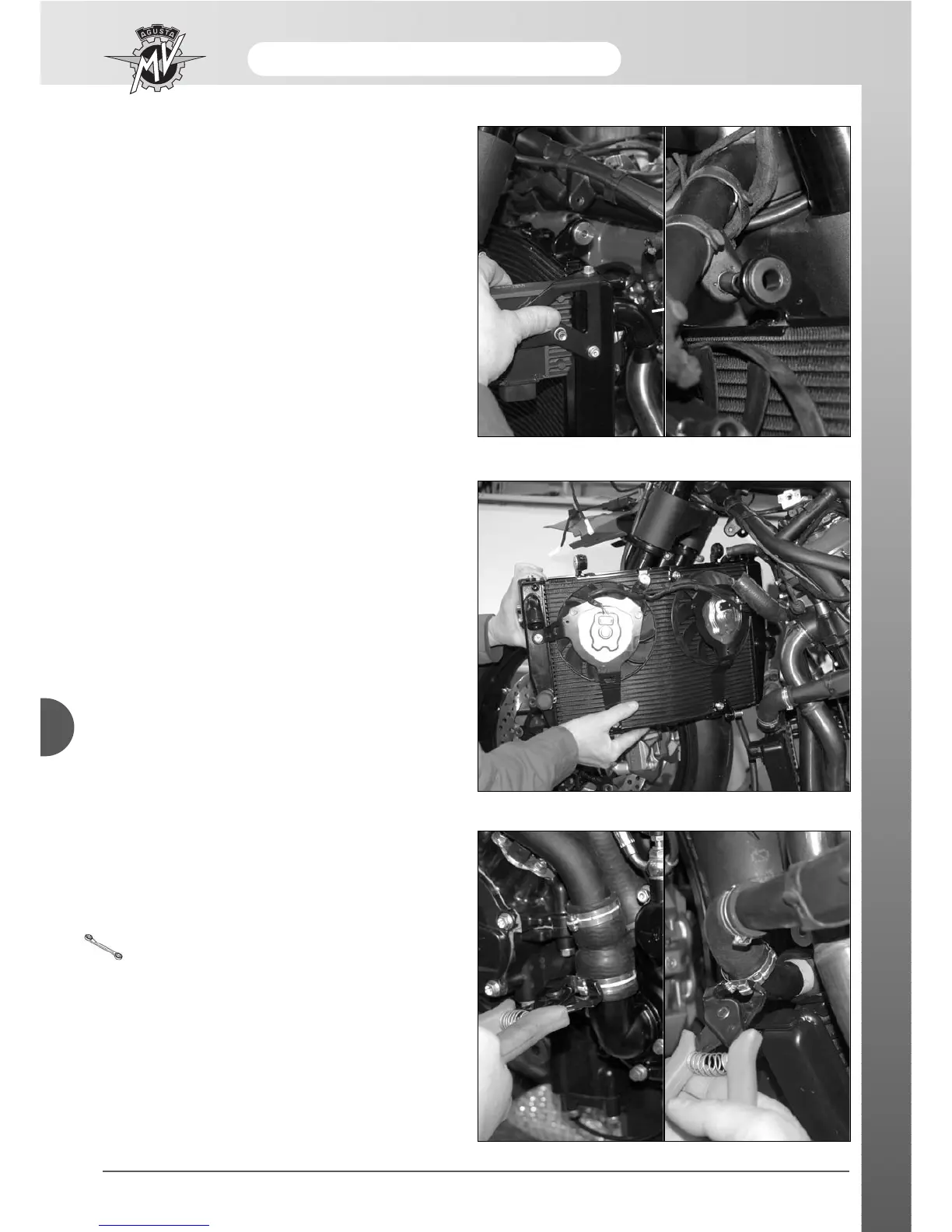

If necessary, to carry out overhauling of the lower
water union tube, remove the two clic clamps at the
end of the radiator filling tube on the left side of the
motorcycle.
Special tool: CLIC 205 pincers
Cooling system
L
- 8 -
Lower the left side radiator and push it toward the right
to remove the upper support pin.
Extract the radiator from the left side, turning it as
shown in the figure.
