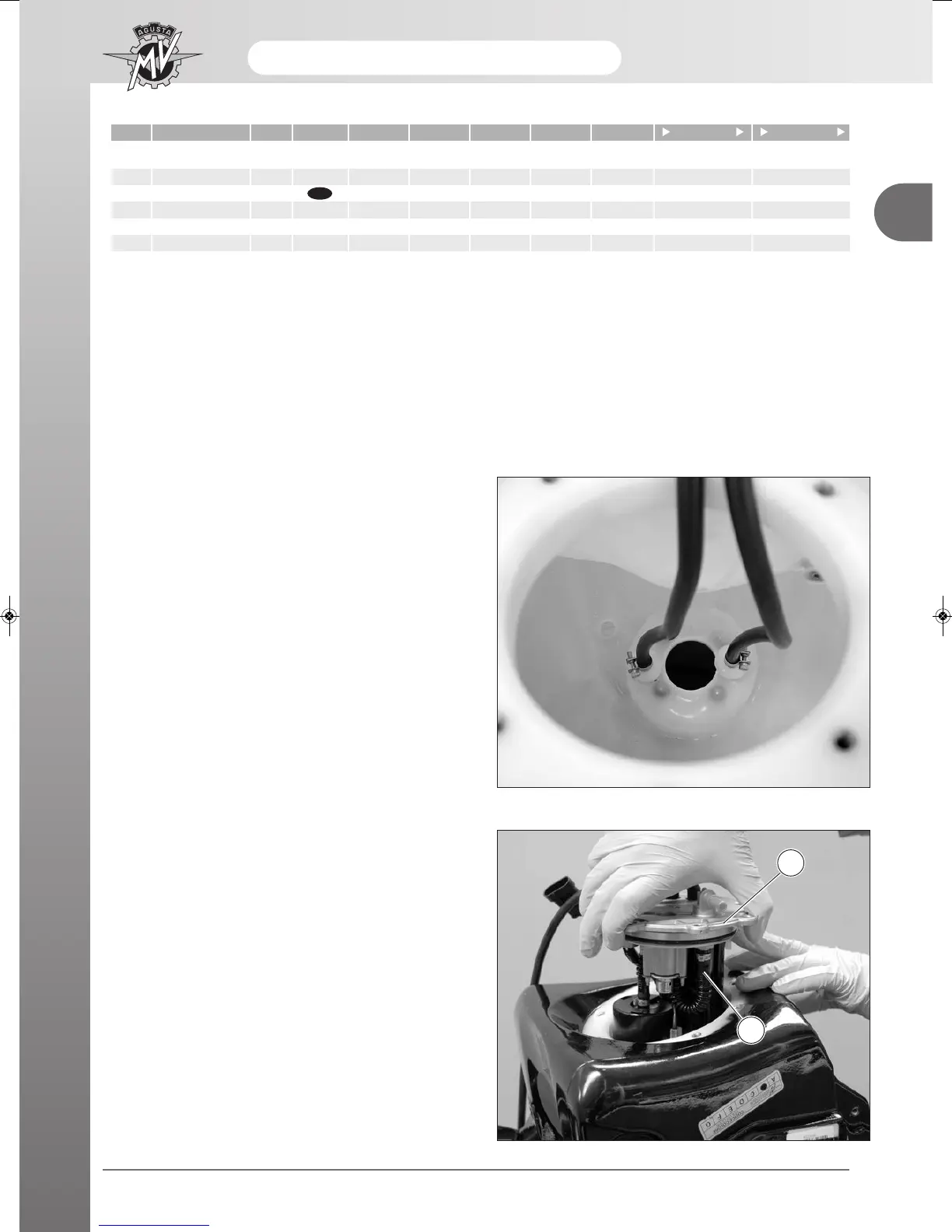

Fuel flange unit assembly
Before starting the assembly of the flange to the fuel
tank, check the condition of the two small overflow
tubes connected to the lower part of the fuel filler cap.
If these components are not in perfect condition, sub-
stitute them and position the band fasteners as shown
in the figure.
1 8000B1958 1•••••
1 8A00B1958 1•••••
2 8000B4276 1•••••
3 8000B4277 1•••••
4 8000B4278 1•••••
N. Code Q.ty Note F4 S F4 FT F4 MY13 F4 R F4 RR I FRAME I I ENGINE I
USA
Position the flange unit (1) inside the fuel tank.
Check that the two small overflow tubes (2) remain out-
side of the fuel tank.
1
2
